    Good evening gentlemen,

    I have just finished a build of the "Big Fitz" on my home forum www.kartonbau.de.

    Maybe you are also interested in this building report, because the ship may be well known to the US audience.

    So if you are interested in an english report, give me a short notice. If not necessary, just be honest and say no.

    regards,

    Korvette
  2. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    Hi, Jorg! Didn't recognize you at first, as Korvette....

    I have admired your JSC build for a while, although I had not been able to check in as much as I would have liked.

    I think it would be a great idea if you showed us your build thread here, if you don't mind taking the time away from modeling to translate the build thread. I for one would love to see your work here more often.

    Cheers!
    Jim
  3. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,544
    Likes Received:
    0
    Here, here! I second the motion!

    It would be wonderful to see anything you build, your work is a delight to watch!

    If you have the time to post, we have the time to read and awe over the pictures!:grin:

    Russell
  4. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0
    OK, if you want to...:roll:

    But again, its not a report in progress, because the model is already finished.

    The reason why I post also on cardmodel.net is quite simple. I want to gain more experience in English. So If you want to help me a little bit, please correct my posts.:)

    And here we go...

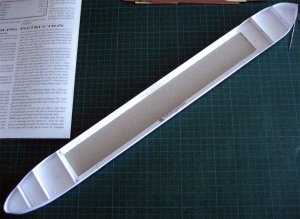

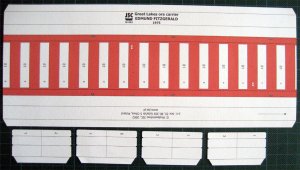

    Middle section

    Parts: 5 / 5

    Attached Files:

    • 1.JPG
      File size:
      133 KB
      Views:
      280
  5. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

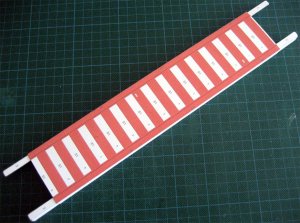

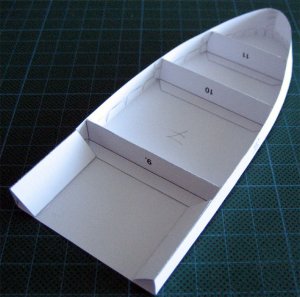

    The hull is constructed in an interesting way - triangular shaped connections for the different hull parts.

    Attached Files:

    • 2.JPG
      File size:
      151.7 KB
      Views:
      271
  6. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

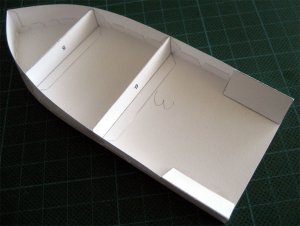

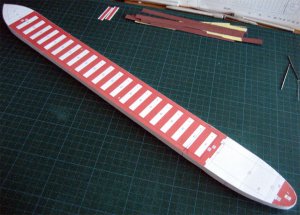

    The whole construction is surprisingly stable...

    Attached Files:

    • 3.JPG
      File size:
      199.5 KB
      Views:
      258
  7. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

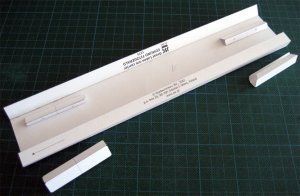

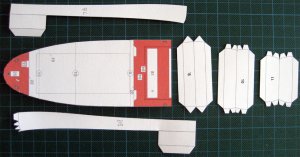

    Front section

    Parts: 5 / 10

    Attached Files:

    • 4.JPG
      File size:
      163.7 KB
      Views:
      244
  8. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

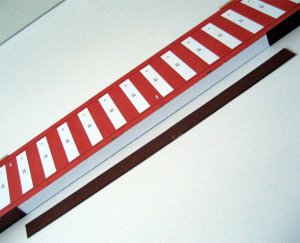

    Typical JSC with the connection parts...

    Attached Files:

    • 5.JPG
      File size:
      104.2 KB
      Views:
      266
  9. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0
    Therefore, the connection is realy simple and good to handle.

    Attached Files:

    • 6.JPG
      File size:
      189.8 KB
      Views:
      249
  10. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0
    Back section

    Parts: 6 / 16

    Attached Files:

    • 7.JPG
      File size:
      131.2 KB
      Views:
      235
  11. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

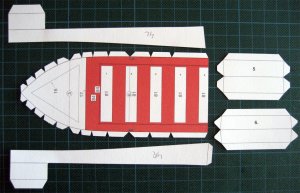

    Production process as known so far...

    Attached Files:

    • 8.JPG
      File size:
      184.6 KB
      Views:
      112
  12. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0
    And this easy way we got a hull construction.

    Attached Files:

    • 9.JPG
      File size:
      192.3 KB
      Views:
      96
  13. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

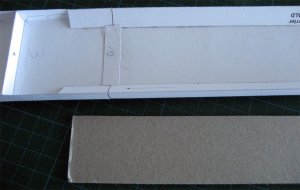

    To make it more stable, you have to add a 1mm carboard stripe in the middle hull section.

    Attached Files:

    • 10.JPG
      File size:
      123.6 KB
      Views:
      94
  14. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0
    How to do it. The dimensions in the english instructions are wrong. They are in mm but have to be in cm...:wink:

    Attached Files:

    • 11.JPG
      File size:
      189.4 KB
      Views:
      96
  15. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

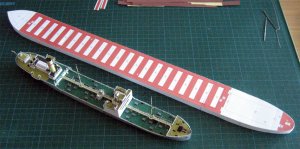

    The hull and my finished oiler Karpaty (also JSC) to compare the dimensions.

    Attached Files:

    • 12.JPG
      File size:
      194.7 KB
      Views:
      109
  16. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

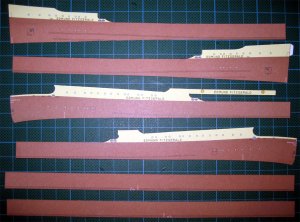

    Hull plates

    Parts: 6 / 22

    Attached Files:

    • 13.JPG
      File size:
      162.5 KB
      Views:
      89
  17. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

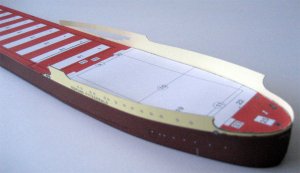

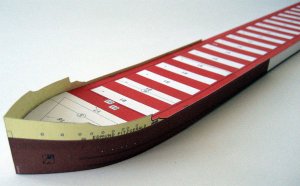

    The bow. Due to the hull construction, its quite easy to assemble these parts.

    Attached Files:

    • 14.JPG
      File size:
      142.9 KB
      Views:
      97
  18. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0
    The next step is the rear section.

    Attached Files:

    • 15.JPG
      File size:
      143.3 KB
      Views:
      90
  19. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0
    The middle section parts are longer than necessary and you have to fix them as it´s needed. The rest is cut away.

    Attached Files:

    • 16.JPG
      File size:
      142.3 KB
      Views:
      88
  20. korvette

    korvette Member

    Joined:
    Oct 9, 2005
    Messages:
    603
    Likes Received:
    0

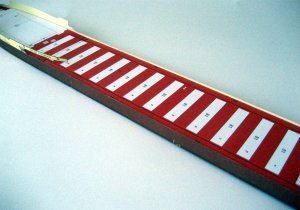

    After clean work, you have a perfect hull.

    Attached Files:

    • 17.JPG
      File size:
      190 KB
      Views:
      88
