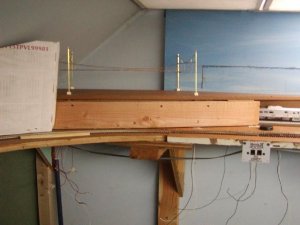

    I'm in! I actually started this a couple months ago, but have a ways to go. I have to disguise where my west end main line goes thru a wall to staging in another room. The stairs to the basement start down over the far end of the room. I decided to model the NE corridor asa dummy scene. Here is a picture of early stage progress. I've purchased the catenary towers and am checking placement.

    Attached Files:

  2. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0
    And this photo of the CNJ being crossed by the Pennsys corridor was the inspiration for the scene.

    Attached Files:

  3. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

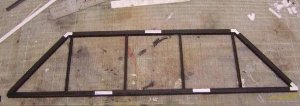

    I became concerned that where the corridor tracks hit the backdrop was going to be impossible to make look ok. It was suggested that the busyness of a truss bridge replacing the concrete deck bridge would help disguise this. So I took the superstructure of a CV bridge I built for another location and used it to see how it would look. It would need to be shorter and skewed, but I thought it was a good idea. Here is the mockup.

    Attached Files:

  4. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

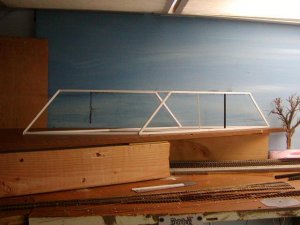

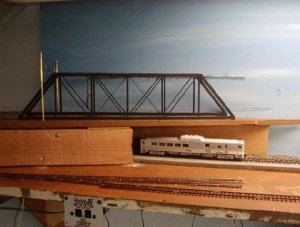

    So I built a quick mockup prior to committing myself out of strip styrene to the size I would need.

    Attached Files:

  5. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

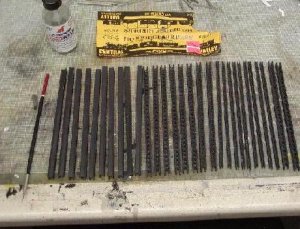

    I bought some CV girder kits and started making girders.

    Attached Files:

  6. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

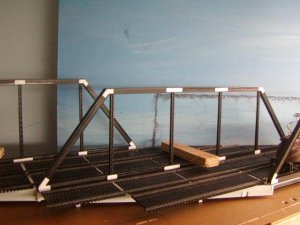

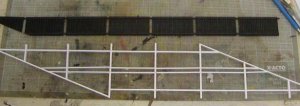

    And here is one of the trusses (?) I made molds from leftover CV bridge kit parts for the splice plates so I could cast a bunch. I was going to make four of these, to make two double track bridges. I wound up only making three, and using the one in the center for both bridges. Not at all sure if this is kosher, but was being lazy!

    Attached Files:

  7. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0
    I then started on a frame and used CV bridge ties.

    Attached Files:

  8. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0
    I did a lot of test fitting. Basically this was in substitution for knowing what to do! This is how things were shaping up.

    Attached Files:

  9. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

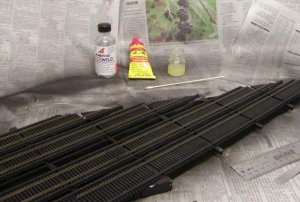

    It was time to glue rail down on the ties. I used Barge cement thinned with Ambroids Pro Weld and applied it to the bottom of the rail with wooden q tips. I was starting to like the results.

    Attached Files:

  10. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

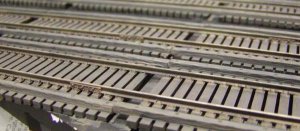

    Just a close up shot of the track prior to installing guard rails.

    Attached Files:

  11. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0
    I had of course attached the deck of the bridge to the roadbed for the adjoining section, using epoxy. The whole deal needs to be removable for access to the turnouts beneath it. It was time to measure out where the catenary bridges would be in relation to the truss bridges. This is the scene on the workbench as I tested fit.

    Attached Files:

  12. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

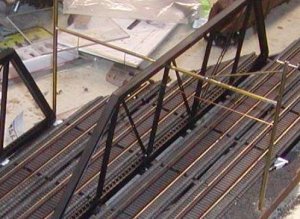

    This shot shows the guard rails have been installed, and I've modified the catenary bridge to fit within the truss bridge.

    Attached Files:

  13. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

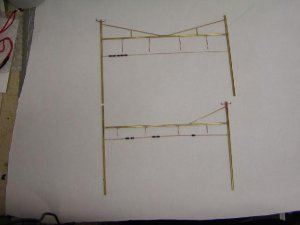

    This photo shows one catenary bridge built as intended, and the one I modified to fit into the bridge.

    Attached Files:

  14. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0

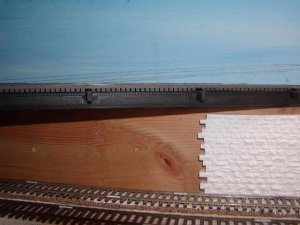

    Now I've added rivit detail to the bridge frame, and I've started making castings of the stone wall. I needed 10 of these wall sections so elected to buy just one and make plaster copies. You can also see the rail joint bars glued on the flex track. Oh, I used n scale cork roadbed on top of homasote, on top of plywood. I placed the corks edges where they needed to be and filled in the center gap with spackle.

    Attached Files:

  15. cnw1961

    cnw1961 Member

    Joined:
    Jan 8, 2006
    Messages:
    936
    Likes Received:
    0
    Very well done, can’t wait to see your finished NE corridor. How did you do the rivets on the bridge frame?
  16. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Looking good Gary. :thumb: :thumb: Can't wait to see some more progress pics.:wave:
  17. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,441
    Likes Received:
    0
    look's good gary wish i had know that CV made the girders the last truss i built i had to make my own girders what a job
  18. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Welcome to the battle.
    Got a great start. Whats up next?
    I have a question though. Not being a traction fan..Wouldn't they have hung the cantanary on the top crossmembers? Instead of having a seperate cantanary bridge?
  19. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0
    Thanks folks. Kurt, a friend and fellow modeler gave me some sprues of material that he in turn had received from another modeler, a custom builder I believe. He was closing up shop and gave Jim a lot of material, which I used some of here. Most of the material was in a scale too large for HO use. There were several lengths of angle with rivets which I used top and bottom of the main girder. Also, on a sheet there were rivit patterns for various configurations of rivets, one of which I chose for use around each of the crossmembers. So, sorry, but I have no new easy way to add rivets!

    88, I have no idea! The skew and length of the bridge allowed use of that catenary bridge clear of the frontmost and rearmost trusses, going thru the center of the middle one. A photo of that will come along. I did use the truss bridge top members to hang insulators to support the catenary itself as well, as I needed to support the ends near the backdrop where there is no catenary bridge, just a post in the front, just clearing the backdrop. Again, future photos will show what I mean.

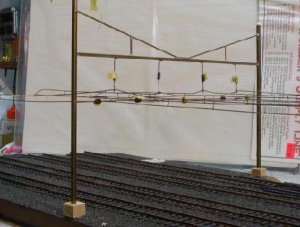

    This photo shows I've attached the catenary to the bridges. What an ordeal! I started by soldering but had a lot of trouble with it, not being able to get nice clean joints. It was difficult to keep the parts together while soldering, and I also was having trouble with solder flow. I've never been great at sodering, but this was particularly difficult. So, since this is a static model which will never see operation, I simply super glued the parts together. I now have great admiration for those who build working catenary!
