FROG 3/4 Tactical Missile Tracked TEL in 1:35

Discussion in 'Armory & Military' started by Fishcarver, May 21, 2006.

  1. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    The Suspension Builds....

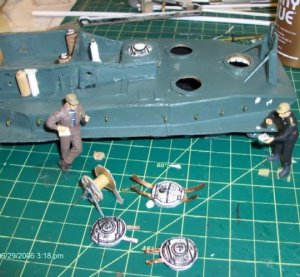

    Now the fun begins: torsion bars, road wheels, drive sprockets, tracks, etc.....

    Attached Files:

  2. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

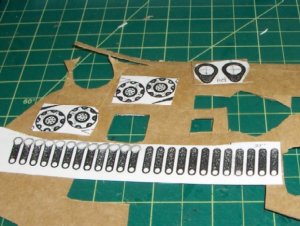

    Getting on track

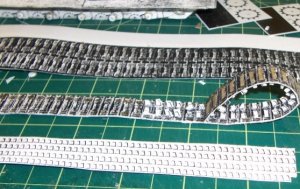

    I decided to get one of the repetitive (boring) tasks out of the way and fabricate the tracks.

    In 1:35, it is far too tedious to build these up link by link. So, I took the kit tracks, printed on 110# bristol, and scored them across the links.

    Then, I folded them over with a strip of double-sided plastic carpet tape in the middle.

    Next step was to punch out all the holes for the drive sprockets, and add cleats and a couple of hundred grousers taken from the rescaled Answer PT-76.

    Attached Files:

  3. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

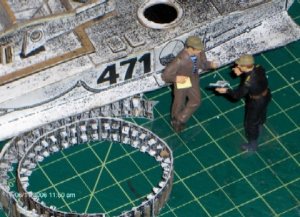

    The result is a quite flexible track, which ought to be "close enough for government work" once it is painted.

    I hope that the TP Boyz don't get in the way.(Looks Like Sr. Sgt K is already starting an argument!) Production has been going smoothly until now......

    Attached Files:

  4. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Adding bits to the hull.....

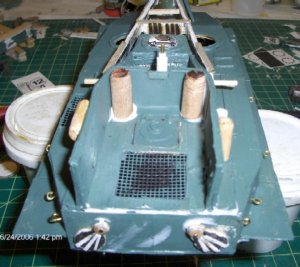

    The tracks are done, except for painting. The hull has been primed (this is not the final colour) and we are working on adding numerous detail bits to the hull: hydraulic cylinders, "plumbing", grab irons, rings and brackets.

    Attached Files:

  5. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Here's another view. Keep outta the way, boyz..........

    Attached Files:

  6. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

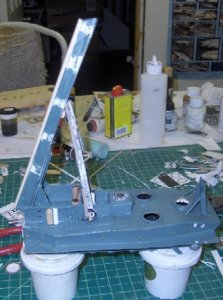

    On to the Business End!

    Having done enough "damage " in adding bits to the hull, we move on to the launcher assmbly. The ABC model is a little inaccurate, so we have to do some scratchbuilding (what else is new? :) )

    Attached Files:

  7. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Here's another view:

    Attached Files:

  8. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    If the Sarge Screams in the Factory, Does Anybody Care?

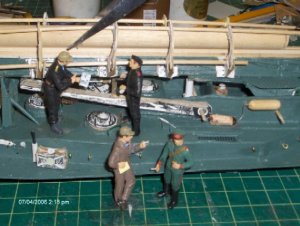

    Here we see another view of the launcher assembly. Work is going ahead on the transport cradle, which will be operational. The big wooden dowel approximates the diameter of the FROG rocket. Note Sr. Sgt. K, tuning Sergei up (again)........

    Meanwhile, the zampolit smokes and jokes with his buddy from Moskva.

    (I have left the suspension and tracks off for now, as the model still has to be handled a lot for the next while).

    More to come.....

    Attached Files:

  9. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

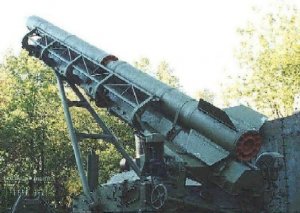

    A Reference Picture

    ...from fas.org.

    Attached Files:

  10. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Type o' Dung? FROG!!!

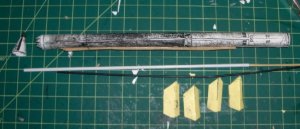

    Here, we start "rollin' the rocket":

    Attached Files:

  11. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

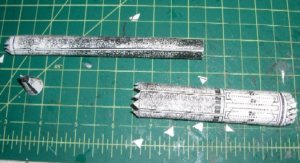

    We have taken some liberties with the ABC kit to authenticize the missile, mainly by separating the body into two parts and joining them as per the prototype. The exhausts from the upper motor are canted outward, so as not to destroy the lower stage.

    Attached Files:

  12. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

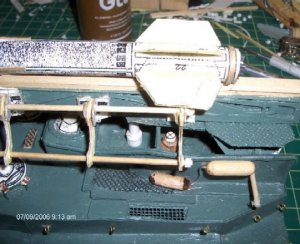

    The fins are attached. There are 4 fins on the LUNA-M, not 3 as provided in the kit.

    Attached Files:

  13. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

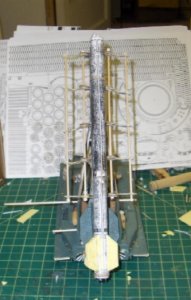

    The rocket (sans nose cone) on the TEL. The transport cradle is in the open (firing)position.

    Attached Files:

  14. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Here is the cradle shown closed (photo is out of order): Yes, the cradle is still incomplete. I need to add cross-bracing.

    Attached Files:

  15. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Still lots more fun to come. Does anybody have any markings for Soviet tactical nuke warheads? ;-)

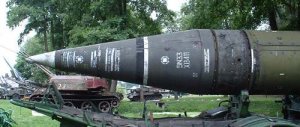

    Pictured below: 9N33 nuke for SCUD B

    Attached Files:

  16. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

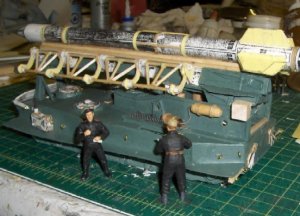

    Launcher Complete

    ....and the rocket is not far behind.

    Attached Files:

  17. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Here's another view:

    Attached Files:

  18. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Now the fun begins......

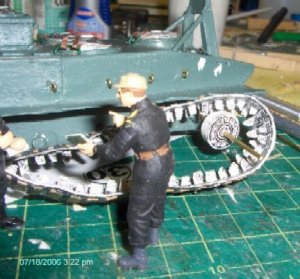

    Final assembly of the suspension. If I had this to do over again, I would have installed brass rods right across the chassis for the drive sprockets and idler wheels right from the get-go........Live and learn!

    Attached Files:

  19. Stev0

    Stev0 Active Member

    Joined:
    Jan 30, 2006
    Messages:
    2,170
    Likes Received:
    0
    I think I saw a plastic version of this featured in a latest modeling magazine a week ago.
  20. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Steve: GLENCOE had one, once upon a time. But I think it's out of production. Besides, this is a heck of a lot more fun than slapping together a plastic kit!!
    Jim
