FROG 3/4 Tactical Missile Tracked TEL in 1:35

Discussion in 'Armory & Military' started by Fishcarver, May 21, 2006.

  1. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

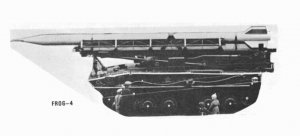

    The next "Red Banner Tractor Plant" project will be a kitbash of a FROG ("Luna M") missile tracked TEL vehicle. For this project, the TP Boyz are going to use a rescaled Czech ABC 1:44 model, plus parts from a rescaled Answer PT76-B; with the whole project being built up in 1:35 scale, and detailed as much as possible......we hope.

    Attached Files:

  2. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    847
    Likes Received:
    214
    Interesting project!
    And you have to really like small parts :)
    1:35 is really small for adult fingers....
  3. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Hull Construction

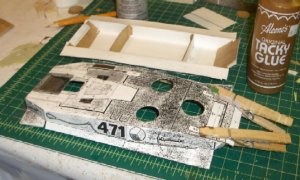

    We have started with the hull of the scaled-up ABC model, laminating it to 0.5 mm stock.

    Attached Files:

  4. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Here's another view:

    Attached Files:

  5. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,543
    Likes Received:
    0

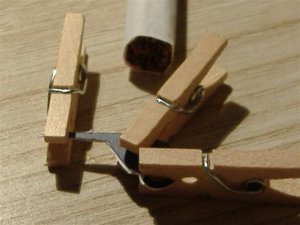

    Clothes pins

    Hey, you like clothespins too eh!

    I found these miniture ones at a hobby shop. I got a pack of 100 for about $2
    They really come in handy for the small stuff.

    Shown with the end of a cigarette for scale purposes.

    Attached Files:

  6. Stev0

    Stev0 Active Member

    Joined:
    Jan 30, 2006
    Messages:
    2,170
    Likes Received:
    0
    Wow!

    I'm not sure if I'm comfortable with the sudden increase in military building the 'Ruskies' are up to.

    :p
  7. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,543
    Likes Received:
    0
    As long as everything is made from paper, I think it will be OK! :twisted:
  8. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Test of Strength Dept.

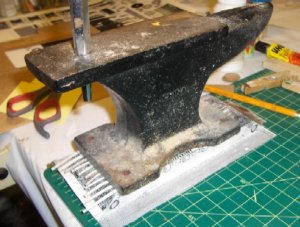

    See below! (Here, we are pressing the lower hull while the reinforcing ribs and the sponson laminations dry. The small anvil weighs about 10 lb (5kg) )

    The fit (so far) of the ABC model looks pretty good, even scaled up. More to come shortly......
    Jim

    Attached Files:

  9. Bluenoser

    Bluenoser Member

    Joined:
    Feb 16, 2006
    Messages:
    191
    Likes Received:
    0
    Maybe its paper on the outside.....but that's some pretty heavy duty armor thats going to be hiding on the inside.:razz:
  10. Amazyah

    Amazyah Senior Member

    Joined:
    Mar 1, 2006
    Messages:
    2,543
    Likes Received:
    0
    Now that Gentlemen, is how you press a part! :twisted:
  11. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    The Customer is always Right.....

    ....especially if he happens to be a Big Man from Moscow. Sergei and the Senior Sgt. listen up, while the Sr. Sgt consults the big book.......

    Attached Files:

  12. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    "The Factory Floor"

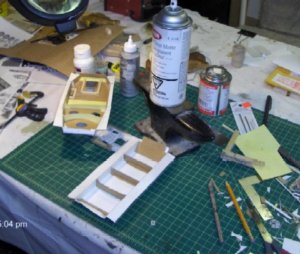

    Here is an aerial view of "The Tractor Plant". It has actually been messier......

    Attached Files:

  13. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Never too early to start those details!

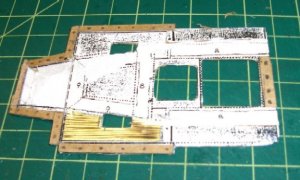

    My plan is to install working hatches and to replace all details printed on the model in 2D with 3D parts. Here, I am using fibreglass insect screening to make the grille over the engine compartment. It does a great job of this in 1:35 scale. It would probably be useful for non-skid matting in 1:25 as well!

    Attached Files:

    • tel6.JPG
      File size:
      81.9 KB
      Views:
      275
  14. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

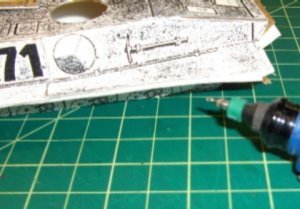

    Mounting holes for various mechanical bits are drilled using a small rotary tool.

    Attached Files:

  15. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Spray Coating

    Everything gets a first coat of clear matte spray. I am experimenting with Krylon low odour matte. We'll see how it works!

    Attached Files:

  16. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Inside Job!

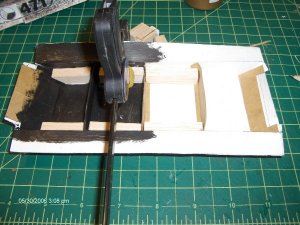

    This model has no interior, so I use matte black paint to darken the interior that might be visible fthrough the open hatches. I also install 5/16" balsa blocks along the attachment point of the suspension.

    Attached Files:

    • tel9.JPG
      File size:
      82.8 KB
      Views:
      282
  17. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

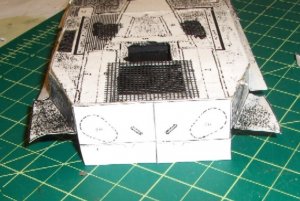

    here is a view of the rear of the vehicle, showing the engine grille and the location of the water jets for amphibious operation. These were carried over from the PT76 tank on which this TEL was based.

    Attached Files:

    • tel7.JPG
      File size:
      93.8 KB
      Views:
      274
  18. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Here, we are starting work on the superstructure. First, the deck. I have used my pyrographic pen to score a piece of card to simulate non-skid matting. Locations for rivets have been marked. These will be added later (using Grandt Line rivets)

    Attached Files:

  19. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

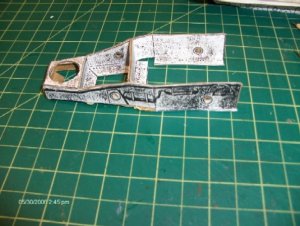

    Here is the start of the housing for the erector-launcher mechanism. The fit of these ABC models is excellent!!

    More to come!
    Jim

    Attached Files:

    • tel8.JPG
      File size:
      77.1 KB
      Views:
      281
  20. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    The superstructure has been attached to the hull.

    Attached Files:
