Free Model #3 - HMS Dreadnought by Mark_1984

Discussion in 'Ship & Watercraft Models' started by Mark_1984, Feb 19, 2008.

  1. redhorse

    redhorse Member

    Joined:
    Dec 28, 2007
    Messages:
    160
    Likes Received:
    0
    Oooh, I like the cotton bud mast idea. It looks good and simple too!

    Very nice looking ship.
  2. Millenniumfalsehood

    Millenniumfalsehood Active Member

    Joined:
    Mar 17, 2007
    Messages:
    1,610
    Likes Received:
    94
    Very nice looking build so far! Seeing as how the camera adds flaws that aren't really there(wink, wink!), this model must look ten times better in real life. :thumb: This thread will come in handy when I'm building my own HMS Dreadnought kit. :)
  3. Mark_1984

    Mark_1984 Guest

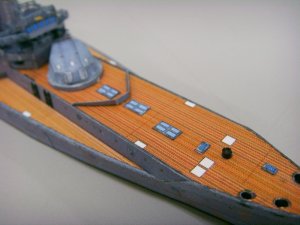

    Slow progress as work has got in the way. ANyway, I've got all the barbettes fitted, and the forward breakwater and a bollard fitted to the foredeck.

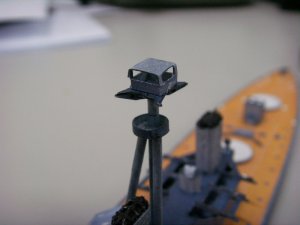

    The lookout tower at the top of the main mast is also done. This was a tricky little devil, and came out OK, but not great. The aft mast is proving a bit of a poser as I can't find any dimensions for it ???

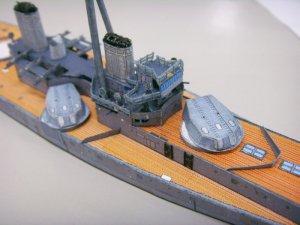

    I've also got two of the turrets done, and put in place. Still get the barrels to do (talk about stating the obvious !)


    With the end of the competition coming in a few days, it's obvious that I'm not going to get the model finished in time. Oh well, never mind, I shall continue the build and this thread of course.
  4. Nemesis7485

    Nemesis7485 Member

    Joined:
    Aug 13, 2007
    Messages:
    123
    Likes Received:
    0
    She's looking great, Mark.

    You still have time to finish. Just keep the coffee going and ignore the urge to sleep. Where's yer dedication, man?
  5. KCStephens

    KCStephens Member

    Joined:
    Sep 19, 2007
    Messages:
    144
    Likes Received:
    0
    announce1Go Mark! announce1Go Mark! announce1Go Mark! announce1GO!

    announce1Just Keep building!

    announce1cut - roll - glue - cut - roll - glue - cut - roll - glue...

    You don't have too much more to go.

    YOU CAN DO THIS!!!
  6. outersketcher

    outersketcher Illustrator, Tinker

    Joined:
    Apr 4, 2006
    Messages:
    114
    Likes Received:
    0
    Who needs sleep anyway! Here's to wishing you luck and strength to finish the model in time.
  7. Mark_1984

    Mark_1984 Guest

    Thanks for the words of encouragment guys..... I'm busy warming up my fingers as I type sign1

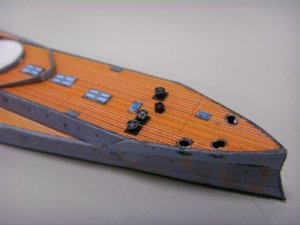

    I've killed the last few white dots on the fore deck. Just need to apply the anchors in this area now.

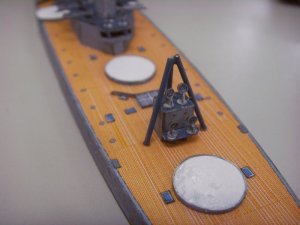

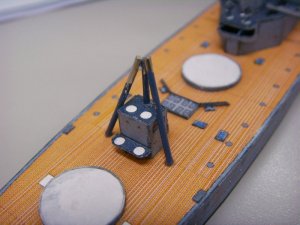

    The rear tripod just didn't seem to have any dimensions, so I did what any true perfectionist would do. I had a butchers at the photos and guessed that it was slightly over double the height of the deckhouse overall. Seems to have come out OK. The tripod is made from bits of paper clip wire, painted grey. I just need to file the top flat so that the platfrom stays level.

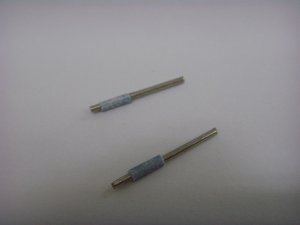

    Guns !! As you all know, I can't roll a tube for toffee. I tried, and failed, yet again !! Plan B - I've used bits of paper clip, and wrapped a bit of paper round them to simulate the step in the barrel. They will get painted grey later.


    Here they are in the turret, and on the ship. However, it was the first attempt and a bit scrappy, and the turrets were also not up to the standard I was aiming for. So these are just here to give an idea of what it will look like eventually.


    Finally for today, here are the search lights on the rear platforms. I think this completes all the flaming search lights - they are a pain to do !!


    Whet's left ? 5 turrets, 1 lookout platform, 2 masts, 14 AA guns, tender boats, and anchors........ I did think about finishing off the front, and only photographing that for the comp.... but nobody's daft enough to fall for that trick sign1
  8. Lex

    Lex Dollmaker

    Joined:
    Dec 1, 2006
    Messages:
    1,930
    Likes Received:
    0
    Finally the barrels! It's getting there Mark!
  9. Nemesis7485

    Nemesis7485 Member

    Joined:
    Aug 13, 2007
    Messages:
    123
    Likes Received:
    0
    Excellent work, Mark!

    Here, have another coffee, mate. ;)
  10. jaffro

    jaffro Long term member

    Joined:
    Jun 18, 2007
    Messages:
    738
    Likes Received:
    0
    Looking good Mark! I've been using the cotton bud method myself the last couple of days in an attempt to finish off my Interceptor. Partially because I too cannot roll small tubes to save myself, and partially because I just plain lost the parts sheet and can't print another. :D

    Never say never, you CAN finish this before the end date of the comp... here, have ANOTHER coffee. :D
  11. Mark_1984

    Mark_1984 Guest

    Well, I had so much coffee, I couldn't cut straight !!!!
    I did get the rear tripod and lookout post done, but left my camera at work (Doh !!)
    Unfortuantely I'm going to have to admit defeat. I'm off on hols tomorrow, although, coming down of the coffee high, I shall probably spend all week sleeping !!!

    I've now decided that my model is finished, depicting the Dreadnought during her build, in the later stages of outfitting sign1
    (did the rules say you had to finish the model ;))

    Joking aside, this is a great competition, and good luck to everybody who entered. Lots of models finished that are far better than mine, so I'm not really too disappointed about not finishing.
  12. Lex

    Lex Dollmaker

    Joined:
    Dec 1, 2006
    Messages:
    1,930
    Likes Received:
    0
    C'mon, there's still time to make a construction diohrama!! :D
  13. Mark_1984

    Mark_1984 Guest

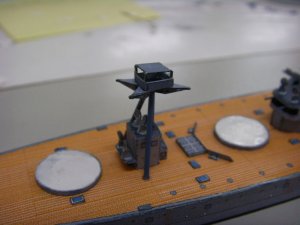

    I'm still plodding on. Here is the rear lookout tower attached.

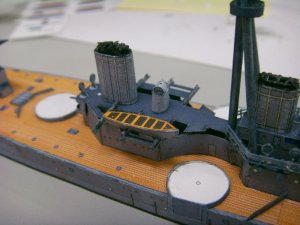

    I've made a start on the launches. These are difficult to do. I tried gluing the deck to the hull sort of in the middle, and then pulling the bow and stern in, but this didn't work very well. Plan B was to make the hull and then glue the deck to it. This proved much more successful.

  14. outersketcher

    outersketcher Illustrator, Tinker

    Joined:
    Apr 4, 2006
    Messages:
    114
    Likes Received:
    0
    still enjoying this thread... I went back and re-read the whole ladder construction part.

    ...whoa....

    good stuff.
  15. cgutzmer

    cgutzmer Guest

    Looking super! Thanks for sharing the build :)
    Chris
  16. Mark_1984

    Mark_1984 Guest

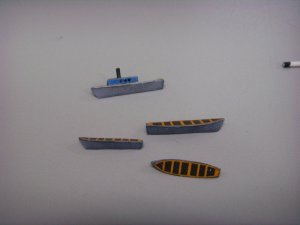

    A little more slow progress. I've finished the four launches now. Didn't really enjoy these much. Too small and tricky.....

  17. Soaring

    Soaring Middle School Student

    Joined:
    Nov 7, 2007
    Messages:
    957
    Likes Received:
    0
    Whoot! Still going strong hm? Nice job Mark, those boats are fantastic ^^
