Forney Bash To Saddle Tank

Discussion in 'On30 Forum' started by Quarryman, Jul 10, 2010.

  1. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0
    Hi all :thumb::thumb:

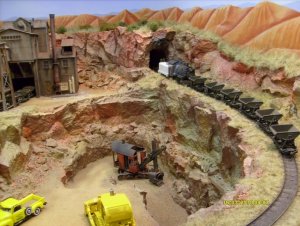

    My Forney would'nt play nicely on the very tight radius on my mining
    layout, infact it refused to stay on the track at the best of times. wall1

    So it was sent back to Baldwin with instructions to turn it into a decent
    Mining Loco.

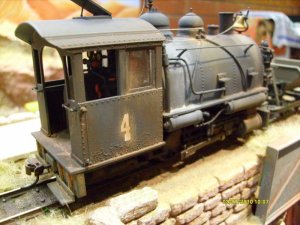

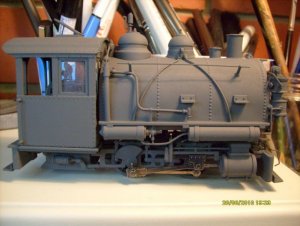

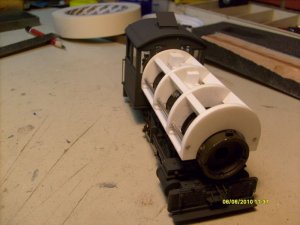

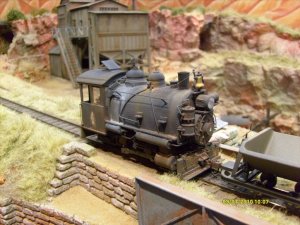

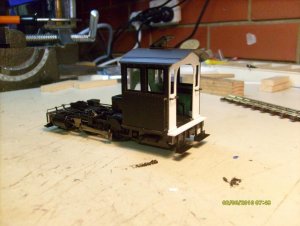

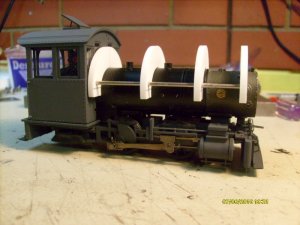

    After some serious chop chop surgery in the Baldwin Shops it was returned
    to Sludge Pit Minerals as an 040 Saddle Tank. :twisted::twisted:

    :wave::wave: Joe.

    Attached Files:

  2. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0

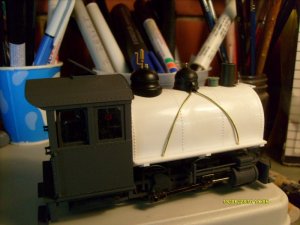

    More Piccies: :thumb::thumb:

    Attached Files:

  3. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0

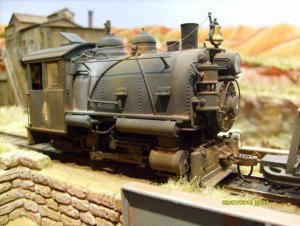

    And some more: sign1

    Happy to report the loco will now handle the tight radius track.

    :wave::wave: Joe.

    Attached Files:

  4. Hot Cinder

    Hot Cinder New Member

    Joined:
    Dec 19, 2008
    Messages:
    28
    Likes Received:
    0
    that is a great looking locomotive!

    Philip
  5. Doctor G

    Doctor G Active Member

    Joined:
    Sep 2, 2008
    Messages:
    1,202
    Likes Received:
    98
    :thumb:Wow. That is a very nice looking locomotive. I am impressed!!! I would like to do the same in the future for my Haiti Sugar Hauler.

    The forney is a sweet runner and in a short wheel base form like yours is a fantastic adaptation!!!

    Thanks for the piccies Mate.
    Dr Tom:thumb::thumb::thumb::thumb:
  6. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0
    Hi Guys, thanks for the positive comments. :thumb::thumb:

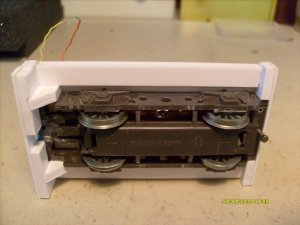

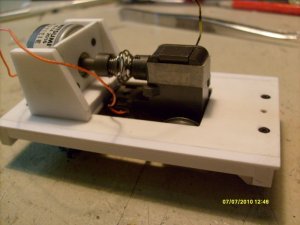

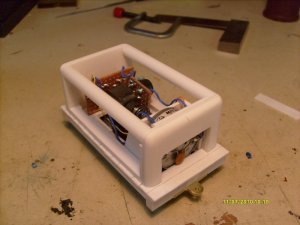

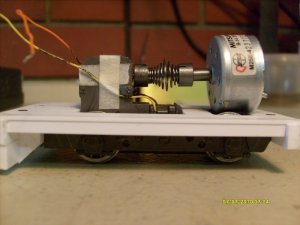

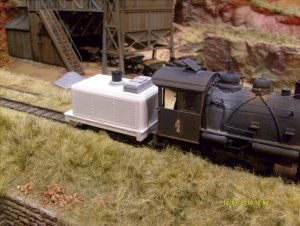

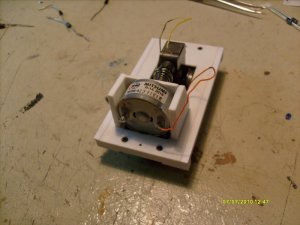

    I'm actually in the middle of building a motorized Tender for this Loco
    due to some very cruel grades on the layout up towards the top Tunnel.

    I have loaded the Loco Saddle Tank with steel balls set in epoxy to add
    plenty of weight but the wheels still slip when pulling a train.

    I think the Bachmann Wheels are made of some kind of slippery steel.
    Has anyone else noticed this :confused::confused::confused:

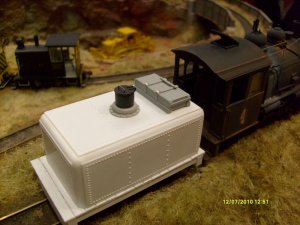

    The Tender is not finished yet but runs very nicely.
    Had to slow it down with a diode bank to match the Loco speed.

    I'll post more Piccies when it's finished.

    :twisted::twisted: Joe.

    Attached Files:

  7. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0

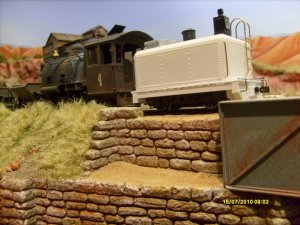

    A few more Piccies :mrgreen::mrgreen:

    Attached Files:

  8. Doctor G

    Doctor G Active Member

    Joined:
    Sep 2, 2008
    Messages:
    1,202
    Likes Received:
    98
    The tender looks great and will add a tremendous amount of "pull power".

    A product "Bullfrog Snot" http://www.bullfrogsnot.com/ has been discussed as the answer to slipping wheels by local modelers. While it has a gross name it might actually work. While much talked about in our own "bull" sessions I have never seen said snot applied to any local yokel's engines.

    Keep up the good work.

    Doc Tom:thumb:
  9. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0
    Hey Tom. :wave:

    Thanks for the link. Have'nt seen that before. Sounds interesting.
    Here in OZ we have Cane Toads which are a declared Pest.
    Maybe we could boil them down into a messy goo and see if it works
    the same as Bullfrog Snot. sign1

    Seriously though, the motorized tender does the trick with the steep grades.
    I have installed some steel weights into it as well.
    Makes the Loco look meaner too.

    Cheers, Joe.:thumb:
  10. Doctor G

    Doctor G Active Member

    Joined:
    Sep 2, 2008
    Messages:
    1,202
    Likes Received:
    98

    Hi Joe,

    Wonder if those Cane Frogs eat sugar cane..........would lead to some very sticky BF snot????

    I do like the motorized tender idea though. I "double head" the Porters on my mini layout to pull a long string of cane cars. A little extra umppphhhh probably helps on these little layouts with tight curves and extreme grades.

    Keep up the good work!!!!!

    Doc Tom:cool:
  11. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0

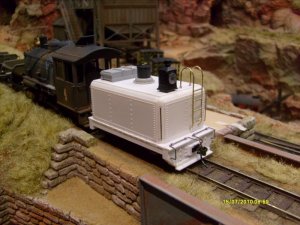

    Ready for paint :thumb:

    Attached Files:

  12. Hot Cinder

    Hot Cinder New Member

    Joined:
    Dec 19, 2008
    Messages:
    28
    Likes Received:
    0
    A buddy of mine has that forney. its terrible stock in the curves, totally unsuited for tight radius.

    Tender looks superb! Is the stone work scratchbuild or is it from New england brownstone?

    All around great scene:thumb:

    Philip
  13. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0
    Hi there Hot Cinder :wave::wave:

    Yeah the Forney is a nice looking Loco but not very well behaved.

    Bit hard to get any New England Brownstone here in OZ.
    The Stone work is scratch built, carved a master in plaster, made a
    Latex mould and cast slabs as needed. :thumb:

    The Rocks are actually done with soft Foam, check out this link:
    http://members.westnet.com.au/mjbd/html/foam_rocks_-_frocks.html

    Cheers, Joe. :twisted::twisted:
  14. S class

    S class Member

    Joined:
    Jun 9, 2009
    Messages:
    101
    Likes Received:
    0
    Doc Tom the cane toads were intorduced to control the cane beatle which eats the sugar cane, unfortunatly no-one bothered to check to make sure the toads could reach the beatle on the higher reaches of the plant wall1wall1wall1wall1 so now we're stuck with two introduced pests
    IIRC the beatle was introduced to control the prickly pear but took a liking to the sugar cane instead

    So I guess that makes three :curse::curse::curse:wall1 pests
  15. Doctor G

    Doctor G Active Member

    Joined:
    Sep 2, 2008
    Messages:
    1,202
    Likes Received:
    98
    Sugar and Frogs

    Whoaaa :eek::eek::eek::eek::eek:that is one ecological nightmare. Lots of critters love sugar including the two legged variety it seems.
    Doc Tom:p

    Attached Files:

  16. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0
    Hi all, :wave::wave:

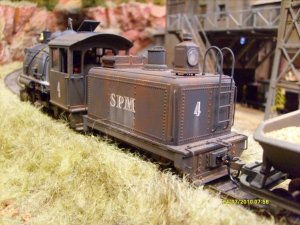

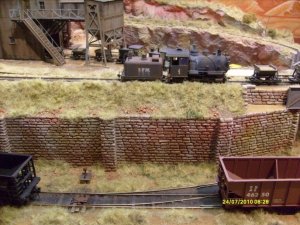

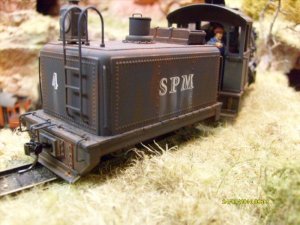

    Loco and Tender are all done. Tender is connected permanently
    and wired in parallel to the Loco making it more or less a 0-4-4-0.
    Very powerful and heavy. :mrgreen::cool:

    Check the piccies and let me know what you think.

    :wave::wave: Joe.

    Attached Files:

    • 002.jpg
      File size:
      198.8 KB
      Views:
      77
    • 026.jpg
      File size:
      199.4 KB
      Views:
      22
    • 061.jpg
      File size:
      186.2 KB
      Views:
      22
    • 063.jpg
      File size:
      182.2 KB
      Views:
      24
    • 088.jpg
      File size:
      203.5 KB
      Views:
      71
    • 078.jpg
      File size:
      199.4 KB
      Views:
      24
  17. Doctor G

    Doctor G Active Member

    Joined:
    Sep 2, 2008
    Messages:
    1,202
    Likes Received:
    98
    That is a very nice and neatly done lokie. I am sure many On30 modelers would love to see what you have done.
    Doc Tom:thumb:
  18. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0
    Hi Tom.

    Thanks for the compliment. I must say, things are very quiet on this forum.
    Is it always like this?
    (Just wondering, being new here)

    Cheers, Joe.
  19. Doctor G

    Doctor G Active Member

    Joined:
    Sep 2, 2008
    Messages:
    1,202
    Likes Received:
    98
    Hi Joe,
    Yes it is quiet....I do not know why. It is a very good site and easy to load pictures to that's why I like using it.

    I think there may have been some cumbersome ways of becoming a posting member a while back and some of the old posts talk about other problems.

    I have never had any difficulties and things have worked pretty smoothly for me.

    I encouraged a couple of my RR club buddies to join and there is a little more activity over on the Logging and Industrial RR sections. You may wish to post over there. You can see there my other sites about my defunct HO C&S RR, my G scale Little River RR and of course my ON30 Haiti Sugar Hauler. My buddy Bill Nelson also has posted considerably there as well about his logging outfit.

    Since your RR is "industrial short line" please feel free to post there and I think you will get a little more feedback. Your modeling is very very good and we could learn some of your fine techniques.
    Doc Tom:thumb:
  20. Quarryman

    Quarryman Member

    Joined:
    Jun 6, 2010
    Messages:
    50
    Likes Received:
    0
    Hi Tom.
    Is there some way of moving posts over to the other sections??

    Cheers, Joe.
