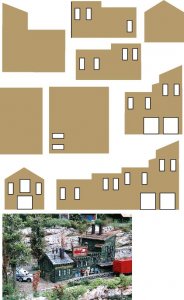

    Here's your freight depot in scale for N. Just print it out and glue the paper to card. Then get some stripwood and glue each piece one by one. The windows are "Grantline station windows(N-scale)

    It is made in the same way as this article I wrote in the Academy.
    http://www.the-gauge.com/forums/showthread.php?s=&threadid=890


    Shamus
    [​IMG]

    Attached Files:

  2. Xaniel

    Xaniel Member

    Joined:
    Jun 8, 2002
    Messages:
    407
    Likes Received:
    0
    how large is the structures, shamus? I've printed it out, and it seems rather small. Perhaps it's my eyes, or perhaps itr was a bad print!
  3. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    It is for N-scale my friend and is 4-1/2" long, if you require it in H0, let me know.
    Shamus
    [​IMG]
  4. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    EW EW EW!!! Mr. Shamus! Can ya post it in HO fer us HOers? I don't need it rat neeeow but I'd love to have it for future ref down the road a little! Ya know we have thread goin' in the scratchy and itchy forum:

    Plans fer custom built structures Thread

    :D :D :D

    TY...

    BTW: Luis, didja just print it rat off the browser? It's a jpg, which if I'm not mistaken, will retain it's size if you download it (right click, "save image as" or similar menu choice) open it and print it from a drawing program, such as The Gimp.
  5. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Thanks Boss!

    Luis: The N scale drawin' shoulda printed out at 6.10 X 10 inches, that without boarders, but includes the photo. So it's 6.10 inches wide from the edges of the outer bldgs and 10 inches tall from the bottom of the photo to the tops ofthe upper bldgs. You could just take your small copy and enlarge it to size on a photo copier / xerox if you are so inclined and have a lot of coins :)
  6. Xaniel

    Xaniel Member

    Joined:
    Jun 8, 2002
    Messages:
    407
    Likes Received:
    0
    well, i used adobe phtoshop. croped the image, taking the phto out, and then printed to fit the page.. it actually worked, a the size is almost the same shamus said to me...
  7. Xaniel

    Xaniel Member

    Joined:
    Jun 8, 2002
    Messages:
    407
    Likes Received:
    0
    shamus don't you have a bigger image of the finished structure? it would be better to see the final product.... PLEASEE.
  8. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Say, could you post that plan in G SCALE??


    HeeHee...just kidding, sir.:D
  9. Xaniel

    Xaniel Member

    Joined:
    Jun 8, 2002
    Messages:
    407
    Likes Received:
    0

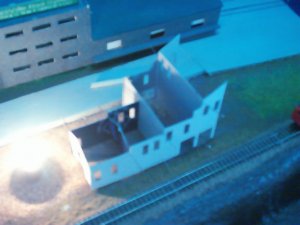

    Is it supposed to look something like this, shamus?

    Attached Files:

  10. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Hi Lius,
    That is perfect, you got it right. Have you wooded it yet.? The windows can be got from Walthers, just get the Station type for N-scale and they will (Should) fit.

    Like to see a side view of it.

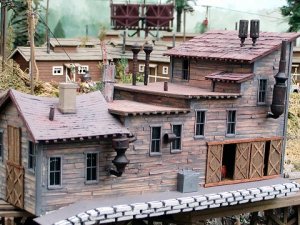

    Here's a photo of the H0 version, which I do not have anymore.
    Shamus
    [​IMG]

    Attached Files:

  11. Xaniel

    Xaniel Member

    Joined:
    Jun 8, 2002
    Messages:
    407
    Likes Received:
    0
    yes, my friend, I'm wooding it as we speak. I think that is going to be ok. I have much to learn with you.

    I'll post progress pics, if you want. ok?

    thanks for everything my friend.
  12. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Hi Luis, post as many photos of it as you wish, I am sure others on the gauge would love to see your progress scratchbuilding as well as myself.
    Shamus
    [​IMG]
  13. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    OH, YEAH

    Bring it on Luis, we all want to see it! :eek:
  14. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    And the P-K employees begin to chant: Luis-Luis-Luis LUIS LUIS LUIS LUIS-LUIS-LUIS :D :D :D Love to see it develop!
