Flight conversion for Ton's 1/48th Soyuz

Discussion in 'Space & Aeronautics' started by Blades, Dec 13, 2010.

  1. Blades

    Blades New Member

    Joined:
    Jun 25, 2005
    Messages:
    14
    Likes Received:
    0
    I haven't posted here in some time, so I thought I'd get beack into the forum with the build thread of Ton Noteboom's Soyuz. The model was designed with flight modifications in mind, with provisions for clustered motors, one in the second stage and one more in each of the boosters. In the interest of simplifying what was going to be a complex build in the first place, I decided to go with a single central engine.

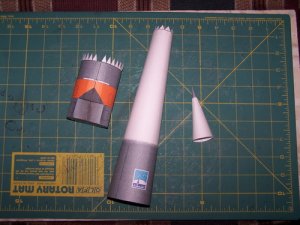

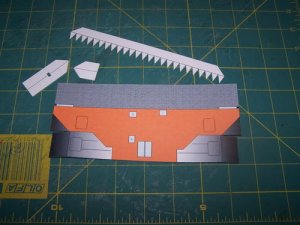

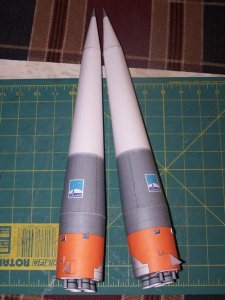

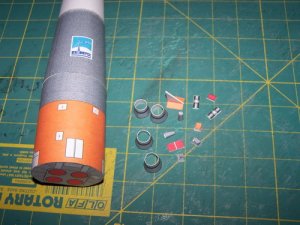

    I began by building the boosters. No real complications other than it taking a fair bit of time, as there are four of things to construct. I begin to get the feel for the scale of this bird. It is not a small model.

    Attached Files:

  2. Blades

    Blades New Member

    Joined:
    Jun 25, 2005
    Messages:
    14
    Likes Received:
    0

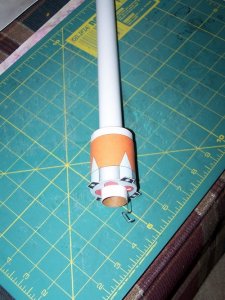

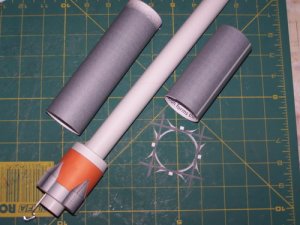

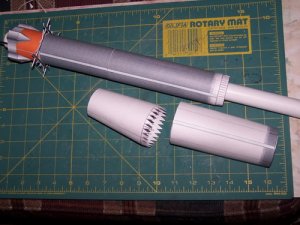

    Next comes the second stage stack. A standard model rocket body tube serves as a motor mount/stuffer tube. It runs up the body into the lower section of the interstage. The body of the rocket is double layered 110 lb stock. Centering rings are cut from 4X laminated card stock. In between the stuffer tube and the laminated body, the rocket is remarkably strong. The interstage area will be the parachute compartment.

    Attached Files:

  3. Blades

    Blades New Member

    Joined:
    Jun 25, 2005
    Messages:
    14
    Likes Received:
    0

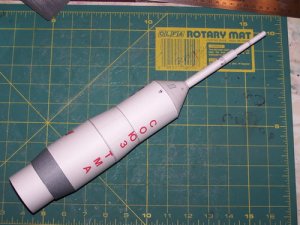

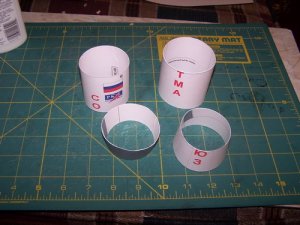

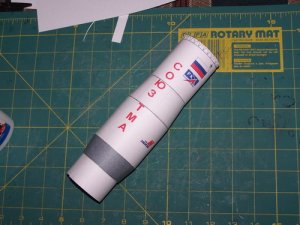

    The Soyuz cover and capsule will be the nosecone for the rocket. Once again, construction is a double laminate. The capsule carries 3 ounces of weight to bring the center of gravity forward to give a stable flight.

    Attached Files:

  4. Blades

    Blades New Member

    Joined:
    Jun 25, 2005
    Messages:
    14
    Likes Received:
    0

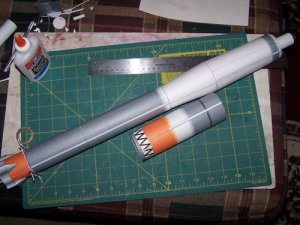

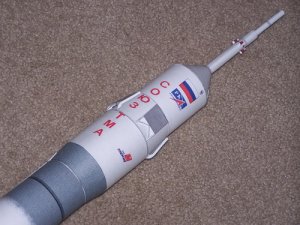

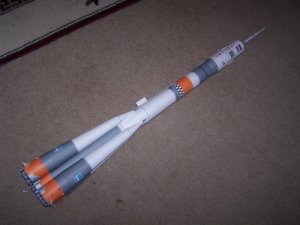

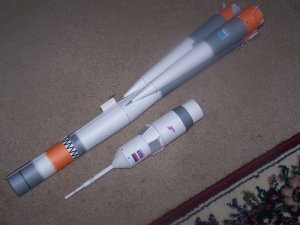

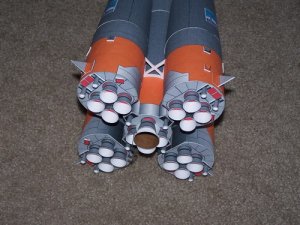

    Now it's just a matter of putting it all together. There's a small alignment tab in the booster web that makes the spacing of the boosters a snap. A few final details are put in place. Two standoffs are affixed with launch lugs and a length of heavy elastic is fastened between the interstage and the capsule. This was built to take a 24mm rocket motor. Final weight of the model is just over 10 ounces.

    Attached Files:

  5. Blades

    Blades New Member

    Joined:
    Jun 25, 2005
    Messages:
    14
    Likes Received:
    0

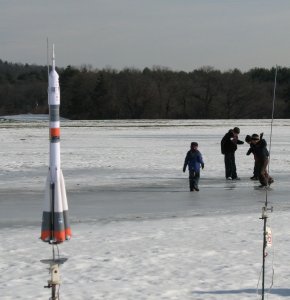

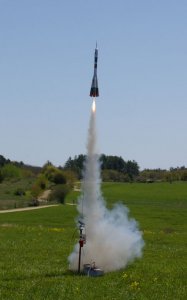

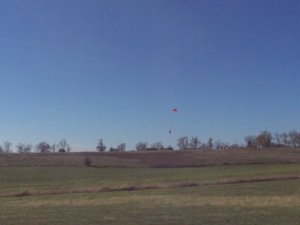

    So far, she has one flight under her belt. She flew on an Estes D12-3 engine. Liftoff was slow and elegant. On this motor she only reached an altitude of 200 feet or so, but it was fine for a first flight. For subsequent flights, I'll use higher powered AP (ammonium perchlorate composite) motors. They'll give quite a bit more altitude. Recovery was on a 24" nylon parachute. It was a very clean flight with no damage on recovery, I'm looking forward to flying her again.

    Attached Files:

  6. WeeVikes

    WeeVikes Member

    Joined:
    Sep 6, 2007
    Messages:
    107
    Likes Received:
    0
    Blades,

    This is beautiful!

    One of my favorite things is to do conversions as well, and you certainly have my full attention! I converted Ton's Saturn V into a flier with great results. I also do as you did, use a central core tube for the purpose of using a D12-3. It's simple and works great. I've wanted to build a flying Soyuz for a long time, and this is giving me bad thoughts... :mrgreen:

    So, to make sure I have this right, you did not use any clear, auxiliary fins, correct? What did you use for ballast and where exactly did you place it? I assume it more than adequately stable?

    I like the idea of the double laminate construction. That never occured to me, but I will certianly give it a lot of thought from now on.

    This may have to go on my "must build before spring flying season" list!.

    Thanks,


    Mike
  7. Blades

    Blades New Member

    Joined:
    Jun 25, 2005
    Messages:
    14
    Likes Received:
    0
    You are correct, it doesn't need any auxiliary fins. I'd have to run it through some simulation software to be sure, but I suspect that the shape of the boosters effectively make it a cone stabilized rocket. It's draggy, but very stable. I used lead shot mixed with epoxy for the nose weight and put it as far forward in the capsule as I could.

    As for the laminated body, I would really recommend it. It adds a great deal of strength. I cut an interior piece the same size as the original, apply a layer of white glue, lay the two pieces together, but offset a bit, to make a glue tab, then roll the assembly under a mandrel to establish the curve. Once it has dried some, I can trim a short length from the glue tab to get a perfect fit and complete the tube. I hit upon this method while working on this rocket and it seems fairly reliable.

    I'm currently working on a flight conversion for Ton's Little Joe II. It will also take a 24mm motor. I'll do a thread on it shortly.
  8. Blades

    Blades New Member

    Joined:
    Jun 25, 2005
    Messages:
    14
    Likes Received:
    0
  9. WeeVikes

    WeeVikes Member

    Joined:
    Sep 6, 2007
    Messages:
    107
    Likes Received:
    0
    Blades,

    I've decided to take one of these on, so I have a couple quick questions for you.

    1) How long is the length of BT-50 you used? At what point in the vehicle does it end?

    2) You said you added 3 oz of ballast. Was that a combination of the epoxy/shot, or did you weigh out 3 oz of shot, and mix in enough epoxy to work appropriately, and therefore were slightly over 3 oz? (Sorry to be anal about that -- I want to add enough ballast, but only enough.)

    Thanks for the inspiration!
  10. Blades

    Blades New Member

    Joined:
    Jun 25, 2005
    Messages:
    14
    Likes Received:
    0
    Always happy to help, WeeVikes. You'll need a section of BT50 22 1/2" long. This will bring your final centering ring about an inch up from the bottom of the interstage tube, giving you plenty of room for a parachute. As for the nose weight, the combination of shot and epoxy came as close to three oz. as I could get it. I used that much weight on the recommendation of another rocketeer who previously had built one. You might be able to get by with less, but as this bird is more about esthetics than altitude, greater stabililty has a higher priority for me.

    Have fun with this build. I certainly did.
  11. WeeVikes

    WeeVikes Member

    Joined:
    Sep 6, 2007
    Messages:
    107
    Likes Received:
    0
    Blades,

    Another question.

    I have my 1st stage boosters built and the second stage well under way. In trying to envision how they fit together, I'm assuming you need to slit the boosters to let the tabs in the support structure fit in them so the boosters snug up against the "latticework" structure. Also, the nose cones of my boosters will not snug up against the fairing of the second stage. Does this sound right to you?

    Thanks,


    Mike
  12. WeeVikes

    WeeVikes Member

    Joined:
    Sep 6, 2007
    Messages:
    107
    Likes Received:
    0
    Blades,

    Never mind -- I sorted it out.

    More questions likely to follow.


    Mike
  13. BobH

    BobH New Member

    Joined:
    Oct 5, 2006
    Messages:
    15
    Likes Received:
    0
    Hi,

    I just saw this thread and have also converted Ton's Soyuz for flight.

    For what it's worth, I used 3oz of clay ballast in the nose as far forward as possible. It balanced just slightly ahead of the booster tips with an E9-6 installed. The all up finished weight was 8.2oz.

    I did not do double thickness on this like I usually do because of the full length stuffer tube (22.25") until I got to the parachute compartment. I made the parachute compartment and everything forward of that double thickness.

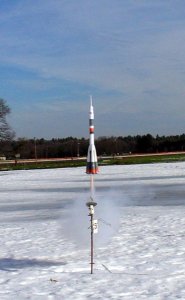

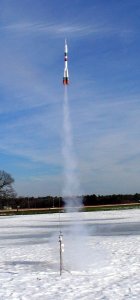

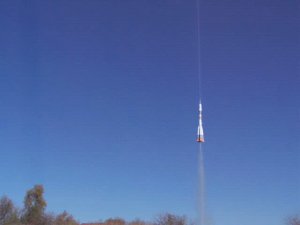

    Predictions from wRASP was 321 ft on a D12-3 and the first flight was on a D12-3 and maybe it got that high (pictures from winter launch).

    The second flight was on an E9-4 (wRASP prediction 562ft) and again nice straight flight but certainly didn't get any higher than predicted. Sorry, no picture from that flight but that will be a good "small field" motor.

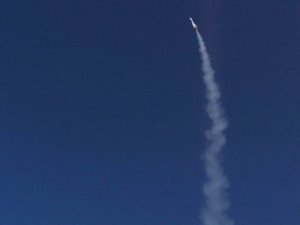

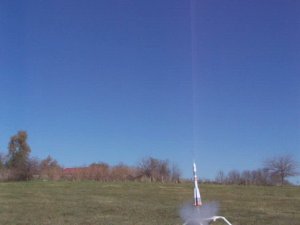

    Third and subsequent flights have been on Aerotech E18-4 (747ft predicted altitude) and gives a good flight. (summer pictures).

    The F24-4 looks like a good motor that will keep it just under 1000ft so I may just try that next if we ever get a day with low enough wind speed.

    Attached Files:
