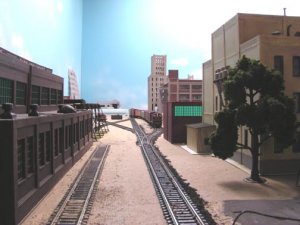

    I've been thinking about my layout for some time now, wondering what it was I didn't like about it. Finally decided that there were too many turnouts, too close together making things look not very realistic.

    I took out all the track, and rather than drawing out a new plan, I just positioned track and turnouts in what looked "right."

    Here is a shot from about track level looking east at what will eventually be tall buildings in the corner. In the foreground to the left you can see the Massey Fergusson foundry building with a bit of the overhead crane showing an abandoned siding which which get a lot of weeds around and over it. To the right is Weston's Bakery.

    Val

    Attached Files:

  2. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

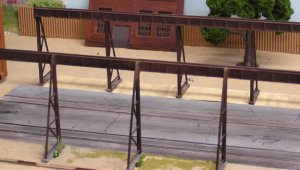

    Here we are looking north at the overhead crane in front of the foundry. I've just finished creating the pavement underneath it. The forground tracks are live, the back ones are not - they go into the building and are used for slag and sand cars.

    Attached Files:

  3. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Probably should have posted this first - an overall view.[​IMG]
  4. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

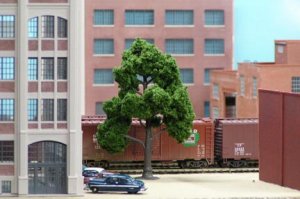

    Another close-up, showing the parking lot beside the Inglis Plant, which as you can see is missing its back wall. Still working on that.

    Attached Files:

    • tree.jpg
      File size:
      28.2 KB
      Views:
      255
  5. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Looking very good indeed. :thumb:
    Had a good Christmas Val.
    Shamus
    [​IMG]
  6. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    :thumb: :thumb: :thumb: Coming along nicely Val!!! Less can be more! :cool:
  7. Arlaghan

    Arlaghan Member

    Joined:
    Sep 9, 2003
    Messages:
    668
    Likes Received:
    0
    I love what you've got so far... great indicator of what's to come!

    I especially like your technique for the cracks on the concrete! Keep those pictures coming! :D
  8. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    Looking good Val :wave: :thumb: :thumb: :thumb:
  9. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,074
    Likes Received:
    0
    Val, this is great:thumb:

    Do you give tutorial on "how to' make great models and weathering ?

    If you do, sign me up:)
  10. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,594
    Likes Received:
    0
    It looks great Val! I'm sure it will be awesome when done. Hope I can get to see it this summer.

    Gary
  11. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Looking good Val! Things seem to be coming together nicely.:thumb: :thumb: :thumb:
  12. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    The overall arrangement looks great Val! Track plans that look right and serve your indsutries are "right". Beautiful work on the concrete flooring uder that overhead crane.
    Ralph
  13. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Excellent attention to detail Val. As Arl says, the concrete with cracks looks very real. Nicely done.:thumb: :thumb: :thumb:
  14. Eddie Landreth

    Eddie Landreth Member

    Joined:
    Mar 9, 2003
    Messages:
    115
    Likes Received:
    0
    Great looking "canyon" you have there with the tracks in it. It has the right look to it, and as you noted sometimes too much track doesn't look right in the situation. Really like your buildings as well, please keep posting more pics. :thumb:
  15. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Wowsers!

    OutSTANDING! :thumb: SuPERB! :thumb: SpecTACULAR! :thumb:


    Uh, really nice work, by the way. :)
  16. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks a lot everyone!!! You guys make my day, everyday!

    CN1, no weathering tutorial as such but here's one technique I use a lot. Paint really dirty buildings a mix of Daylight Red and Engine Black - basically a brown colour. No mortar lines - I assume they're too sooty to see.

    Another one, use a light mix (or boxcar red, oxide red or similar). When fully dry rub spackle into the grooves between the bricks. I use a scrap piece of styrene as a spreader and scraper.

    Eddie I was trying to get that canyon look but the tricky thing is you want to be able to reach the tracks from the front. I just put 2 buildings across from each other to set the tone and then there's a very large open space where the turnouts are.

    Anyway, thanks again folks!!

    Val
  17. philip

    philip Guest

    what about

    that great looking concrete slab. How ya do dat Val?.......please share.:D

    philip
  18. Jim T

    Jim T Member

    Joined:
    Jan 25, 2003
    Messages:
    86
    Likes Received:
    0
    Yes, that concrete looks great Val, as does the rest of the layout. It's an interesting process you went through to arrive at this design. More like real life where the tracks and buildings sort of grow together with the track work fullfilling the needs of the building owners.

    Cheers, Jim
  19. zeeglen

    zeeglen Member

    Joined:
    Aug 26, 2003
    Messages:
    224
    Likes Received:
    0
    Beautiful artwork, Val. I wish there was a smiley for 'drooling on the keyboard with awe'. For now DOTKWA will have to do.
  20. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Re: what about

    Okay Philip. Because I was fitting it around track I used styrene sheet (which was raised to track level with stripwood).

    Painting technique was using 2 mixes of grey, one a little lighter and kind of blending them on the plastic. I didn't really intend to do it this way, just that the first application seemed too light so I added a little darker grey and liked the effect, so I repeated it for each strip.

    Then I rubbed on a little artists black chalk and smeared it around with my fingers. (Note: do NOT rub your nose at this stage or you will get funny looks from your family members!!)

    Finally, I used a fine-tip Pentel style pen to create the cracks. It helps to have some understanding of where the pavement is likely to stress and crack. Along the edges is one place - those cracks are mostly parallel to the road. Transverse cracks happen in response to changes in elevation that can happen over time, when the nice graded roadbed sinks here and there the pavement cracks as it sinks a little too.

    I am constantly observing these things as I drive around. Local conditions probably produce slightly different effects. For example, where there are freezing winter conditions, there is more stress on pavement.

    For the pothole, I took a match to the plastic sheet before painting. It doesn't take much heat at all. You could also cut it out. Then I filled it will a little very fine ballast as gravel.

    Hope this helps.
