Farnsworth communication device from Warehouse 13

Discussion in 'Science Fiction & Fantasy' started by Revell-Fan, Jul 7, 2013.

  1. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701

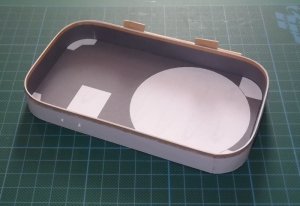

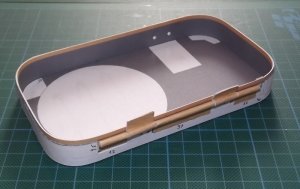

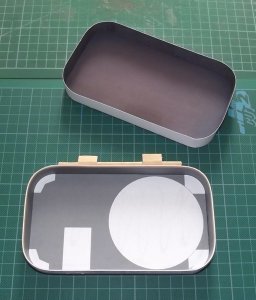

    The edges of the wall strips are coloured before they are attached. And this is how it looks at the moment. A quick fit test showed that both halves of the casing really fit well together. However, the upper half seemed a bit too high. I corrected that.

    Attached Files:

  2. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,526
    Likes Received:
    2,460
    The ALPHA BUILD is coming along BEAUTIFULLY!!!
  3. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701

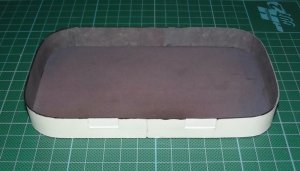

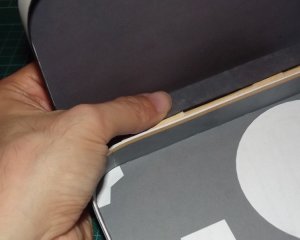

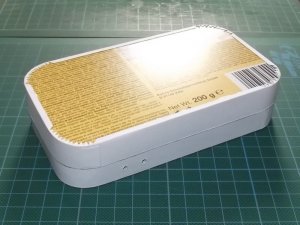

    The upper casing is attached. You may apply pressure from the inside till the glue has cured.

    Attached Files:

  4. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701

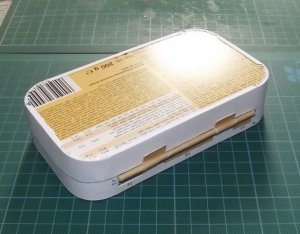

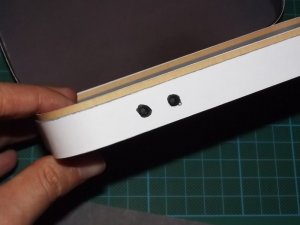

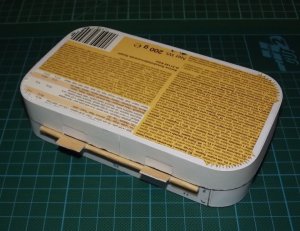

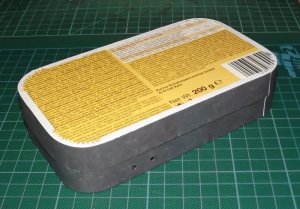

    The outer covers need some cutouts for the hinges. I highly guess that the amount and location of the cuts depend on paper thickness and accuracy of assembly. Hence the parts will not feature these cutouts but I will add a note in the instructions. The holes for the antenna must be coloured black before the cover is attached.

    Attached Files:

  5. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701

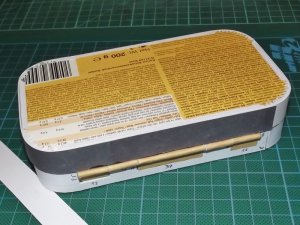

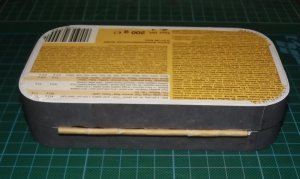

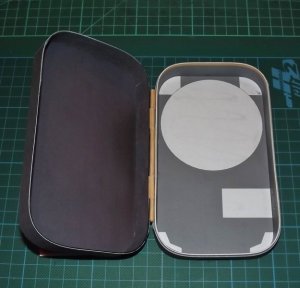

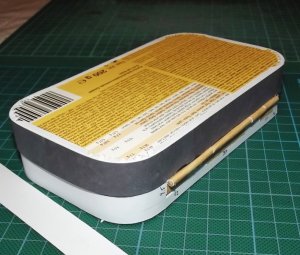

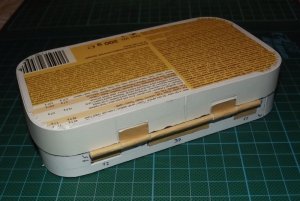

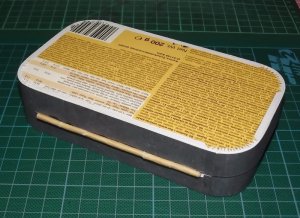

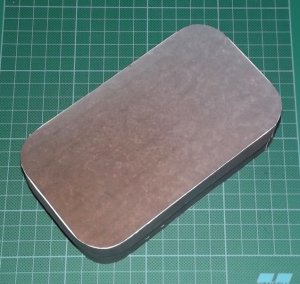

    The last step is attaching the top and bottom cover. Both parts have to be cut to shape after they have been glued to the case, the edges have to be painted. Et voilĂ , the casing is complete and opens and closes! :thumb:

    Attached Files:

  6. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    One of the drawbacks of the design is that the outer cover has to be cut in two halves for printing. This leads to two seams which can't be hidden easily. Nevertheless I hope that the fun factor compensates for that because the FW doesn't only open and close but it also gets movable knobs. Stay tuned for more! ;-)
  7. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,526
    Likes Received:
    2,460
    That looks GREAT!!!
    I really like how you did the hinge.
  8. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    A beautiful work, RF, as usual. Simple and effective, but with huge attention to details.
    The hinge solution was nice and noted! :mrgreen:
  9. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    Thank you! When I was assembling the case I noticed that the texture definitely has to be replaced by a better one (I took it from picture which was as big as a stamp to have something to work with). As soon as I have made one I'll print it on thin paper and glue it over the existing structure. ;-)

    Aside from that I can assure you, THIS BUILD IS SO MUCH FUN! :mrgreen::mrgreen::mrgreen:
  10. kolacho

    kolacho Member

    Joined:
    Aug 3, 2007
    Messages:
    31
    Likes Received:
    0
    Exelent work! I like this!!! awaiting for updates!! ;)
  11. b0bman

    b0bman Member

    Joined:
    Sep 3, 2008
    Messages:
    55
    Likes Received:
    6
    you are correct vulcan
    !
  12. b0bman

    b0bman Member

    Joined:
    Sep 3, 2008
    Messages:
    55
    Likes Received:
    6
    it's looking great revell-fan!
  13. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    I have finally managed to make a decent texture for the casing. However, who says that a FW has to be brown only? I'll be preparing alternative parts for making a blue and a green FW.

    Attached Files:

  14. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,526
    Likes Received:
    2,460
    Those FANTASTIC looking textures!!!
    I like that you are giving choices like this.
    I think that this will be a GREAT HIT!!!
  15. The_Hawk

    The_Hawk New Member

    Joined:
    Nov 29, 2009
    Messages:
    36
    Likes Received:
    12
    I like the green looks kinda 60's. I like the Idea of alternates too.
    I like many here are just waiting to see how this finishes. Its looking great!!!!
    Keep up the good work. :mrgreen:
  16. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    That's exactly what I thought when I was tampering with the colour. I even would say it fits in the 1920s / 1930s era, too. I tested pastel tones, too, like amber and vanilla, but that didn't fit at all. I'm very pleased with the texture and I'm sure that every version will look great. :thumb:
  17. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    You did a fine work with those textures, man. Congrats!
  18. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806
    You could wrap one in some prism sticker paper and have the Disco Ball '70s Farnsworth :mrgreen:
  19. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    Ha-ha-ha-ha- Stayin' alive! Stayin' alive! sign1
  20. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,526
    Likes Received:
    2,460
    I will still stick with the shine black one, thank you!:thumb:
