Hello, fans!

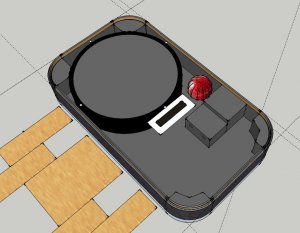

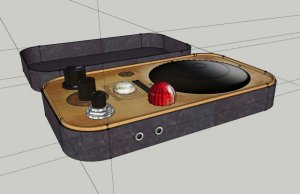

Main modeling is complete and I am about to unfold everything. Here are some pics of the current look of the CG model. I have tweaked the width of the case(s) and added the two plugs. I needed a rivet texture for them and you'll never guess where I got it from - my shoes! :mrgreen:

Feel free to use the rivet for texturing your own models.

In addition, the Farnsworth team has become bigger: b0bman is on board now and will be test-building the first prototype. Thank you for this and happy building! :thumb:


Attachments

  • rivet1.JPG
    147.4 KB · Views: 11
  • rivet2.JPG
    55.5 KB · Views: 11
  • Farnsworth6.jpg
    95.1 KB · Views: 14
  • Farnsworth7.jpg
    68.7 KB · Views: 15

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden

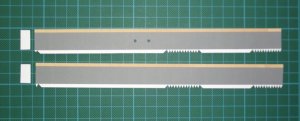

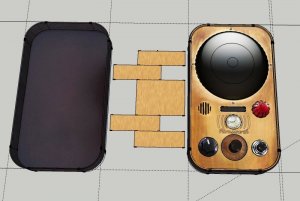

Another two pics showing the strips for making the joints and the inner skeleton. Unfolding is in progress now! :thumb:


Attachments

  • Farnsworth8.jpg
    57.1 KB · Views: 11
  • Farnsworth9.jpg
    72.6 KB · Views: 10

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden
Unfolding is coming along nicely! :thumb:


Attachments

  • Farnsworth10.jpg
    46.6 KB · Views: 19

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden
The texture will be replaced in certain areas in order to get rid of unwanted shadows and to increase the sharpness of the images.


b0bman

New Member
Sep 3, 2008
60
10
8
wisconsin
thank you for the shout-out and i will do my best on the construction of the model. also, major brownie points to whomever can tell me the movie where my quote came from :)


Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden
I have no idea either! :mrgreen:

I had an inspiration last night and revised the model. As I told you before I'd like to release this simple version asap so that all of you may have a chance to present it at your Halloween party. However, this model features such a high potential for it can be displayed with a full interior. Due to the fact that I am not sure if I can get the innards ready in time I will concentrate on the outer shell but make sure that this shell can be enhanced later. So be prepared for an add-on pack which will feature a full interior and the small antenna with that cute radar dish. :thumb:


Attachments

  • Farnsworth11.jpg
    61.4 KB · Views: 8

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden

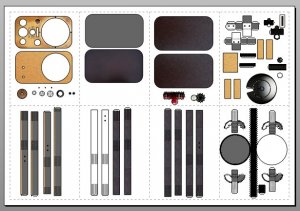

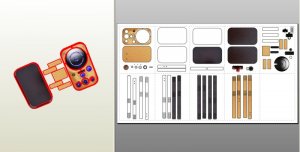

And a first look at the new unfold.


Attachments

  • Farnsworth12.jpg
    60.8 KB · Views: 14

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden

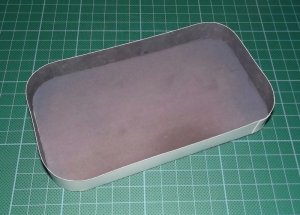

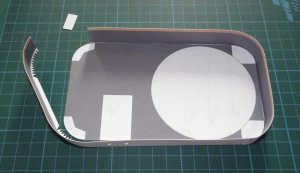

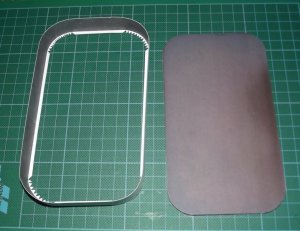

So, and now the fun begins: I have printed the parts and started a quick and dirty test of the casing. This was necessary because of the laminations which are required to make the "walls" of the FW. This test should show me if the length of the wall paper strips was correct.

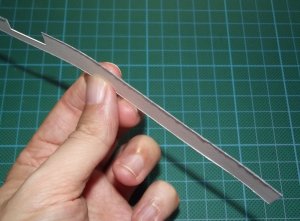

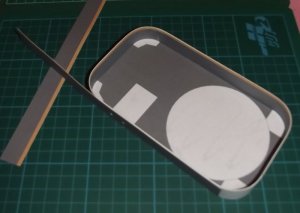

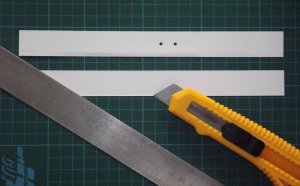

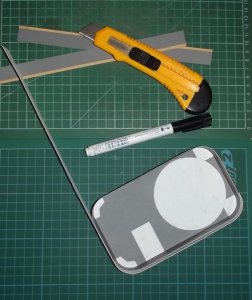

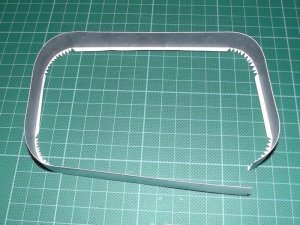

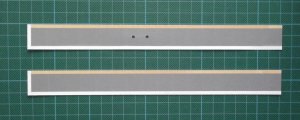

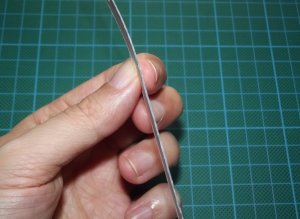

The pictures show how it is done: The first strip is cut out which forms the inner wall. It has some flaps on it which are supposed to be valley-folded. To make this step easier I make two little cuts into the strip marking the position of the flaps. The part is turned around and the part is creased on its back side along the cuts. Then the flaps are folded up.

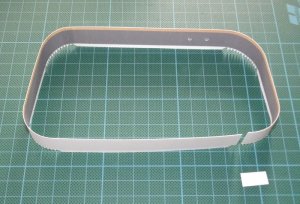

The bottom piece is laminated to 0.85 mm cardboard and the inner wall strip is glued around its edge. The outer wall strip is used for cutting out a matching strip of 0.85 mm card which is glued around the inner wall strip to make the wall thicker. Then the outer wall strip is glued around it.

I found out that the inner wall strip was too short and has to lengthened by 2 mm.


Attachments

  • DSCF3660.JPG
    102.2 KB · Views: 9
  • DSCF3663.JPG
    122.9 KB · Views: 9
  • DSCF3664.JPG
    93.3 KB · Views: 9
  • DSCF3665.JPG
    164 KB · Views: 6
  • DSCF3666.JPG
    118.5 KB · Views: 6
  • DSCF3670.JPG
    112.8 KB · Views: 6
  • DSCF3671.JPG
    115.3 KB · Views: 7
  • DSCF3673.JPG
    104.2 KB · Views: 5
  • DSCF3674.JPG
    93.9 KB · Views: 8
  • DSCF3676.JPG
    114.3 KB · Views: 8

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden

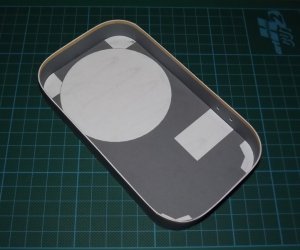

The same procedure for the upper half casing. This time I assembled the inner wall first and pressed the bottom through it. This works very well, so it is up to you which way of assembly you prefer.


Attachments

  • DSCF3692.JPG
    195.1 KB · Views: 7
  • DSCF3693.JPG
    153.2 KB · Views: 7
  • DSCF3695.JPG
    149.2 KB · Views: 7
  • DSCF3697.JPG
    146.3 KB · Views: 8

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden

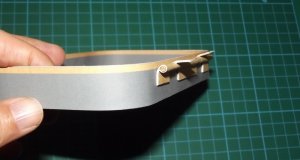

And now comes the most exciting part: The hinge mechanism.

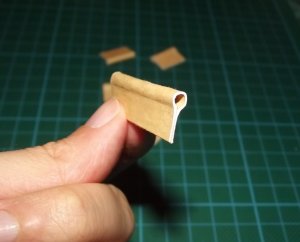

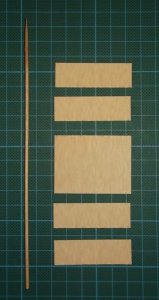

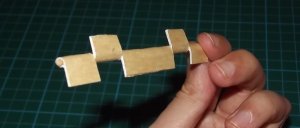

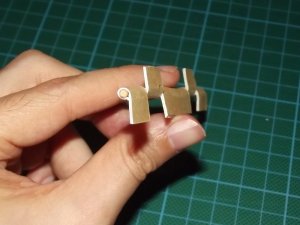

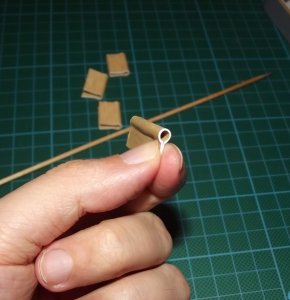

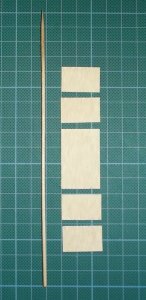

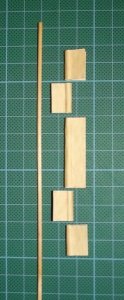

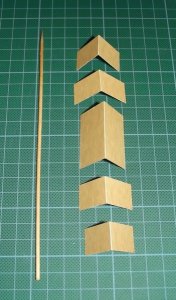

You need a wooden or a brass rod for it. Cut out the brass-textured rectangles and fold them as shown. I made the little elements double-sided to make them more stable and durable.


Attachments

  • DSCF3678.JPG
    78.8 KB · Views: 7
  • DSCF3679.JPG
    101.6 KB · Views: 8
  • DSCF3680.JPG
    84.5 KB · Views: 6
  • DSCF3682.JPG
    108.1 KB · Views: 8
  • DSCF3685.JPG
    120.7 KB · Views: 8
  • DSCF3687.JPG
    91.8 KB · Views: 9
  • DSCF3690.JPG
    85.6 KB · Views: 8

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden

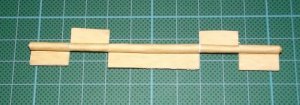

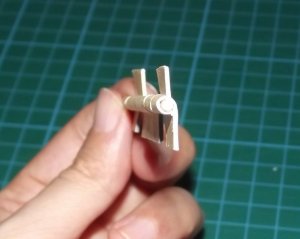

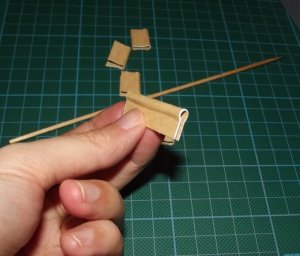

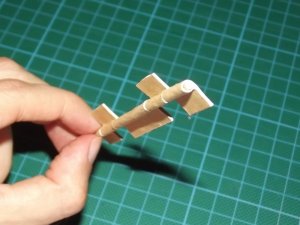

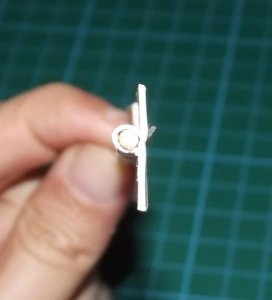

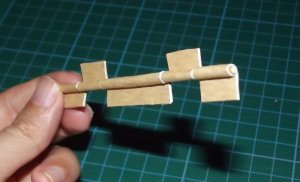

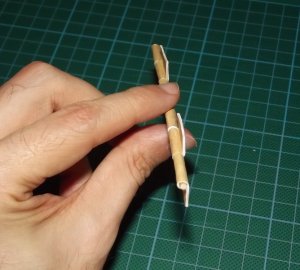

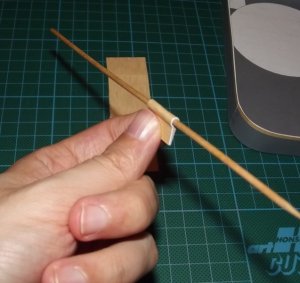

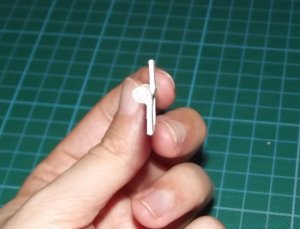

Then the elements are stacked over the rod. No glue is required for that.


Attachments

  • DSCF3689.JPG
    79.6 KB · Views: 9
  • DSCF3698.JPG
    104.2 KB · Views: 10
  • DSCF3699.JPG
    70.2 KB · Views: 9
  • DSCF3702.JPG
    108.1 KB · Views: 9
  • DSCF3705.JPG
    113.9 KB · Views: 11
  • DSCF3706.JPG
    104.5 KB · Views: 9
  • DSCF3708.JPG
    93.9 KB · Views: 11
  • DSCF3710.JPG
    72.6 KB · Views: 9
  • DSCF3711.JPG
    100.7 KB · Views: 8
  • DSCF3712.JPG
    89.1 KB · Views: 11

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden

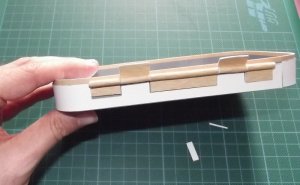

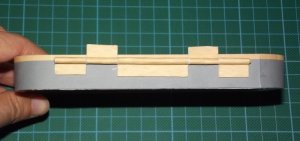

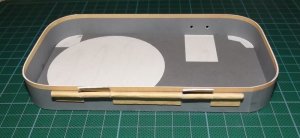

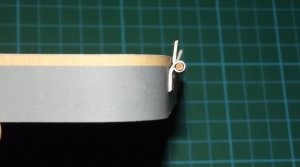

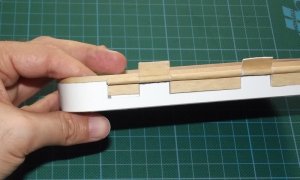

The hinge is glued to the lower half of the casing.


Attachments

  • DSCF3713.JPG
    96.6 KB · Views: 11
  • DSCF3722.JPG
    87.5 KB · Views: 7
  • DSCF3724.JPG
    71.6 KB · Views: 9
  • DSCF3725.JPG
    92.1 KB · Views: 11

Revell-Fan

Co-Administrator
Staff member
Administrator
Moderator
Aug 1, 2009
11,589
12,328
228
Vreden
When I looked at the hinges I noticed that I had completely missed out the cutouts for them on the next wall parts. I revised the design on-the-fly and tested it successfully.


Attachments

  • DSCF3715.JPG
    66.3 KB · Views: 8
  • DSCF3720.JPG
    74.6 KB · Views: 7
  • DSCF3726.JPG
    131.7 KB · Views: 9
  • DSCF3727.JPG
    120.2 KB · Views: 6
  • DSCF3728.JPG
    118.2 KB · Views: 9
  • DSCF3733.JPG
    110.6 KB · Views: 10
