    Ahh, scratchbuild, a new experience for me. So far i've got no clue what I'm going to build and what material I'm going to use.

    So here's what I've got so far on scratchbuilding:

    Attached Files:

  2. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    7,260
    Likes Received:
    0
    ............. Only theeee ShaaaaDow KnowwwwwwwwwwwwSSSS..

    (Insert Evil Laugh Track here) :D :D :D
  3. galt904

    galt904 Member

    Joined:
    Jan 17, 2005
    Messages:
    265
    Likes Received:
    0
    What scale would the laugh track be?
  4. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    If de Shadow knows I wish he's speak to me, 'cause I sure as heck don't.....:rolleyes: :rolleyes:

    Oh Chad, I'm not sure, but I'd guess it would be prototypical, ya know, like a harty full-scale evil lurking laugh track.:D :D
  5. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    More than likely it would be "B" horror movie Actors Union "scale"

    "B"hormAUs.....is that as big as Ginormous?
  6. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Here's a suggestion Don....Suprise us.
  7. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Ed, I surprised even myself, but I made a decision. There's one place that's dear to both my wife and my hearts, that being Sedona, Arizona. One place we always visit when we're up there is the Chapel of the Holy Cross. I've mentioned this before and had posted pictures of it a while back. The building is built about 250 feet up on the side of a hill. I've estimated that the chapel itself goes from about 25' in back to 35' in front and the entire building is about 77' overall. The cross on the front rises about 100' from the base to the top of the roof. The structure is so impressive sitting there and can be seen for miles around.

    My plan is to do the chapel and it's approach as well as the ramp from the bottom of the hill. I want to try and do the surrounding rocks as well. I may do it 1:160 scale, or try to go a bit smaller so I can use it as a background piece.

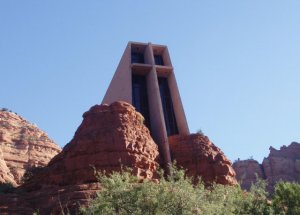

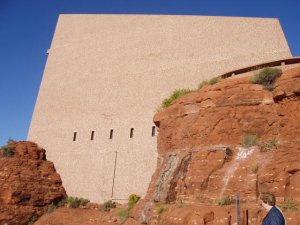

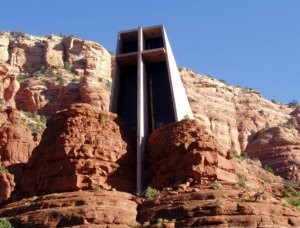

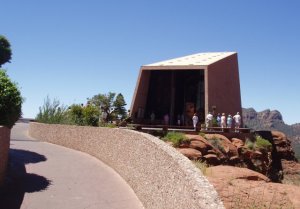

    Here are a few shots of the prototype:

    Attached Files:

  8. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0

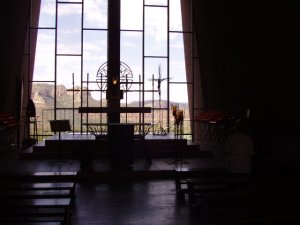

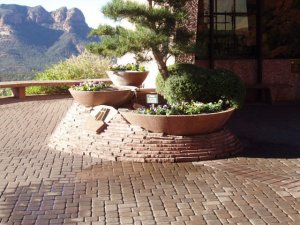

    And a few more of the area surrounding the chapel and shots from inside the chapel. Oh, that's my wife Peggy standing there beside an old grammer school neighbor of mine from New Jersey:

    Attached Files:

  9. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
  10. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    7,260
    Likes Received:
    0
    oh Man - That's nice!!!
  11. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    That's good Miles. [​IMG]

    Yeah Mikey, it's nice to look at, but when you go up there, it's even better. :D :D
  12. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    That'll make a cool project Don, Can't wait to see what you come up with.
    Instead of going 1:160, why don't you do it in N scale?sign1
  13. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,441
    Likes Received:
    0
  14. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Hey Ed, that's a fine idea, wonder why I didn't think of that since I'm into N scale....:D :D :D :D
  15. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Thanks Jim, I don't know if I can do justice to it, but I'm gunna give it my best.

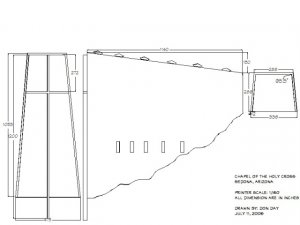

    Here's the next step, trying to get the right dimensions. Based on the pictures I've taken, I think I'm close. Here's my CAD sketch of the outside structure:

    Attached Files:

  16. cnw1961

    cnw1961 Member

    Joined:
    Jan 8, 2006
    Messages:
    936
    Likes Received:
    0
    That’s an interesting and exceptional scratchbuilding project. Really looking forward to see your chapel. Doesn’t matter if it turns out to be n-scale or 1:160 sign1.
  17. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    The structure is almost 100 foot long and the cross is 100 foot high so I did a 1:160 (or N scale, I'm not sure which), printout and it really is overpowering for my layout at around 8" tall and long. I'm going with 1:200. This still puts it at 6" so I might possibly go even a bit smaller. That works out fine because I have a sheet of stonework that is 1:200 and that Plastruct says on the label is "N scale, 1:200". :rolleyes: :rolleyes: That should work for the promenade area.

    After my visit there last week, I make a few changes and so this is going to be my template:

    Attached Files:

  18. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    Wow Don! My wife and I visited there when we were in Sedona a couple of years ago. That is definately an awesome church structure with awesome views. I'll be curious to see how well you can do the rocks around it. That red rock area is gorgeous!
  19. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Don I am sure it will look Great when you do it and get it done. You always do excellent work.:thumb: :thumb: :thumb:
  20. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Russ, this is by far both my wife's and my most cherished place to visit. The red rocks will take your breath away, as you well know.:)

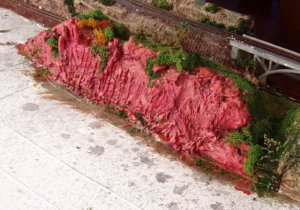

    Since you asked, during our layout party earlier this year, I constructed a hill to the back of my town and made part of it to resemble the Sedona rocks. Here's a shot of it before I completed the town. If I can get the scaling down right, there's room to add the chapel in an area just to the left of this rock formation. If I do put it there, it will have one feature that the real chapel doesn't have.... a RR siding....:D :D I originally had planned for a mine there, then changed it to an industrial bldg, so I guess it pays to procrastinate... :wave:

    Oh, BTW, I'm now down to 1:212 scale, even 1:200 seemed to be a bit too large for the layout.:rolleyes: :rolleyes:

    Attached Files:
