Expansion!!

Discussion in 'Getting Started' started by Bob Collins, Jul 23, 2002.

  1. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0

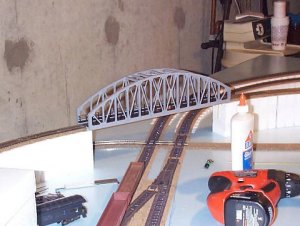

    Wasn't really satisfied with what I was wanting to develop as a branch line that would intersect with a major rr on my layout. After waking by the layout everyday for a month the little light bulb in my brain came on ever so dimly:D :D

    The pictures show where I am with this part of the project. In addition to just having the branch come into the yard to meet with the mainline (UPRR, of course) I now have "engineered" it so the branch will actually cross the double mainline during its travels back to Boneyard Valley. We also have another part of the mainline crossing over the double crossing which might just make this the place to stand to watch some action, eventually:D :D

    Bob

    Attached Files:

  2. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0

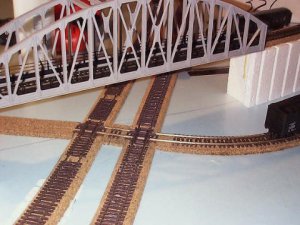

    Here is another shot from a different angle. As you can see, we're not quite ready for the photo contest:cool: :cool:

    Bob

    Attached Files:

  3. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Hi Bob old friend, that double crossing looks fab, did you manufacture that yourself? if you did, thats excellent craftsmanship. I wouldn't like to try that myself. Wow.

    Shamus
    [​IMG]
  4. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0
    Hi Shamus;

    Thanks for the compliment. I did make it myself. Took me longer to think it through than to actually "build" it. Not near as difficult as when I made the two double crossovers I did early on. With those a third hand would have been a real blessing.

    Actually, I thought about you several times while doing this thing as I keep thinking, "remember what Shamus said about transition curves, this is what he was talking about."

    The space is rather tight coming into the crossing, but I can get everything I own around and through here except my heavyweight passenger cars and I have no need to get them in here anyway. This is going to be strickly freight with a series of spurs to various businesses, and maybe a two stall engine house.

    Bob
  5. RI541

    RI541 Member

    Joined:
    Feb 21, 2002
    Messages:
    666
    Likes Received:
    0
    Bob,

    It looks to me like you've been doing alot of work, Alot of good work i should say.

    Its looking great and I hope you keep us well posted.
  6. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Got a question Bob, on that crossing, where are the power points, or is it long enough for the loco to straddle it.

    Just a thought my crazy brain was thinking about.

    Shamus
    [​IMG]
  7. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0
    Shamus;

    There are actually three power points. One already installed off to the side where the track continues out of sight and two to be installed, one in the center and one to the side where I have not yet extended the track. I'm trying to make up my mind where I want to put in a series of turnouts for the spurs and when I figure that out I'll know where the power will go in. I'll solder in the connectors between the mainlines shortly.

    Bob
  8. Casey Feedwater

    Casey Feedwater Member

    Joined:
    Jun 11, 2002
    Messages:
    828
    Likes Received:
    0
    Hi, Bob,

    It looks like you're putting together a very nice layout. What are you using for sub-roadbed (under the cork)?
  9. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0
    Casey;

    I'm using 1/2" blue board insulation on top of 1/2" oxboard. It has been very satisfactory thus far. I'll dig out a couple of pictures and pst them so you can get a better feel for the configuration of my layout.

    Bob
  10. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Glad to see you're coming along so well, Bob!
    That does look like a great place to do some railfanning!
  11. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0
    Casey;

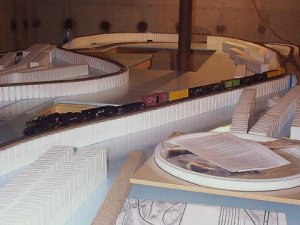

    Here is one view

    Bob

    Attached Files:

  12. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0
    Casey;

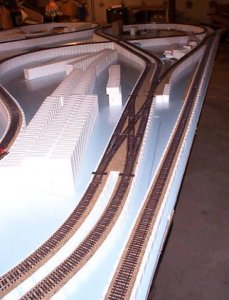

    Here is another view from the other end. The layout is 10' X 22' based mostly on Plan # 82 in Linn Westcott's 101 Track Plans. I expanded it by a foot in each direction to allow me to widen the radius of the curves a bit.

    I have the basics of DCC installed, but have everything sort of torn up right now as I expand my branch line.

    Bob

    Attached Files:

  13. t. alexander

    t. alexander Member

    Joined:
    Jun 21, 2002
    Messages:
    550
    Likes Received:
    0
    Bob Collins, That looks exellent. Built crossovers :eek: I hav'nt tried those yet. I"ll be doing good to get the Curved turnouts built and reliable. I've only built straights.

    How are you attaching the roadbed and track to the foam ?

    t.
  14. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    Bob,
    NICE!
    Post more pic's.
    Marty
  15. RI541

    RI541 Member

    Joined:
    Feb 21, 2002
    Messages:
    666
    Likes Received:
    0
    Bob,
    Just wondering what you are useing for track? You might have told me awhile ago but my mind is slipping.
  16. BNSFC449W

    BNSFC449W Member

    Joined:
    Jul 23, 2002
    Messages:
    30
    Likes Received:
    0
    very nice!!!
  17. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Looking good Bob!!!! :D :cool: :D
  18. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0
    Greetings Group.

    I use good ole Elmers white glue to both glue the road bed to the blue insulation board and to glue the track to the cork roadbed.

    As for track, I have used Atlas 3' flex track from the gitgo. I have been able to piece things together where I have wasted almost no track at all. I've used about 50 sections of the three foot and have less than two feet that I haven't actually used...YET:cool:

    Bob
  19. Casey Feedwater

    Casey Feedwater Member

    Joined:
    Jun 11, 2002
    Messages:
    828
    Likes Received:
    0
    Bob, that's an impressive layout you're putting together. Thanks for the photos.

    I guess asking if you're happy with the Woodland Scenics stuff would be foolish, wouldn't it? :rolleyes: :D :D I may have to give it a try. Most everyone who has used it seems to like it. At least I've never seen any complaints.
