empty passenger cars?

Discussion in 'N / Z Scale Model Trains' started by Bill Pontin, Mar 23, 2003.

  1. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

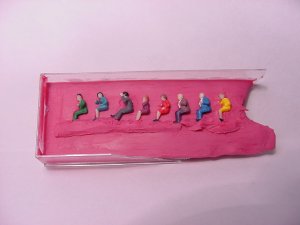

    Think I have too much time on my hands - started making little people for my Santa Fe Valley Line passenger cars. Bought a pack of sitting people and thought I would try and duplicate a few, ya like - maybe a couple of hundred. Only have to mold half people as this is all that is visable through the window of the car. The picture is how I made the mold of my half people. It's a mess because I had just broken the side of the box to remove the rubber mold. Think you will get the idea of how I did it, lined the bottom of a plastic box with modeling clay and pushed the people in half way. Made a mold for 1/2 people left and right sides. Made a clay sprue, not for pouring the plastic but rather for a way to hold the little suckers for painting. Covered the molding material I used in a previous post. (Micro Mark RTV and 10 minute cure plastic.)

    Attached Files:

  2. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

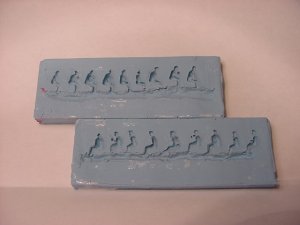

    The two molds, left and right 1/2 people

    Attached Files:

  3. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

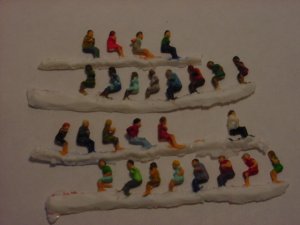

    Painting is the time consuming part

    Attached Files:

  4. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    Sand their bottoms a bit and glue them into their seats

    Attached Files:

  5. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

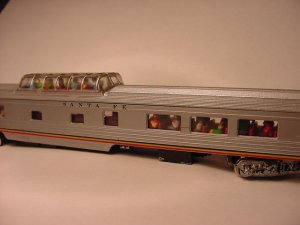

    Wait for the glue to dry and put the car top back on, whalla! one full loaded passenger car. Only eight more cars to go.

    Attached Files:

  6. Wyomingite

    Wyomingite Member

    Joined:
    Mar 17, 2002
    Messages:
    595
    Likes Received:
    0
    Hi Bill,

    By golly Bill I'm retired and don't have that much time on my hands. I will say you done one fine job as they look just beautiful in there little seats. Great job. Ron :D :D ;)
  7. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Bill,

    Really neat stuff. Takes more patience then I have, but the results are worth the effort.

    You have one thing over on Amtrak Seems like you have every seat full.:D Your RR is bound to show a profit:D :D

    Don
  8. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Due to lack of $$$$$ I bought a pack (125) unpainted n-scale figures and have painted a few. Makes me really appreciate the effort to paint half figures, must less mold em' too! :eek: :D
  9. philip

    philip Guest

    Thats a great idea Bill. And them little people look good! Just don't let Monon Jon splash acetone on em.

    philip:)
  10. csxnscale

    csxnscale Member

    Joined:
    May 9, 2002
    Messages:
    281
    Likes Received:
    0
    Great idea and they look very nice.

    Paul
  11. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Wow Bill, you are showing a great HOW TO here. Thanks for showing us your method. Those passenger cars look like they are earning revenue for your railroad.
  12. kettlestack

    kettlestack Member

    Joined:
    Jan 18, 2002
    Messages:
    898
    Likes Received:
    0
    Bill, that's a super "How To" thread, and deserves to be in the archive.
    (Dave Hagan, are you listening? :) :D )

    I had to look twice to make sure they weren't HO scale or larger :) . I'm impressed that they show up so well in the coach.

    Errol
  13. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0
    Good job !!!! Most passenger cars I have seen leave no room for the figures legs/feet, and it is a shame that no-one makes seated figures with just a torso ... as you cannot see below the waist level though most car windows anyway ....
  14. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Wow Bill those are great! I have enough trouble painting HO figures - can't imagine the finesse required in N-scale.

    Doug, I may be thinking HO here but it seems to me that Preiser makes torso only figures for just that reason.

    Okay, I'll get out of here now and back to my own scale forum LOL.

    cheers
    :D Val
  15. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0
    Yes you're right - it's HO only :mad:
