DSP Satellite Build

Discussion in 'Gallery & Designs' started by Joy Cohn, Dec 4, 2011.

  1. Joy Cohn

    Joy Cohn New Member

    Joined:
    Mar 12, 2004
    Messages:
    18
    Likes Received:
    1
    I've been developing a model of a Defense Support Program satellite - the bigger variety. The project has been sitting idle a while and I wanted to take it out and dust it off. It doesn't lack much and it'll be finished in approximately 1/48th scale.

    I'll try to have build pictures soon.

    Attached Files:

  2. Zathros

    Zathros Guest

    This looks very interesting! Any background info would be highly appreciated. Thanks! :)
  3. RocketmanTan

    RocketmanTan Well-Known Member

    Joined:
    Mar 21, 2010
    Messages:
    1,159
    Likes Received:
    290
    Wow, looks great! I've always been interested in spy satellites and the like. Can't wait to see more!
  4. Joy Cohn

    Joy Cohn New Member

    Joined:
    Mar 12, 2004
    Messages:
    18
    Likes Received:
    1
    Reference Info

    Aha, of course, 'what the heck is it?'.

    I prefer to consult the Great Wiki, who has the best description around.

    One can search on 'DSP Satellite' or go here:

    http://en.wikipedia.org/wiki/Defense_Support_Program

    This model represents the later versions - DSP-I, which starts with bird #14. This design has been superseded by the SBIRS satellites.
  5. Joy Cohn

    Joy Cohn New Member

    Joined:
    Mar 12, 2004
    Messages:
    18
    Likes Received:
    1
    I'll be creating the IUS as well, so that it can be built in launch or deployed versions. Should go well with Thorsten's 1/48th Shuttle.

    Attached Files:

  6. Joy Cohn

    Joy Cohn New Member

    Joined:
    Mar 12, 2004
    Messages:
    18
    Likes Received:
    1

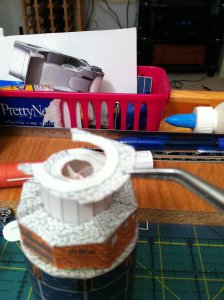

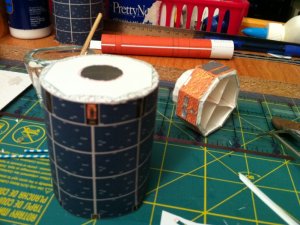

    More Pics

    I've made some progress, between work and a nasty cold which made progress difficult.

    Attached Files:

  7. Retired_for_now

    Retired_for_now New Guy

    Joined:
    May 1, 2009
    Messages:
    388
    Likes Received:
    0
    There's a simple IUS included with the Magellan Venus space probe over at the Lower Hudson Valley Challenger Center (jlesie48.com - in the post-Apollo models). Might be of use.

    Interesting project.

    Yogi
  8. Zathros

    Zathros Guest

    Great start Jtalie! I look forward to the final outcome. :)
  9. inky

    inky Member

    Joined:
    Jun 24, 2011
    Messages:
    379
    Likes Received:
    9
    This is looking great, I to am looking forward to the final outcome.
  10. Joy Cohn

    Joy Cohn New Member

    Joined:
    Mar 12, 2004
    Messages:
    18
    Likes Received:
    1
    More soon

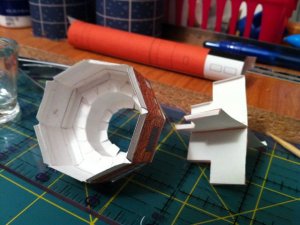

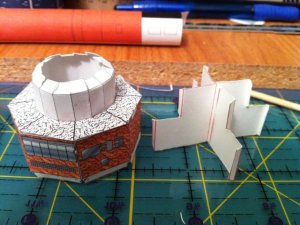

    Thanks - that internal support needed some tweaking

    As for the IUS - I've been contemplating how to do the ribs. I have the shapes drawn (I don't often need to unfold things and work out the shapes mathematically.

    This may be small enough to just paint them on: building would be simplified a great deal.

    Take a look at my Tiros at nielspapermodels.com and see what I mean. That's a big model which needs the bottom supports. But the sensors and anti-spin systems are just drawn on and look fine. I'd have to double the size before I'd consider any extra parts.

    Thanks again. This will look even better when I start adding the panel wings on the bottom.
  11. Joy Cohn

    Joy Cohn New Member

    Joined:
    Mar 12, 2004
    Messages:
    18
    Likes Received:
    1

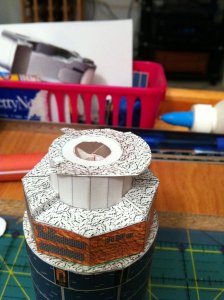

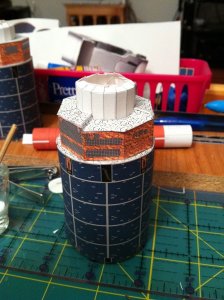

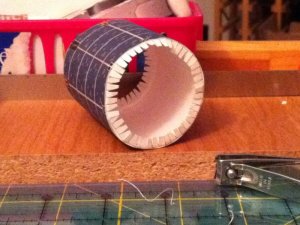

    Data Bus Installation

    Starting to look like a model.

    Also notice, the body tube in the back is the fit testing on an X-17 model. More on that later.

    Attached Files:

  12. Zathros

    Zathros Guest

    Just love it, keep it up. Many are following, even if they don't post!
  13. Joy Cohn

    Joy Cohn New Member

    Joined:
    Mar 12, 2004
    Messages:
    18
    Likes Received:
    1
    Progess

    Sorry for the lack of posts - work has been busy for a long time and during this build I realized I needed to redesign a couple of the parts on this model and create some internal support.
  14. Zathros

    Zathros Guest

    It happens to all of us, it's called life. :)
