Drawings of SAR/Spoornet diesels.....

Discussion in 'The Real Thing- International' started by MadHatter, Mar 5, 2007.

  1. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0

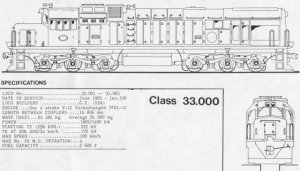

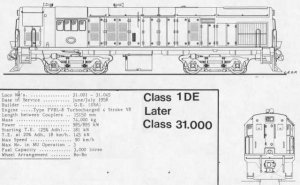

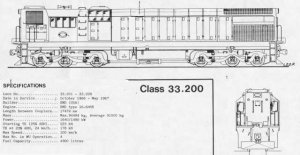

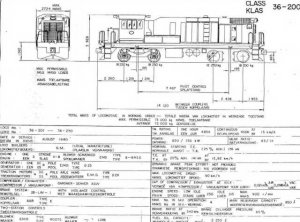

    I thought I would post drawings of our diesels if anyone is ever interested.......

    Attached Files:

  2. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0

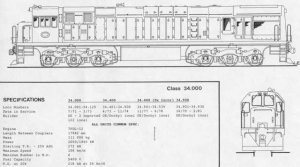

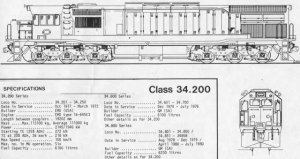

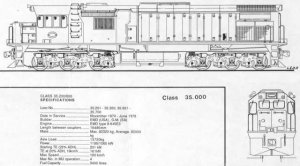

    Here is the second lot.......

    Attached Files:

  3. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0

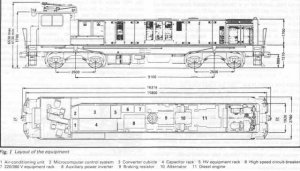

    I find the floor plan view on the very bottom interesting. Do those chairs swivel to face forwards?, or do you really sit at an angle like that when operating the locomotive? Rack this up in the really dumb question section.
  4. bigsteel

    bigsteel Call me Mr.Tinkertrain

    Joined:
    Dec 12, 2006
    Messages:
    1,380
    Likes Received:
    0
    some pretty neat lookin locos,SHOW MORE!!--josh
  5. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0
    Yes, those chaires do swivel, and as can be seen the driver can operate from either side of the cab- helpful when shunting. That last loco is known as an "Electro- Diesel" because it can either get power from overhead catinary or change over to a diesel motor.

    There is no such thing as a stupid question- because theres something I don't know about your trains which, when I need it, I hope you guys can help me with.

    Currently those are all the diesel types we have, there is another one they are busy with- the class 39 which is also an upgrade of the 34-200 (The other not shown is a class 37 which is identical outwardly, but inwardly has 300hp more.
  6. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,849
    Likes Received:
    0
    What are the manufacturer designations of these? I'm not so good with export models.

    The second 8-axle type (the one with no SAR/Spoornet class designation given) is a U20C1, correct?

    Considering that class 34.000 is GE and class 34.200 is EMD, they look very much alike.
  7. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0
    In Order of appearance: 31= U12B, 32= (1st Series) U18C1 (2nd Series) U20C1,
    Class 33= U20C, Class 34= (GE Type) U26C (GM Type) GT26MC,
    Class 35= (GE Type- not shown) U15C (GM Type) GT18MC,
    Class 36 (GE Type- Not Shown) SG10B (GM Type) SW1002. Class 38(Will Find).

    Not Shown: Class 61 (Originally Class 1-DH (Diesel Hydraulic)- GM V6 Motor.
    Class 91 UM6B variation of U6B- this loco can run on 2' gauge and 3'6'' gauge (Known as Cape Standard Gauge) by being lifted of the narrow gauge bogies and put on the 3'6'' bogies.

    I think you might be confusing the 35-000 for the 34-200. The first two on my second post are 34s. Thanks for the interest- soon to come will be the electrics!! :thumb:
  8. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,849
    Likes Received:
    0
    Maybe I am... I thought each data box corresponded to the engine below it. I know a little about GE exports, but next to nothing about GM/EMD exports. Now that I look, I can see that both engines I was talking about look like EMDs.

    I know there are two types of U20C. The U20C1 is a derivative of the earlier kind (what I think of as the long-nosed U20C) and the actual U20Cs you have are the later kind (short-nosed U20Cs).

    I can't say that I find these locomotives attractive, but they are interesting.
  9. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0
    While I don't believe in an ugly loco, I do believe in strange looking locos. The locos nick names were "Brommers" Afrikaans for Bumble Bee. 'cause of the noise they made.
  10. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0

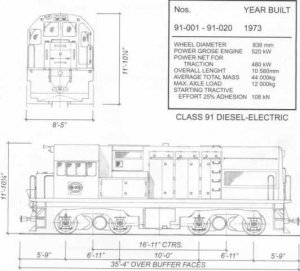

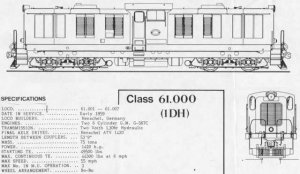

    Here are the two diesel which I left out. The class 61 is a Diesel Hydraulic. The class 91 can run on a 2' gauge chassis, but sometimes they lift them and put them on 3'6'' chassis....

    Attached Files:

  11. kritzinf74

    kritzinf74 New Member

    Joined:
    Feb 25, 2011
    Messages:
    1
    Likes Received:
    0
    Thanx for posting these Jade!

    regards

    FRancois
