DPM movie theater

Discussion in 'N / Z Scale Model Trains' started by Bill Pontin, Sep 16, 2003.

  1. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

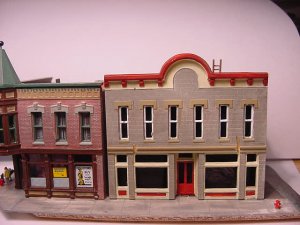

    Trying to finish up the last little section of my module town. I posted previously that I cut up a piece of luan in city blocks so that I could work at my bench on the building details. Sure saves on the back not bending over a layout. Needed a movie theater in the town of Grizzly Summit so I modified a DPM building. Started by cutting the slots for the marquee.

    Attached Files:

  2. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

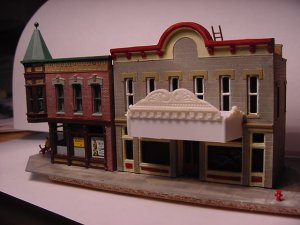

    Next I constructed the marquee using styrene and some detail castings I had. Not glued in yet, just trying the fit.

    Attached Files:

  3. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

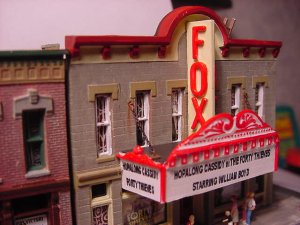

    Got so busy with other things that I did not take any more in progress pics. Here is the end result. The FOX letters I cast and attached to styrene. The movie is the Forty Thieves with Hoppy. Those I reduced and printed.

    Attached Files:

  4. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

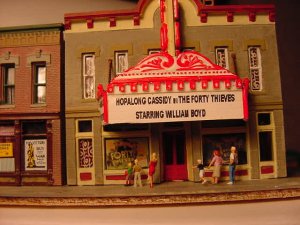

    another shot of front

    Attached Files:

  5. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    Nice kitbash Bill! That marquee is really ornate. Well done!
    Ralph
  6. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

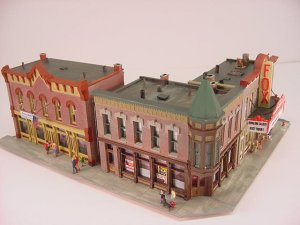

    And this is a picture of the last module puzzle piece, all ready to glue into its hole on my module.

    Attached Files:

  7. Catt

    Catt Guest

    I like it.Very impressive Mr. Bill.:D
  8. jawatkins

    jawatkins Member

    Joined:
    Aug 21, 2003
    Messages:
    238
    Likes Received:
    0
    Very nice work. Especially the marquee.
  9. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    Excellent work Bill, great looking city block you got there! :cool:
  10. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    901
    Likes Received:
    0
    Bill, love the look of the town/ and the idea of working on the bench as opposed to over the layout will give it a try for my city scene. While in the craft store I was trying to find some letters to make an advertising sign,could you tell me how and where you got your letters to cast,PLEASE. ( and how to cast)
    Pat
  11. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Lookin good Bill, could be any small town in North America.
  12. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

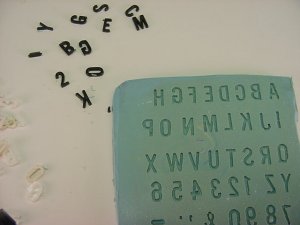

    (belg) Pat I lucked out on the letters and numbers. Found an old toy vacuum form toy. The machine was gone but the letters and a few misc. parts were in the box. I made a rubber mold of the letters and numbers. I have several posts on making the rubber molds and casting the parts.

    Attached Files:

  13. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0

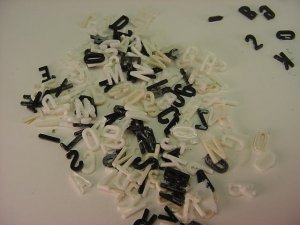

    The original letters and numbers are the black ones, the white are castings. The letters are about 3/8 inches (.035") in height. No lower case, just caps and numbers. When I am making other castings, I keep this mold handy to use up any left over casting material, this rather than dump it.

    Attached Files:
