    Vladimir: Here are three images of the "J-15" that should help you understand how it goes together:

    [​IMG]
    [​IMG]
    [​IMG]
  2. edi

    edi Member

    Joined:
    Jun 12, 2007
    Messages:
    88
    Likes Received:
    1
    I tried the MIG37 and it works, seem the Mediafire files don`t work, I couldn`t manage a download; I didn`t find the B&V
  3. Paragon

    Paragon Active Member

    Joined:
    Apr 22, 2007
    Messages:
    825
    Likes Received:
    38
    Thought so. I'll have that fixed soon enough, don't worry.
  4. Nothing

    Nothing Longtime Member

    Joined:
    Sep 13, 2006
    Messages:
    662
    Likes Received:
    2
    great looking site paragon!! just downloaded from there and worked just fine.
  5. edi

    edi Member

    Joined:
    Jun 12, 2007
    Messages:
    88
    Likes Received:
    1
    savefile works without problem :thumb:
  6. Paragon

    Paragon Active Member

    Joined:
    Apr 22, 2007
    Messages:
    825
    Likes Received:
    38
    Good news! The new Yak-25 release has come! Look for them in the Cold War section of my website.

    Also, I took a few minutes to make a new version of the Mystere, this time in French colors.
  7. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    415
    Likes Received:
    0
    I will try to make a model using Paragon's method. BTW Paragon do you color your models?
  8. Paragon

    Paragon Active Member

    Joined:
    Apr 22, 2007
    Messages:
    825
    Likes Received:
    38
    What exactly do you mean? I have to release the colored versions somehow...would you all like me to document the process in another guide?
  9. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    415
    Likes Received:
    0
    I mean: what is your technique to paint the white versions? I've tried with Windows Paint and Photoshop but it takes a lot of time and the results aren't very good.
  10. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    415
    Likes Received:
    0

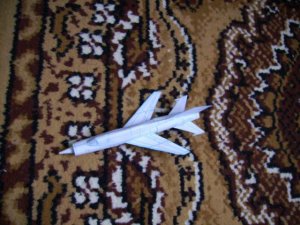

    My first design is almost ready. I have to build it now and the colour it. Is a Mig-21 E-2A a soviet prototype
  11. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    415
    Likes Received:
    0
    My first design is almost ready. I have to build it now and the colour it. Is a Mig-21 E-2A a soviet prototype.
    More informations about the aircraft on http://ram-home.com/ram-old/ye-2.html

    Attached Files:

  12. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    415
    Likes Received:
    0

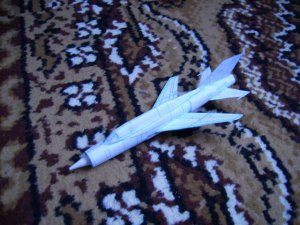

    First one build. I've made a little mistake: I've placed the wings a little bit too backward, but it was a construction mistake not a designing mistake.

    Attached Files:

  13. Paragon

    Paragon Active Member

    Joined:
    Apr 22, 2007
    Messages:
    825
    Likes Received:
    38
    The trick in Photoshop is to leave the background transparent, and use two copies of the black lines. Apply color to the one below, and leave the one above to reinforce the lines. I'm about to construct the prototype of my newest model, once I'm done with that I'll take screenshots of the coloring process for you.

    Nice looking design by the way, you used the MiG-21?
  14. edi

    edi Member

    Joined:
    Jun 12, 2007
    Messages:
    88
    Likes Received:
    1

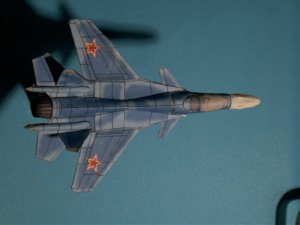

    Su-56

    was a bit tricky for me, as I never did such an ultramodern before, very elegant:p

    will do some more
    Problems: not real, but I would prefere the nose-part without tabs but with more tops, I think that`s easier

    Attached Files:

  15. Paragon

    Paragon Active Member

    Joined:
    Apr 22, 2007
    Messages:
    825
    Likes Received:
    38
    Mind showing some other views? Did you include gear in this model? And what exactly do you mean about the nose?
  16. edi

    edi Member

    Joined:
    Jun 12, 2007
    Messages:
    88
    Likes Received:
    1

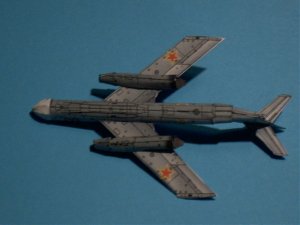

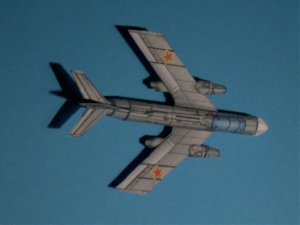

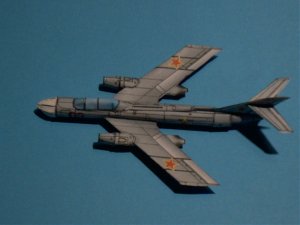

    Yak-25

    also in 1/144 as the SU-56
    all fitts well and it was a fun to build this very good looking fighter, maybe the same note about the nose, but it`s without problem
    A real GREAT thx to Paragon

    Attached Files:

  17. edi

    edi Member

    Joined:
    Jun 12, 2007
    Messages:
    88
    Likes Received:
    1
    other views are a problem the moment; MY camera is owned by my daughter and it`s not clearwhen she will visit me, latest Saturday

    No, there is no gear included, as all my models are in flying position. It´s also a question of storing the minis, gears will always break....

    The nose: if you do 14 tops instead of 7 I think it`s easier to get a round nose, and I think the tabs avoid rounding the nose

    Attached Files:

  18. Jaybats

    Jaybats Member

    Joined:
    Mar 26, 2006
    Messages:
    74
    Likes Received:
    1
    having too many tabs in a nose cone will deform the cone because of the accumulating thickness of overlapping tabs. i can see that being a problem for smaller builds :)shock:, how can you make them so small???). you either (1) reduce the number of tabs when you cut the pattern, (2) maybe just have one long tab that goes around inside the cone, and then stick the inner face of the cones to that one tab, or (3) have no tabs at all, and instead use tape inside to make the faces stick into a cone.
  19. OhioMike

    OhioMike Member

    Joined:
    Apr 16, 2007
    Messages:
    102
    Likes Received:
    0
  20. Nothing

    Nothing Longtime Member

    Joined:
    Sep 13, 2006
    Messages:
    662
    Likes Received:
    2
    i find on small parts, tabs are a hinderance. i only use tabs on large parts.
