Danscrew's UHU02 viper

Discussion in 'Science Fiction & Fantasy' started by Danscrew, Jan 20, 2015.

  1. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    194
    Likes Received:
    181
    I folks,

    Just start my new project.....the magnificient UHU02 viper MK2. I think this will be a very technical build. Plus, if you watch the scale on my cutting board, you will see that I enlarged the model about 2.5 time. So, it will be BIG.

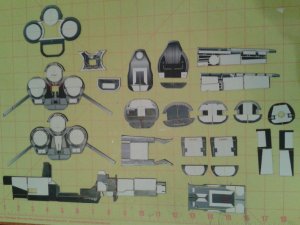

    This weekend I cut all the piece of the skeleton.

    Stay tune for more updates.....

    Attached Files:

    Last edited: Jan 20, 2015
  2. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    385
    cool we will be watching...
  3. silveroxide

    silveroxide Well-Known Member

    Joined:
    Aug 23, 2007
    Messages:
    2,153
    Likes Received:
    489
    UHUO2's viper has very tight tolerances. One of the areas that will give you problems, will be the nose section. I recommend that you do the shell first and as you build the insides, slide the skin over the finished areas and sand or cut to be able to fit the skin. Enjoy the build and your build process.

    by the way, I also upscaled mine to about 1/25 scale and it was a pleasure to build as well.
  4. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,519
    Likes Received:
    2,457
    2.5 times bigger. This is going to be interesting to see!
    Silveroxide is right. The tolerances are VERY TIGHT! I found that out the hard way when I use cardstock that was just slightly too thick. I was unable to fit some of the skins on.
    I wish you the best of luck with this project and I will be following this thread.
  5. gilgamesch

    gilgamesch New Member

    Joined:
    Nov 10, 2014
    Messages:
    142
    Likes Received:
    210
    oh this will be a big one…I will pursue this build with great interest.
  6. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,052
    Likes Received:
    3,693
    OMG!!! This is SOOO LOVELY!!! Claphands

    2.5 bigger means a scale of about 1:20. This is gonna be a hell of a beast, about 42 cm in length. :eek:

    It does however provide the possibility to superdetail her and to make a model that has never been seen before.

    Silver is right about the nose. This is the most problematic area on a scaled up version. I had to make four of them to find one that fits (somehow), and I enlarged it "only" to 1:32 scale.

    Do you plan to put some lights in it (hint - hint ;))?

    @ASC Mclaren : Hello there, here comes an almost action figure scale Viper Mk II..! :cool:
    ASC Mclaren likes this.
  7. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    194
    Likes Received:
    181
    I guy's

    Thank's for the advises. It will help me if I decide to put the skin on it but I'm not shure of that. This model as a bunch of details and, at this scale, I can put more details. It's a shame to hide them. So, I have the good idea to build my project like a cuteway drawing. This build will be a 3D cutaway project. One side will be complete with the skin and the other side without it. I even have the diorama in mind.

    And RF........for the lights......what do you think about it :cool:
  8. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,052
    Likes Received:
    3,693

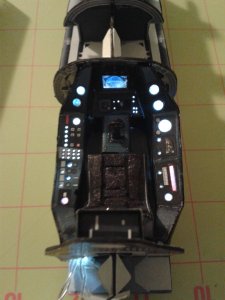

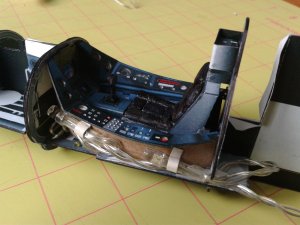

    Lights in cockpit - check ...
    Blinking lights in certain areas of the open fuselage - check ...
    Lights for engine test - check ...
    Welding light from a knuckle dragger - check ...
    Battery compartment disguised as Silveroxide's crash cart - check ...
    Ceiling or floor lights for display - check ...
    ...

    Still thinking!

    ;)
    ASC Mclaren likes this.
  9. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,519
    Likes Received:
    2,457
    It will be interesting to see it lit up.
  10. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,684
    Likes Received:
    3,525
    I love making models bigger. Some of them, like this, really give you a chance to greeble and just make it better, Pieces that were too small to detail become accessible. Very cool ideaa! :)
  11. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183
    ok i'm on, you can start,
    Let see how big this build will going to be :)
  12. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,684
    Likes Received:
    3,525
    I am not sure why the tolerances would change. If the model is scaled up, one must use a paper properly compensated by it's thickness to match the model. This could mean laminating. If you could make the model blank, and laminate on the finish outside pieces, the ability to make a virtually seamless model is open to you. Just an opinion. :)
  13. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    194
    Likes Received:
    181
  14. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,519
    Likes Received:
    2,457
    That looks SWEET!!!
    I am still thinking of how to do this with the Thunder Fighter.
  15. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,052
    Likes Received:
    3,693
  16. McTschegsn

    McTschegsn New Member

    Joined:
    Feb 24, 2015
    Messages:
    206
    Likes Received:
    435
    Watching with interest as the Viper is on my list as well... I still am a bit afraid of building UHUs models ;)
  17. mcusanelli

    mcusanelli Member

    Joined:
    Feb 26, 2008
    Messages:
    367
    Likes Received:
    109
    Beautiful work, great detailing, can't wait to see the rest!
  18. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    194
    Likes Received:
    181
    That makes a while but I am lacking time.....

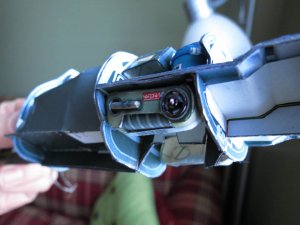

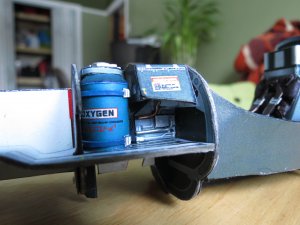

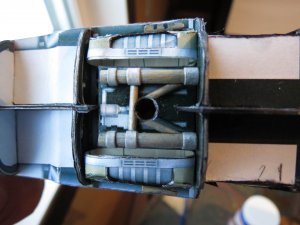

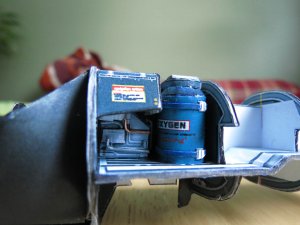

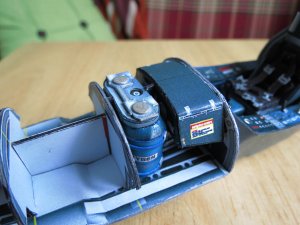

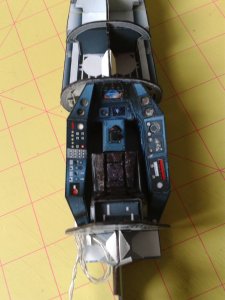

    Here is a small update

    Attached Files:

  19. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    194
    Likes Received:
    181
    Don't be my friend.....
  20. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,052
    Likes Received:
    3,693
    INDEED - they won't bite if you treat them well! :)
