    Alright, I got some new glue today.

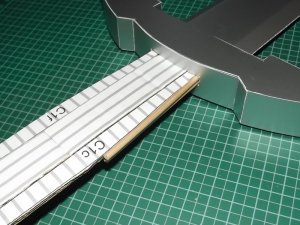

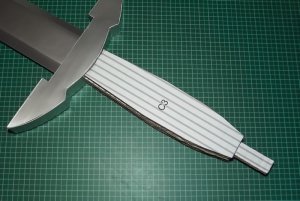

    I feared that the connection between handle and blade was too weak and inserted some wooden rods. That wouldn't have been necessary if I had cut the parts in a different way (the ribs are going horizontally whereas they should have gone vertically).


    Another piece of corrugated card is added to the top and the bottom.

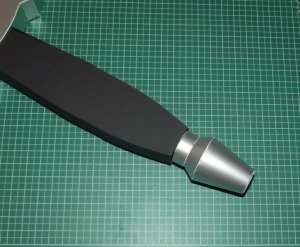

    The handle part is covered with black card.



    It is supposed to be glossy but I only had some dull card available. Next will be the pommel. :)
  2. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,665
    Likes Received:
    1,082
    @Revell-Fan If you ever need to gloss anything up:- In the plastic modelling world the (American) product called "Future" is a self-levelling gloss coat used for parquet and wooden floors. Here in the Netherlands, it's called "Pledge Parket Plus."
    Add a few coats of that and build up the layers and you can achieve the sheen of glass, or even metal. Its water based too, and it doesn't yellow over time either.
    And with reference to another thread of mine, fish moths (zilvervisjes) hate the stuff!

    Remember my canopy I did for the Raptor ???? http://www.zealot.com/threads/bsg-medevac-raptor.173185/page-3#post-957169

    [​IMG]
    zathros likes this.
  3. Cybergrinder

    Cybergrinder Member Extraordinaire

    Joined:
    Jun 24, 2014
    Messages:
    859
    Likes Received:
    454
    @Revell-Fan Well, silence comes with a price.... The Euro - South African Rand exchange rate is pretty good at the moment. Let's hear your offer.... Kapish?
  4. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    @Cybergrinder : What? I can't hear you - it's so quite here! ;)

    @DanBKing : Thanks for the tip! I'll take a look on occasion; I live only a few miles away from Winterswijk. ButI may remember that it is available here in Germany, too (called "Erdal Glänzer"). :)
  5. Cybergrinder

    Cybergrinder Member Extraordinaire

    Joined:
    Jun 24, 2014
    Messages:
    859
    Likes Received:
    454
    That's because I'm stealthily creeping up on you.... D'oh.
  6. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,704
    Likes Received:
    3,532
    Erdal Glanzer sounds like a girl I knew in 3rd grade!?! She did have a shiny forehead. :)
  7. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    :lolsign:

    "Erdal Glänzer" is the little sister of "Meister Proper" (just google it up to know more). ;)
  8. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,665
    Likes Received:
    1,082
    I heard that he Cillit Banged her too .... :eek::biggrin:
  9. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    No, she managed to escape on her faithful horse Ajax before he could do so. She is now together with her former college boyfriend, Domestos. He has a small farm in Villabajo. ;)
    DanBKing likes this.
  10. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    Today I finished the pommel. Again I obeyed the original way of construction but I found out that some parts could be omitted which reduced the parts count.

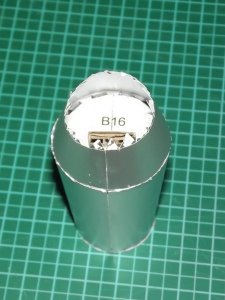

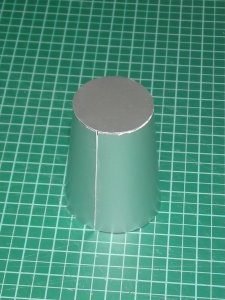

    The end cap is a simple cone.

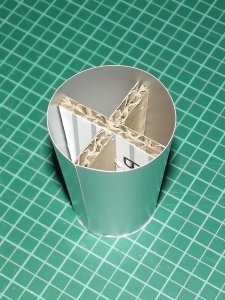

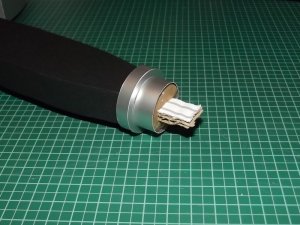

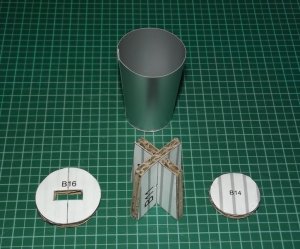

    It is equipped with an internal skeleton:

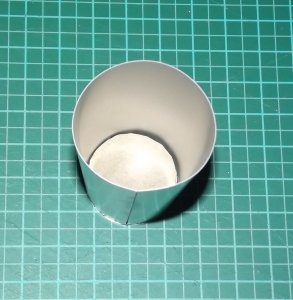

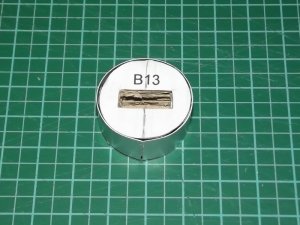

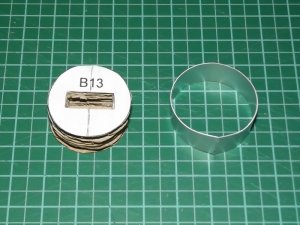

    Next come two rings which are constructed the same way: A laminated center piece is coated with silver card.



    Last edited: Jul 25, 2015
    Rhaven Blaack, bgt01, zathros and 2 others like this.
  11. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701

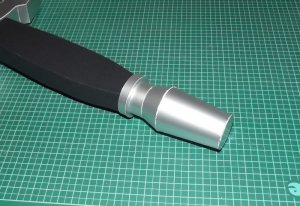

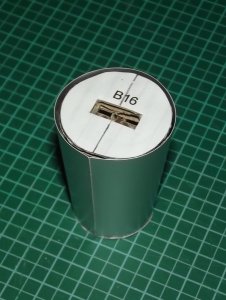

    The rings are pushed over the skeleton. I did not have to use any glue here.

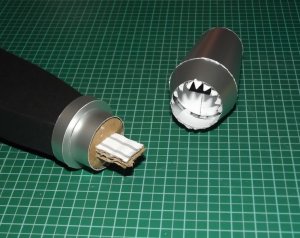

    The end cap is glued to the second ring and the skeleton.




    :)
    Rhaven Blaack, bgt01, zathros and 4 others like this.
  12. blake7

    blake7 Member

    Joined:
    Apr 20, 2012
    Messages:
    448
    Likes Received:
    418
    Looks Fantastic! Can you take a picture of the whole sword, so we can see all of it?
  13. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    I will, of course. Unfortunately I just noticed that the shape of the pommel was wrong. :sadno:

    Luckily I didn't glue it to the handle so I was able to easily pull it off. A new pommel is on the way.:)
  14. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701

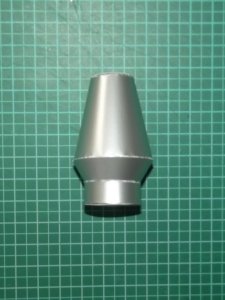

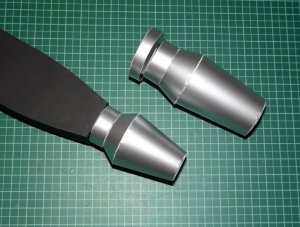

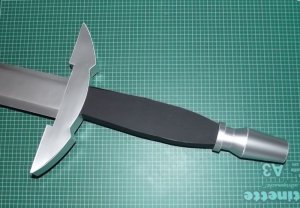

    The new (now screen-accurate) pommel is ready.


    It fits so well that I did not need to glue it to the handle.


    A comparison of the old one and the new one.


    Now I am pleased. :)
  15. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,704
    Likes Received:
    3,532
    You should be. This is coming out great!! :)
    Revell-Fan likes this.
  16. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,704
    Likes Received:
    3,532
    Wow, the things you learn here. They should have named their dog "Spot". :)
  17. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    Now I am continuing with something that was not part of the original plans: The sheath. This is completely my design but I'm staying as faithful to the sword construction to maintain continuity and quality.

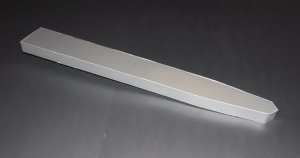

    It took me three attempts to come up with a suitable and easy-to-build shape:

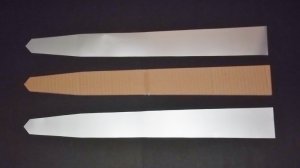

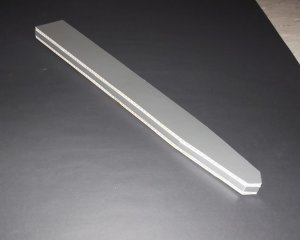

    The silver card is laminated to the corrugated card. You need two of these, one for each side:

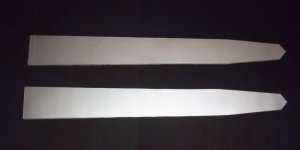

    The pattern for the side walls is traced onto silver card:

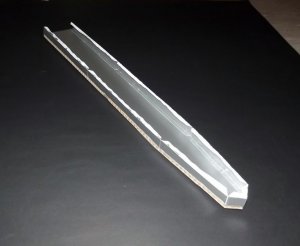

    The side walls are attached


    and the other side of the sheath is glued to the walls:

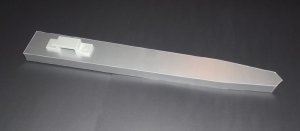

    I hope to get the final steps done tomorrow, which is glueing a strip of silver card around the walls for a smooth finish and adding the clamp to the back to allow the sheath to be attached to a belt. CU! :)
    Rhaven Blaack, bgt01, blake7 and 3 others like this.
  18. Cybergrinder

    Cybergrinder Member Extraordinaire

    Joined:
    Jun 24, 2014
    Messages:
    859
    Likes Received:
    454
    Wow. Looking really good! I'll refrain from punning at this point of time... need more coffee....
    Revell-Fan likes this.
  19. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    Never mind, it's all good! :)
    Cybergrinder likes this.
  20. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,066
    Likes Received:
    3,701
    The side walls are attached.

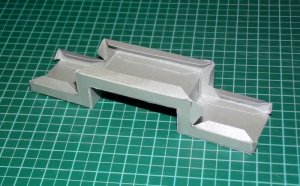

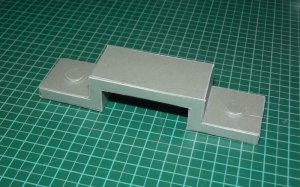

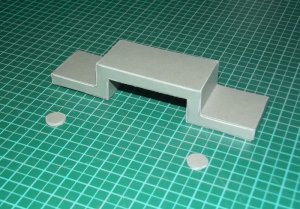

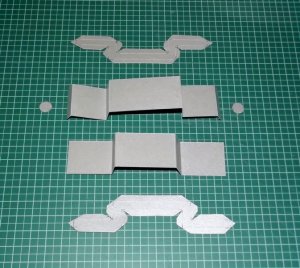

    The single parts of the belt mount are made of a different silver card:

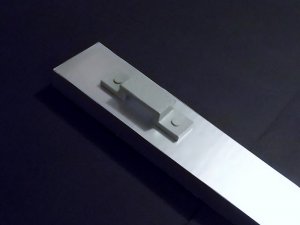

    Assembly:

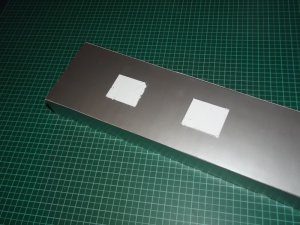

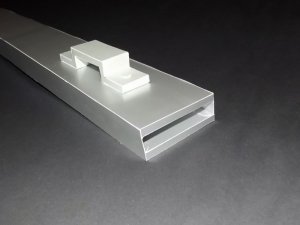

    It is glued to two blank areas on the back side of the sheath:





    The final touches: Some mirror card is glued to the top part to hide the core of corrugated card.


    Now everything is put to dry completely. :)
