    Ohh... thank you gentlemen! ~ I hope you have fun building her! ~ I felt a little weird posting a model that wasn't quite...complete. I'd be interested to hear how you tackle, and what materials you use for the engine struts.?

    The Devastator is going to be quite a challenge ( for me) I'd like it to be at least 'acceptable' for the Avn guys. Oh well, at least there's plenty of members I can scream HELP to..
  4. Gearz

    Gearz Member

    Joined:
    Mar 13, 2006
    Messages:
    586
    Likes Received:
    4
    GaaaaaaaAAARRR! You... liittlle... @&*#%&^.....[ tantrum] = Aeroplane guys....HELP!

    Being my first attempt at an aircraft Dev, I guess a few hiccups were inevitable, although I wasn't expecting one straight out of the barrier.. After lovingly texturing my Devastator model, I've discovered much of it was a waste of time ( I'll have to re-design a chunk of the 3D mesh)

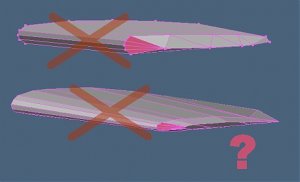

    Brain-strain # 1 ~ How do you get an aerofoil / wing to un-fold as a single part ? ( joined at leading edge) I've tried multiple variations ~ open ended wing tips / closed wing tips, unrealistic thickness at the wing tips ++++ ... I just can't figure out how to translate the rounded + tapered leading edge, to flat wing tips ~ so the wing un-folds as a clean 'upper and lower surfaces' etc. Is there a trick to it?, or is it a limitation of the META / PEP combination.. ( + designer).. is there a post addressing this problem/design issue anywhere.?

    I'd be grateful for any tips..
    wall1

    Attached Files:

  5. foxmalcolm

    foxmalcolm -=3D Modeler=-

    Joined:
    Mar 30, 2008
    Messages:
    35
    Likes Received:
    0
    Devastaor Help

    Hi I am new to this forum and I think I can help with your Devastaor model.
    When Crimson Skies came out several years ago I made 3D renders of the aircraft for the Flight Clan I was with.
    Recently I started digging up my old files after seeing [and building] your Pandora model.
    Here are some of my old [CS] models:
    http://forum.zealot.com/attachment.php?attachmentid=66503&stc=1&d=1206901691
    I can remake these models so they would be acceptable for card modeling, and I can send you the files.
    I would like to be able to have some planes to go with my zeppelin.
    So let me know what assistance I can give?

    Attached Files:

  6. Ziga

    Ziga Member

    Joined:
    Feb 4, 2004
    Messages:
    84
    Likes Received:
    0
    That's fantastic! Devastator and Fury are my favorite Crimson Skies planes. I's love to see paper models of these two.
  7. ARMORMAN

    ARMORMAN Guest

    Go for it, Dude!
  8. foxmalcolm

    foxmalcolm -=3D Modeler=-

    Joined:
    Mar 30, 2008
    Messages:
    35
    Likes Received:
    0
    Ok, I went back and started to simplify the models and I have finished the Fury.
    http://forum.zealot.com/attachment.php?attachmentid=66539&stc=1&d=1206929389
    Then I hit a little snag; I am pretty ace when it comes to 3D modeling programs like 3DS Max, Bryce, Lightwave, etc but it has become painfully obvious that I need to learn how to unfold, I am using Pepakura Designer2 and it totally twists my models around.
    I found some tutorials and I will spend the next few days figuring out how to use it properly. Hopefully I will have mastered it at least enough to design, print and build the first paper fury [that I know of].

    But if anyone wants to give me a hand I'ld appreciate it.

    Attached Files:

  9. ARMORMAN

    ARMORMAN Guest

    not too bad....the join/separate feature will become your best friend in PK.
  10. Gearz

    Gearz Member

    Joined:
    Mar 13, 2006
    Messages:
    586
    Likes Received:
    4
    Welcome to the forum foxmalcolm! I'd forgotten about his thread, and I'm sorry you didn't come along a few months ago :( ~ that's VERY nice work indeed! I would have loved to start developing with your mesh, however, I have a Devastator card model almost finished. Thanks for the offer on this one anyway mate, its appreciated.! With your 3D skills you'll have a head start on the un-folding. There are lots of resources here in regard to designing ( un-folding) have a good look around and I'm sure we can help you to get started.



    Devastator

    As long as this thread has bumped, I might as well move camp. There's a bit about the Crimson Skies Devastator in THIS thread.

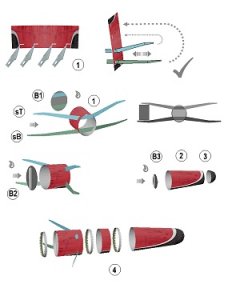

    The plot so far... Thanks to the way I've designed it, there are a few vital steps in the build, so I'm just making up an Assembly Guide to ensure a happy build + few tweaks etc

    Oh yeah.. If any Aircraft builders are tuned in ~ Is it a usual feature on Aircraft models (commercial?) to have options for rotating spinners/props..??? or is that left entirely up to builders..? ~ Is it worth including a few extra parts (just in case) ?

    Attached Files:

  11. Lex

    Lex Dollmaker

    Joined:
    Dec 1, 2006
    Messages:
    1,930
    Likes Received:
    0
    ...I must build this!!! :D
  12. Ziga

    Ziga Member

    Joined:
    Feb 4, 2004
    Messages:
    84
    Likes Received:
    0
    Another dream is coming true. Thanks!
  13. widget

    widget Member

    Joined:
    Feb 8, 2004
    Messages:
    174
    Likes Received:
    1
    Spinable props might be fun just for the challengee,but I don't think that they really addd anything to the completed model for display purposes.
    Just my $.002
  14. rojo

    rojo Member

    Joined:
    Oct 13, 2006
    Messages:
    48
    Likes Received:
    0
    Awesome work Gearz! These are going to be great builds, thanks.
  15. Gearz

    Gearz Member

    Joined:
    Mar 13, 2006
    Messages:
    586
    Likes Received:
    4
    Thanks gents! Barring flood or earthquake, the Devastator should be good to go in week or so.

    widget ~ your right, I might just include a few optional parts to make experimentation easier.

    foxmalcolm ~ howzit going mate? are you having any luck un-folding the Fury??
  16. foxmalcolm

    foxmalcolm -=3D Modeler=-

    Joined:
    Mar 30, 2008
    Messages:
    35
    Likes Received:
    0
    I have had a few problems unfolding it with PD.
    The 2 most recuring problems were scale and hidden objects.
    eg. I would unfold one of the wings and two exact same sized pieces would each be a different scale. And for some strange reason instead of being flat PD would "fold" a piece under itself (very frustrating).
    But all in all I believe I have nailed out the last of those kinks and I am on a test run as we speak, I will let you know later on today how the completed model goes.
    I found that instead of "unfolding" the model I will instead "peel" the model. This may pose a problem for those with slightly less dextrous fingers but it seems to make the model stronger without the need for support sections.

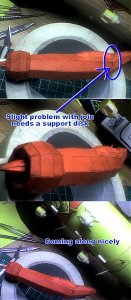

    Have a look:
    http://forum.zealot.com/attachment.php?attachmentid=66609&stc=1&d=1207075136
    http://forum.zealot.com/attachment.php?attachmentid=66604&stc=1&d=1207073988
    this shows the main body, cockpit and engine.
    Also the model currently is at 1:72 scale
    (10-12 cm) so its a bit on the small side.
    I will texture it at a latter point though.

    Attached Files:

  17. foxmalcolm

    foxmalcolm -=3D Modeler=-

    Joined:
    Mar 30, 2008
    Messages:
    35
    Likes Received:
    0
    Quick update on the Curtis-Wright J2 Fury

    Hi guys just a quick update on the progress of the Curtis-Wright J2 Fury.
    Its going great, a little tricky but puts together really well.

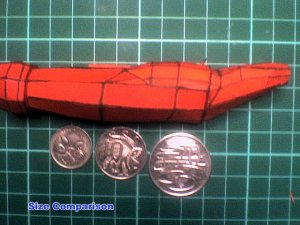

    http://forum.zealot.com/attachment.php?attachmentid=66634&stc=1&d=1207096794
    I think that the only main change I would do to it is change the scale I printed it at. The final model when complete currently fits in my hand.
    I think most people might find that a bit too small.
    http://forum.zealot.com/attachment.php?attachmentid=66639&stc=1&d=1207100133
    So I'll release two versions, one at 1:72 the other at 1:32

    Also given the large variety of pirates, security firms and militias available what do people think of having a decal sheet instead of textures?

    Attached Files:

  18. foxmalcolm

    foxmalcolm -=3D Modeler=-

    Joined:
    Mar 30, 2008
    Messages:
    35
    Likes Received:
    0
    Almost Done

    Well I am almost done, realised that the ends of the rear wing were too small and too complicated so I chopped them off.

    Anyhow I have a progress pic for you.

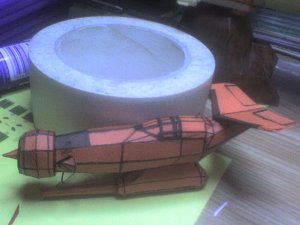

    http://forum.zealot.com/attachment.php?attachmentid=66661&stc=1&d=1207118100
