Crichton from Buck Rogers

Discussion in 'Science Fiction & Fantasy' started by Revell-Fan, Jun 6, 2012.

  1. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685

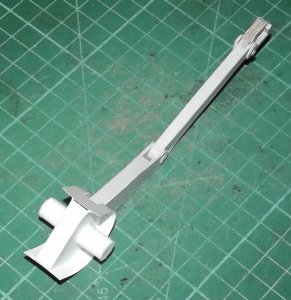

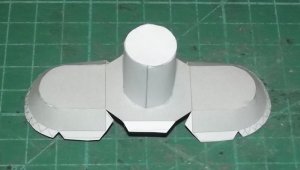

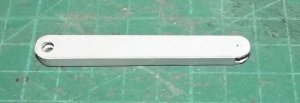

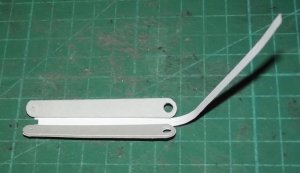

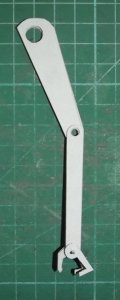

    Here are the first pics of the arms. The wrist is very small (if not tiny). As a result of this, the joint cannot be made with a paper tube; I'll use some wire instead. The holes were punched through the single parts with a nail and a hammer. The last two pics show how everything will move in the end.

    I made an interesting discovery. If you skip the cover of the two side parts of the "hand" you may equip Crichton with an extra finger. This would dramatically increase his movability and make the hand look more like a real hand. I'll add it as an option (albeit it is not canon :cool:).

    Attached Files:

  2. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    The arm looks really good.
  3. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209
    Good Lord! That looks great! I am fearing the 1:18 build, though!
  4. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685
    Hi, Big J! I was just thinking about you. At 1:18 scale the model would be 1/3rd of the size I'm doing it. So you will definitely experience some problems with the joints. You certainly won't be able to make the hands movable; 1:6 scale is definitely the line for them. Everything below that scale is impossible or VERY difficult to make. It wouldn't be too much of a problem to use the joints on larger scales (1:4, 1:1) but I definitely won't recommend using them at 1:18 scale. In addition, the wheels will become very small and I doubt that the telescoping neck will be buildable. What about a simplified version with static wheels, interchangable neck and arm and shoulder joints only???
  5. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209
    That sounds great!
  6. Maverick65

    Maverick65 Member

    Joined:
    Jul 14, 2012
    Messages:
    156
    Likes Received:
    5
    Hey RF, great job on Crichton. The movable parts are just awesome. Was wondering are you using a spray on adhesive when you laminate the pattern to the cardstock? And what cardboard cardstock are you using? Just a couple of questions I've been meaning to ask. Thanks for all you do.
    Reguards,
    Rick
  7. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685
    Since the parts are not that big I'm using Elmer's glue for laminating. Sparingly, only a few drops, spread over the back side of the part. The cardboard is recycled cookie packaging. It is approx. 0.65 mm thick so I use several layers to achieve the desired thickness. The laminated parts will be glued to the back or the inside of the actual arm parts (I'll explain later). So the area around the joint is reinforced and the part itself becomes sturdier and doesn't bend too easily.
  8. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685
    Are you in for a quick and dirty test build??? :cool:
  9. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    Oh, man...

    RF

    If I weren't so busy with so many things and trying to do it all at a slower pace, I would volunteer right now:twisted::oops:. Sorry, I'll have to (AAAAAAARRRRRGGGGGGGHHHHHHHH) pass.:curse:wall1
    Or were you talking only to ASC?:confused:
  10. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209
    In 1:18, absolutely! It would be a tremendous honor!!
  11. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685
    Actually I was referring to ASC, but thanks for trying! :wave:
  12. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685
    Then ready your tweezers and magnifying glasses! I'll drop you a mail shortly. :thumb:
  13. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209
    Sweet! I'll be looking out! Thank you for getting me back to the build table!
  14. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685
    An arm and ... no legs ! ;-)

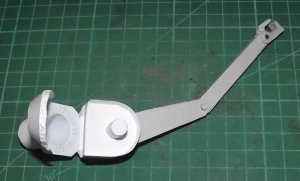

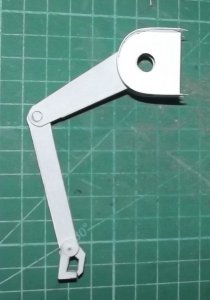

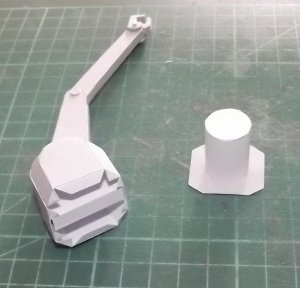

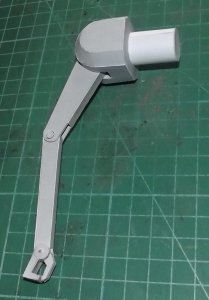

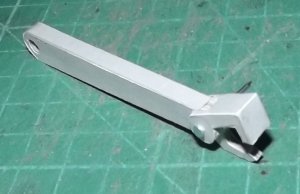

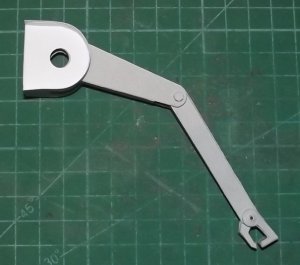

    Hi, folks! Here come many new photos of the arms.

    First of all, please let me explain what I meant earlier concerning the laminated parts. Since the arm parts are very thin but long it is necessary to reinforce them somehow. In addition, you must not make them too thick because the joints wouldn't work any more then. All arm parts consist of two side parts and a strip connecting them. If you laminate the parts to cardboard as usual you'll have to adapt the width of the rim strips. At a certain point these strips would become too thin; they would work then, though, but it would be very difficult to work with them. So I came up with another idea which solved two problems at the same time.

    The laminated side parts are glued to the inside of their counterparts on the arm part. This gives the arm parts additional strength and a base to which the rim strips can be attached. So flaps are not necessary. The rim strip is connected to the side parts which ensures that the parts have their proper width when assembled. If you work carefully (like me ;-) ) everything should slip into place seamlessly and stay movable.

    Attached Files:

  15. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685

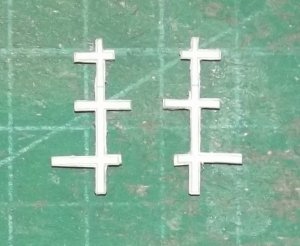

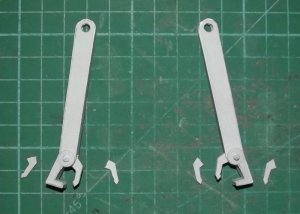

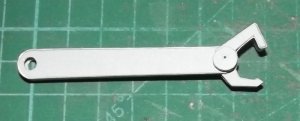

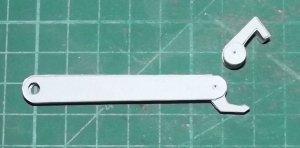

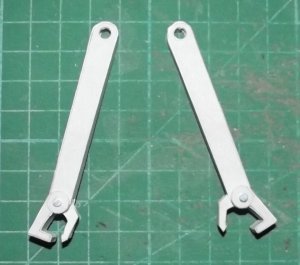

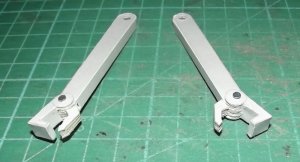

    The next set of pictures show how the fingers are attached. The nail used in the test-fit pics was essential here. I skipped the wire idea because it would be too weak in this case. I stayed with the nail and snipped it to shape after assembly.

    Attached Files:

  16. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685

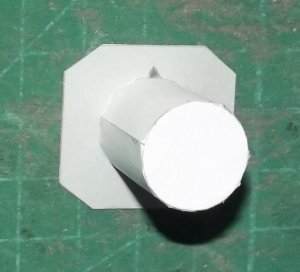

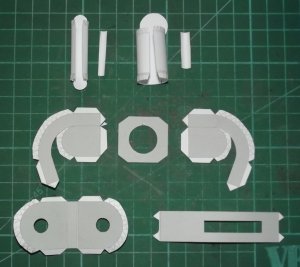

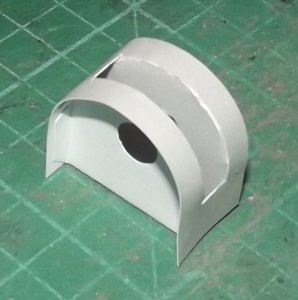

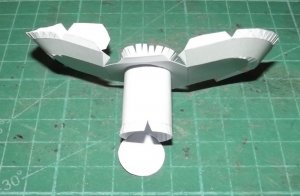

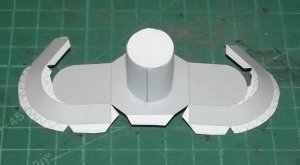

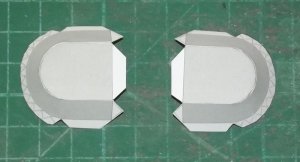

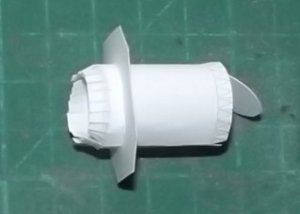

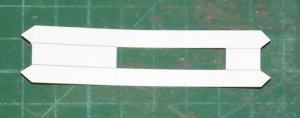

    Here comes the shoulder. The first version was very difficult to build which made me revise the plans a bit.

    Attached Files:

  17. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685

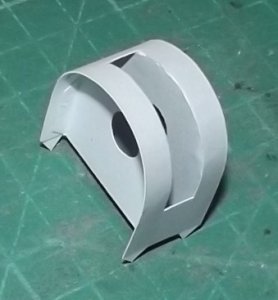

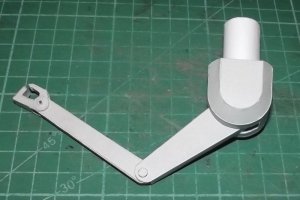

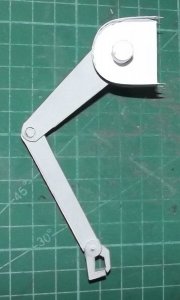

    And here is the revision. It doesn't differ much from the previous version but it is much easier to build.

    Attached Files:

  18. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,046
    Likes Received:
    3,685

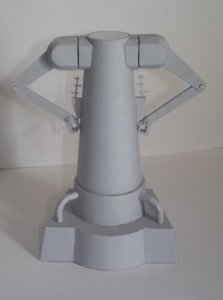

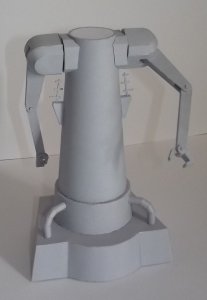

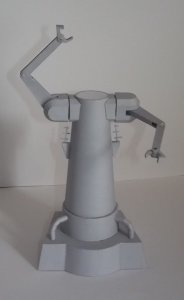

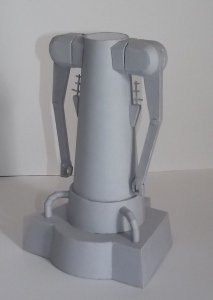

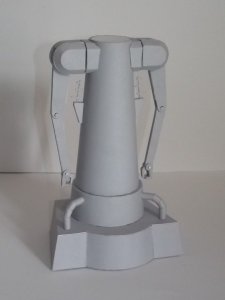

    Some decoration and the first pics of the arms attached - including a very familiar pose..!

    Next comes the :curse::curse::curse:wall1wall1wall1:curse::curse::curse: neck.

    Stay tuned! :wave::wave::wave:

    Attached Files:

  19. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    Whaaaaaaaat????

    RF

    Articulated arms? You mean it's a poseable model? Oh, boy, I soooo do NOT deserve that...sign1
    Terrific job, man!:thumb::cool::thumb::cool::thumb::cool:
  20. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    Crichton is coming along VERY WELL!!!:thumb::thumb:
    By the way, you are suppose to be making just a paper model, not reconstruction the original robot!sign1
    You are doing an OUTSTANDING JOB!!!:thumb::thumb:
