Creating realistic waterfall

Discussion in 'Photos & Videos' started by papa smurf37, Nov 12, 2002.

  1. papa smurf37

    papa smurf37 New Member

    Joined:
    Oct 23, 2002
    Messages:
    22
    Likes Received:
    0
    Wish to convincingly model small, low waterfall on a creek adjacent to small grainmill on our HO sectional layout. The grainmill naturally gets it's water power by the diversion of upstream flow thru sluce to waterwheel, with discharge returning to creek below falls. Will probably do creek by painting bed with the usual dark center/lighter stream edges. I'd then apply several coats of poly varnish for water. Low foliage will overhang water's edge in places. Unsure how to proceed on waterfall itself......Tom:)
    P.S. Has anyone ever done a model of a fish ladder? This could fit in opposite waterwheel.
  2. billk

    billk Active Member

    Joined:
    Jun 13, 2001
    Messages:
    1,192
    Likes Received:
    0
  3. Vic

    Vic Active Member

    Joined:
    Feb 1, 2002
    Messages:
    1,771
    Likes Received:
    0
    I've never tried it but have seen some rather convincing waterfalls made from that "angel hair" stuff that you find at Christmas time. It was "combed" out, glued in place and coated with clear resin.
  4. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

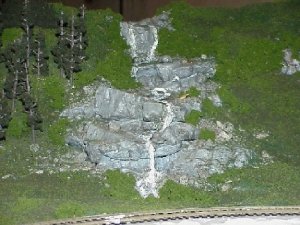

    Here are some pictures of a waterfall that I did on my layout. I used Woodland Scenics Realistic Water and Water Effects.

    First I shaped the area the way that I wanted. I painted the bottom using dark grays in center and lighter shades as I approached the shoreline. I then added rocks and talus. I colored the rocks and talus as necessary. Next I added some driftwood.

    I then began pouring the Realistic Water into the ponds. I added it in layers about 1/8 inch deep. I let the layers dry as indicated on the instructions for at least 24 hours each. Once the water was at the depth I wanted, I then went over it with the Water Effects. Water Effects goes on white but dries clear after a few days and it has the consistency of toothpaste. I used an old brush to tease it into waves. I also molded it into the waterfalls themselves. About a month after I was done and everything had dried completely (Water Effects took a long time to dry) I dry brushed white Creamcoat over the areas where I wanted foam to appear.

    Now the only thing left is to add water spray at the base of the falls and finish the trees and other foliage. The water spray will be made from teased cotton that is sprayed with scenic cement. I haven’t tried this part yet.

    Attached Files:

  5. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

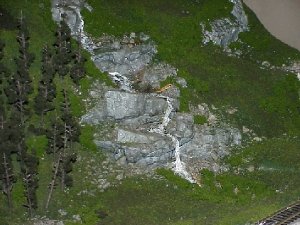

    Here's another view:

    Attached Files:

  6. John Sneed

    John Sneed Member

    Joined:
    Nov 16, 2001
    Messages:
    82
    Likes Received:
    0
    waterfall

    Tom
    This months MR has a waterfall that is partly deverted for a power plant. It tells you how he did it. That may help
    John
  7. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0

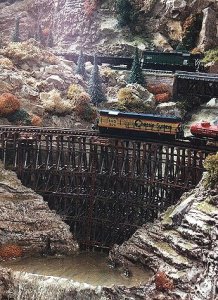

    Hi Tom, here's a photo of my old N-scale railroad with a waterfall I created using glass fibre (Car stuff) and yacht varnish for the top coat.
    Shamus
    [​IMG]

    Attached Files:

  8. saktron

    saktron New Member

    Joined:
    Aug 12, 2002
    Messages:
    3
    Likes Received:
    0
    Hello everyone,

    This guys has an articles on doing Waterfalls and Rivers how to under a button on the left side of his webpage called "Published Articles". I am giving it a shot seems not to be too hard.
    Lex Parker Devner & Rio Grande Western
  9. NYCentral

    NYCentral Member

    Joined:
    Aug 29, 2002
    Messages:
    270
    Likes Received:
    0
    Hi, Tom,
    the last waterfall I made I used clear silicone house caulk (the kind in a tube), you can shape it with a small stick to make ripples and waves. And then used angel hair (which I stuck in while the caulk was still soft) along the bottom for spray, I didn't need very much. Then painted white highlights on the caulk. It looked great and was very cheap to make since I have the caulk for other projects. I plan on using the same idea on my new layout when I get that far. You could try it out on a scrap area and the cost is next to nothing (caulk cost about $2.50 when on sale).
  10. Casey Feedwater

    Casey Feedwater Member

    Joined:
    Jun 11, 2002
    Messages:
    828
    Likes Received:
    0
    Shamus, that's an utterly stunning scene. I love it! It's one of those to be studied very closely. You still have much to teach the rest of us. Many thanks. :)
  11. Vic

    Vic Active Member

    Joined:
    Feb 1, 2002
    Messages:
    1,771
    Likes Received:
    0
    Second on that Brother Casey....I just moved George Sellios to the #2 postion and moved Shamus up to #1:D
  12. t. alexander

    t. alexander Member

    Joined:
    Jun 21, 2002
    Messages:
    550
    Likes Received:
    0
    Goes for me too. If me and another Nscale guy had to go down that ladder and he expressed some concern as to whether it was good or not. My reply would be "what are you talking about man, Shamus built it" :D

    t.
