Covered Water Tank

Discussion in 'Robin At His Best' started by Matthyro, Jun 22, 2003.

  1. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    This is my N gauge version of the real water tank still standing in the small Saskatchewan town of Harris. [​IMG]
  2. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    Wow Robin. How did you get that planking look on the outside?
  3. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Dick, the planking is 1/16th strips of cerealboard. It took me a long time to get them cut and glued in place.
  4. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    No doubt it took awhile, but well worth the effort Robin! :cool: Another beautiful structure.
  5. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    As usual, fantastic work. cutting and pasting those strips has to take patience and perseverance, but the finished product makes it all worthwhile.

    Don
  6. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    As usual, a first class modeling job, my friend! That's an interesting structure, designed for a cold climate, I guess?

    I have two questions, Robin:

    A prototype question: How did they heat those tanks - was there a crew of some sorts living in or near these tanks to put some more coal or wood into the stove? Or was this the job of the passing locomotive crews?

    And a question about your modeling: How did you model the water spout? It looks great!

    Ron
  7. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    901
    Likes Received:
    0
    Robin excellent work as usual. I was wondering if you have ever tried just scoring the cardboard and assembling a section at one time.If you wanted to you could cut out a few "boards" here and there to make them stick out a little more.
  8. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks for the kind words guys. This type of tank was common in northern regions. It had a heater inside which provided sufficient warmth to keep the water from freezing during the winter months. A hapless "fireboy" tended the wood stove and also operated the spout. This reminds me that I forgot to put a chimney pipe up so will have to do that.
    Ron, the water spout is made from a piece of waste sprue from a boat kit.
  9. Strthoky

    Strthoky Member

    Joined:
    Feb 8, 2003
    Messages:
    113
    Likes Received:
    0
    ya know after being on here for a couple months and seeing your awesome cardboard modeling one thing pops into my head...
    you must not eat TOTAL.. cause it takes several bowls of anyother ceral to equal one bowl of total.. :D :D and if you ate total you wouldn't have enough boxes :D :D :D

    Looks great Robin!!!
  10. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    Nice one Robin! What an interesting and well weathered structure! Say, how many buildings have you created so far?
    Ralph
  11. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Ralph, so far about 50 scratchbuilt structures and I have about the same number of kits I bought and built before I new I could build my own. Building kits was sure a help as it gave me a feel of how they go together.
  12. Strthoky

    Strthoky Member

    Joined:
    Feb 8, 2003
    Messages:
    113
    Likes Received:
    0
    Dang I musta done it backwards.. I haven't bought a kit yet.. LOL
  13. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0
    Hi Robin,

    Nice tank! I have often seen these closed towers described as CPR Water Tanks, but I assume that CN and other Canadian / northern roads had them too...?

    Anyway, my question is - how did you make the roof? I assume from the edges visible in the picture, that it is not a smooth round roof, but rather one made up of sections (6 or eight...?). I have tried a few times to put a roof on my tank, to no avail! I just can't get the pieces to line up... :mad: The roof I have planned is supposed to be made of 12 triangular pieces :(.

    Any advice?!?!

    Thanks!

    Andrew
  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

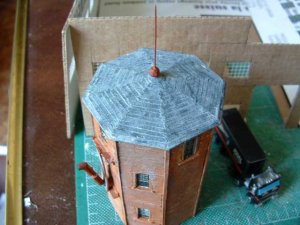

    Andrew. This first photo shows the 8 sided roof. The shingles are paper strips.

    Attached Files:

  15. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

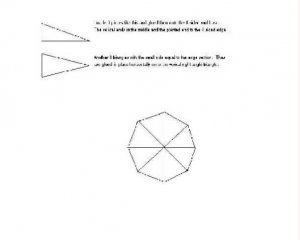

    This next photo is a rough drawing I did using MS paint and hope it is enough to show you how I did it. Basically I cut 8 right angle triangles with the vertical edge the height of the roof slope. They are glued to the roof base vertically with the vertical edges in the centre of the roof. The next 8 triangles are cut wedge shape and are glued to the roof base along the edges and on top of the right angle pieces

    Attached Files:

    • roof.jpg
      File size:
      14.4 KB
      Views:
      224
  16. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,594
    Likes Received:
    0
    Man, that is just a fantastic building! Robin, you're structures are always so well done.

    Gary
  17. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0
    Thanks Robin for the pointers!

    I think I can tackle that pesky roof now. I'll try to get a picture when it is done.

    Andrew
  18. kettlestack

    kettlestack Member

    Joined:
    Jan 18, 2002
    Messages:
    898
    Likes Received:
    0
    Geeeee Robin, You went and did it again!!:eek:

    Don't you ever pick on Simple structures to build??? :D :D
    It looks great! All that time spent cladding the card with timber sure paid dividends.

    Errol
  19. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Very nice Robin! And an interesting little bit of history too.

    cheers
    Val
  20. Mikol

    Mikol New Member

    Joined:
    Jul 2, 2003
    Messages:
    3
    Likes Received:
    0
    scale

    Excuse, but what scale are we talking here? oh yes dont mistake youve some great modeling here but could I suggest a base for the structure to level it. or not?:confused: :confused: :confused:
