Concrete Arch Bridge... Help.

Discussion in 'FAQs' started by marty w., Aug 25, 2002.

  1. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    Hi all,
    I have been messing around with the design of a concrete arch bridge for about 5 weeks. Any books I have found about bridges have very lightly touch on the subject and with few pic's.

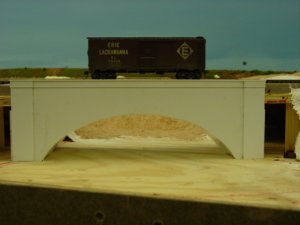

    Anyway , I took my idea's and built this bridge, see attached.
    It's not done, it still needs concrete form marks, painting and maybe a handrail.
    Well tell me the truth, don't hold back, want do you think?
    Does it look right?
    Anything missing?
    Thanks for you help.
    Marty

    Attached Files:

  2. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    OH.... It will span a river and that's a 40' boxcar for size ref.
    Marty
  3. Edavillenut

    Edavillenut Member

    Joined:
    Aug 5, 2002
    Messages:
    206
    Likes Received:
    0
    looks good to me. just gave me an idea for my layout. the big Pink foam river bridge has been in place of where i want to put a bridge, but cant find one i like.
  4. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Other than the river is missing it looks great to me! :D :cool: :D
  5. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    That's a classic design, & a very nice piece of workmanship, Marty! :cool:
    How did you make it?
    Wood? Plaster? Is it a trimmed down tunnel portal?
    Now all you need is some water, & scenery, & that will be an oustanding scene!
  6. alkcnw

    alkcnw Member

    Joined:
    Apr 11, 2002
    Messages:
    250
    Likes Received:
    0
    The only thing I see missing are a few cracks!:eek:
  7. Vic

    Vic Active Member

    Joined:
    Feb 1, 2002
    Messages:
    1,771
    Likes Received:
    0
    Looks like a winner to me:) :) Simple and classic.
  8. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    Thanks for the remarks. I'll finish it without changing the design. Yeah, I'll add some cracks.

    Charlie- I made it out of styrene, .060" and .080" sheet. I thought it would be faster than building a mold for plaster. I used a ellipse shaped dish for a pattern for the arch.

    Thanks guy's.
    Marty
  9. t. alexander

    t. alexander Member

    Joined:
    Jun 21, 2002
    Messages:
    550
    Likes Received:
    0
    Marty, the bridge looks great.
    I know your frustration in finding good "how'd they build that" info. I myself am suprised at the lack of information on the internet.
    I have a book called The American Railway, in it is a chapter dedicated to bridges and another to engineering feats. It was first printed in 1889 I believe and has good illustrations of bridges under construction.

    t.
  10. t. alexander

    t. alexander Member

    Joined:
    Jun 21, 2002
    Messages:
    550
    Likes Received:
    0
    Marty, looking at the bridge again, I wonder if adding another piece of styrene to the face of the arch area where the keystone blocks would be on a stone arch might help give it "definition" if that makes sense.

    t.
  11. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0
    That's a fine looking bridge Marty. An Erie berk will look nice going over it. Good job.

    Gary
  12. Matt Probst

    Matt Probst Member

    Joined:
    Mar 15, 2002
    Messages:
    379
    Likes Received:
    0
    Excellent job Marty. Can't wait to see the finished, detailed end result!!

    Matt--Hershey, Pa.
  13. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Marty, thats a hell of a nice bridge, I can just picture the river wandering through it, make a nice photo for photo contests later on.

    Shamus
    [​IMG]
  14. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    t. alexander,
    I know what you mean about the "keystone" arch area.
    I have been considering adding that. It would add character to the bridge.
    That's why I posted this, to get idea's.
    Shamus - You are right, hope to have this area done by contest time.
    Thanks again to all,
    Marty
  15. rockislandmike

    rockislandmike Active Member

    Joined:
    Nov 6, 2001
    Messages:
    1,288
    Likes Received:
    0
    I even checked my Model Railroading "Bridges & Trestles" book, and yep, you're right, only passing thoughts on the arched bridges. I was at one point gonna construct a viaduct, and same - I had to search around the inet for photos of same before I started coming up with plans.
  16. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    Mike,
    Checkout the "Bridge and Trestle Handbook" by Paul Mallery.
    This book has more details on viaducts and arch bridges.
    Not many pic's. but helpful info on design.
    Marty
  17. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Marty
    Real nice job. Only thing I'd add would be some kind of railing.
