Coffee Table Layout - Control Panel

bigdonnie

New Member
Finally got this finished and thought I'd share some before and after pictures. I'm pretty happy with the end result --- it will be very fast and easy to connect the panel to the layout or disconnect it and store everything away.


Attachments

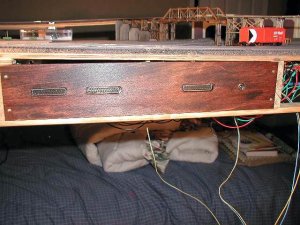

  • Front - Before.jpg
    Front - Before.jpg
    62.9 KB · Views: 264

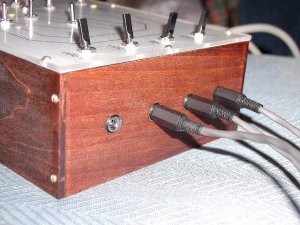

  • Front - After 1.jpg
    Front - After 1.jpg
    62.4 KB · Views: 266

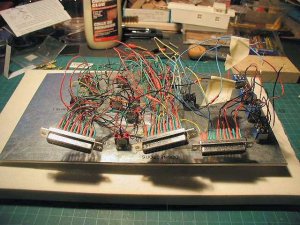

  • Panel - Before.jpg
    Panel - Before.jpg
    64.2 KB · Views: 262

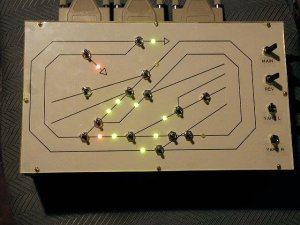

  • Panel Face.jpg
    Panel Face.jpg
    64.8 KB · Views: 253

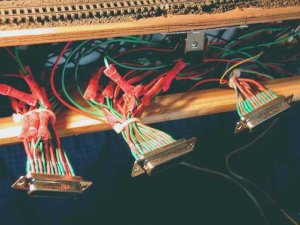

  • Plug Connectors.jpg
    Plug Connectors.jpg
    61.7 KB · Views: 257
