Class B Climax In N scale?

Discussion in 'N / Z Scale Model Trains' started by Delamaize, Oct 14, 2004.

  1. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0

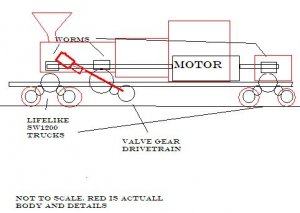

    Yes, it came to me in a dream. (how corny is that :D ) so I sifted though my "box-o-cr*p" and started woring on it. a old minitrix 0-6-0, a old bachmann 4-4-0, a life like SW1200, a old flat car, some random gears and shafts, and alot fo CA and cussing later, I have made my first prototype. I think I am going to try to make a better one out of brass once I get this one refined. attached is a drawling of the basic "drive train". and, yes the side rods do function. now, it is really big, but I hope to be able to make it alot smaller version with brass at a later time. sorry bout the picture quality, I am no artist. I wil try to get photos asap.

    Attached Files:

  2. Wyomingite

    Wyomingite Member

    Joined:
    Mar 17, 2002
    Messages:
    596
    Likes Received:
    0
    Hi Delamaize,

    Lots of luck with your project. Keep us posted on your progress. Also a warm welcome to the gauge.

    Ron :thumb: :thumb: :cool:
  3. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    An ambitious project to be sure
  4. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    Ok, the prototype worked. not worth taking pictures of though, the main driveshaft to the front truck was slightly bent and messes up the gearing for the front truck. so now that i know it works, I am going to go on to the next step, brass. what I need is some specs and dimentions for a 20-40 ton class B climax. any help will be apprecated.
    thanks,
  5. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
  6. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    thank you, I'll keep you guys updated on the project.
  7. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    Class B 30 TON climax in N scale?

    I am thinking this is going to be the easyest class B climax to fit my drtvetrain into. Question, It this works, and I get a few good ones working (in brass of corse) would people be intrested in buying them you think?
    thanks
    [​IMG]
  8. Muddy Creek

    Muddy Creek Member

    Joined:
    Aug 3, 2004
    Messages:
    268
    Likes Received:
    0
    I'm very interested in N Scale logging locos. I'm building a Class A Climax now, based on Tyson's excellent project posted here some time ago. Your concept looks promising. Hope to see photos & operating reports.

    Wayne
  9. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    RULE #1---The way to make a small fortune in the Model Railroading industry is to start with a large one.

    If you could make an affordable running gear that worked well, you'd have the love and admiration of N and HOn30 gaugers alike.
  10. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    I was tossing around a similar design but haven't started construction yet.
    Keep us posted on your progress, I'm interested to see how it works out.
    Your design looks a bit easier than what I was thinking, I was planning to run the worm shaft closer to the frame rails with a primary gearbox to a tiny motor hidden in the boiler.
    I was thinking of using cut down MRC 3 axle trucks (cutting off the unpowered axle on the end) to get a shorter wheelbased trucks.
    If the Climax works out is a Hysler on the drawing board next?
  11. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    I havn't had any ideas for a heisler yet. a little more complicated. I brobally could figure out some thing though. as for the trucks I found that the SW1200 trucks are a longer than the prototype, but they have about the right gearing, keeps the speeds below about 40 SMPH. I know that the climaxes were really slow, the had to sacrifice speed for tourque and power, but on a logging railroad, who needs speed.
  12. Delamaize

    Delamaize Member

    Joined:
    Oct 14, 2004
    Messages:
    69
    Likes Received:
    0
    Oh and I thought I'd mention that I am not looking for money, rather just to provide something to the N scale community that previously wasn't avaible at a decent price. the only other functional climax I have ever seen was on aspenmodels.com and it was like $500 for the kit, give me a break!
  13. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    Nice project, please keep us posted on the progress.
  14. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    The nice thing about your idea is that it has a crossover appeal. The mechanism could be used in HOn30 and On18 with very little added work.
