Chinese navy's 37 millimeters double barrel artillery, by colleaderdesign and manufac

Discussion in 'Ship & Watercraft Models' started by colleader, Mar 19, 2007.

  1. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0

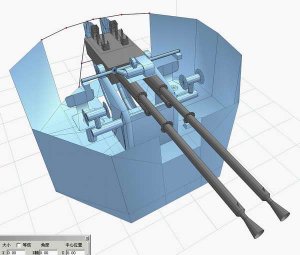

    The design works completely completes

    Attached Files:

    • 012.jpg
      File size:
      27 KB
      Views:
      102
  2. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0

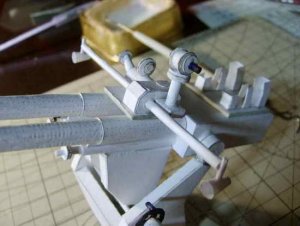

    The manufacture work is completes by my parents, I am a politicalinstructor:-D

    Attached Files:

    • 017.jpg
      File size:
      37.7 KB
      Views:
      99
  3. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0

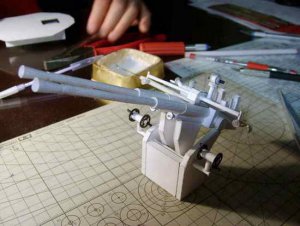

    The gun laying system part, this model is does not have the color, inorder to inspect in the design of error

    Attached Files:

    • 018.jpg
      File size:
      31.4 KB
      Views:
      100
  4. yaniv

    yaniv Active Member

    Joined:
    Nov 6, 2004
    Messages:
    1,087
    Likes Received:
    0
    W-O-W

    what a work

    looks like u use a laser cuting and hends :)

    i like it

    is this part of some big model?or only the gun?
  5. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0

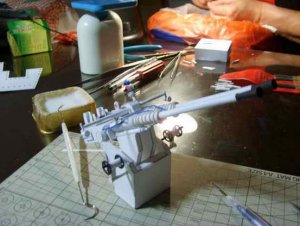

    Carries on the combination to all parts attempt, observes the overalleffect

    Attached Files:

    • 019.jpg
      File size:
      25.2 KB
      Views:
      96
  6. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0
    Thank you
    I have not used the laser to cut the installment, with is thescissors and the pen knife tailors the paper
    Extremely thank the model which you can like me designing
    This model is the Chinese navy's 62 gunboats main artillery, aroundeach, altogether two Moreover also has two 25 millimeter vice- artillery
    I now am designing 25 millimeters vice- artillery
    This gunboat is the first kind of gunboat which Chinese designs,
    Before this, the Chinese navy mainly is depends on Soviet theequipment
    62 gunboats are called by the west " Shanghai level "Gunboat
    In the 60's, is the Chinese people navy's main strength Certainly, now the Chinese people navy's strength formidable very havebeen many, but compares with the periphery other countries also hasthe certain disparity, in particular Japan and South Korea
  7. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0

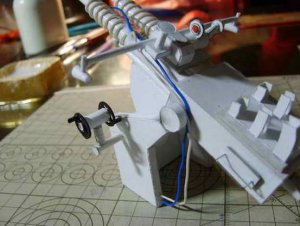

    Increased some details, like the driving spring and the cooling pipeand so on, the use network wire manufactures

    Attached Files:

    • 020.jpg
      File size:
      36.9 KB
      Views:
      89
  8. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0

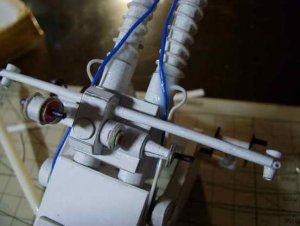

    I have used the massive glue water cementation network line cable

    Attached Files:

    • 024.jpg
      File size:
      29.3 KB
      Views:
      89
  9. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0

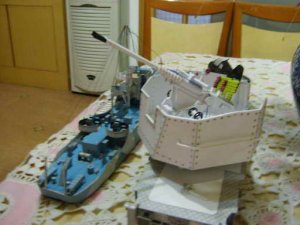

    Artillery overall effect

    Attached Files:

    • 025.jpg
      File size:
      39.7 KB
      Views:
      86
  10. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0

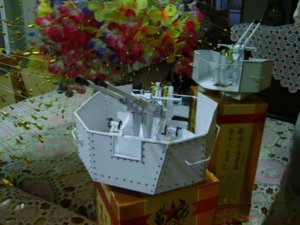

    After completely completes, asks everybody to offer an opinion

    Attached Files:

    • 013.jpg
      File size:
      32.9 KB
      Views:
      85
  11. colleader

    colleader Member

    Joined:
    Dec 8, 2006
    Messages:
    66
    Likes Received:
    0

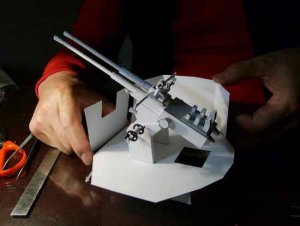

    After completely completes, asks everybody to offer an opinion

    Attached Files:

    • 015.jpg
      File size:
      39.1 KB
      Views:
      134
  12. yaniv

    yaniv Active Member

    Joined:
    Nov 6, 2004
    Messages:
    1,087
    Likes Received:
    0
    your work so clean and looks outstending

    the design and the built

    ps
    i hope my c47 look like this :)
  13. Lex

    Lex Dollmaker

    Joined:
    Dec 1, 2006
    Messages:
    1,930
    Likes Received:
    0
    Nice... Outstanding work!! It's time to add a navy soldier standing at the back of that cannon :D

    P: It'll be good if RSuper was released in English, it's such a great program. But, not yet...
  14. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    35mm

    Hi

    Wonderful gun model ........... a question, what type is the ship that sits in the background please. Looks like one DN's ?

    Where can you find plans of Chinese Navy ships ?

    regards
  15. Bowdenja

    Bowdenja Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,677
    Likes Received:
    0
    Very good model............ this is a subject that is not many models of. Are you going to release this model for others to build?

    Very good of you to show the design process and the building process.

    Thank you.

    john
  16. B-Manic

    B-Manic Peripheral Visionary

    Joined:
    Nov 28, 2006
    Messages:
    533
    Likes Received:
    0
    Looks great. A very clean design and build. :)
  17. Clashster

    Clashster Member

    Joined:
    Dec 2, 2006
    Messages:
    585
    Likes Received:
    0
    Great design and build! Very clean!

    Chris
  18. Jim Krauzlis

    Jim Krauzlis Active Member

    Joined:
    Sep 26, 2005
    Messages:
    2,327
    Likes Received:
    0
    A very impressive project...from design to test build to completion with full details!:)

    So very cleanly done, and a truly enjoyable build thread to see this model progress from concept to finished build. I wonder if this is one part of a complete model of the 62 gunboat that you are contemplating.

    Thank you for sharing this wonderful build with us!

    Cheers!
    Jim
