Cheapy Tank Car

Discussion in 'N / Z Scale Model Trains' started by jmarksbery, Jun 21, 2003.

  1. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0

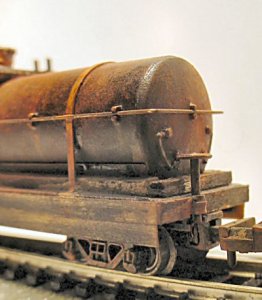

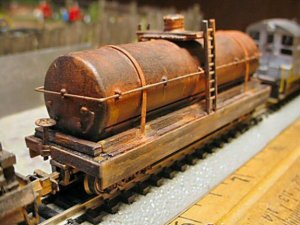

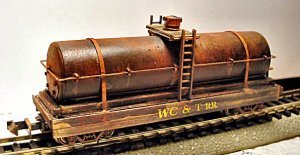

    Started with one of those red/white tank cars that come with cheap train sets and messed with it a bit just to see what could be done. What do you think? Better-Worse-Needs something old man? I don't know much about rolling stock! :rolleyes: :p :D

    2 pictures coming up:

    Attached Files:

  2. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Last-------------;)

    Attached Files:

  3. roryglasgow

    roryglasgow Active Member

    Joined:
    Jun 4, 2001
    Messages:
    1,311
    Likes Received:
    0
    Nice! How did you get the rusted/pitted look on the tank? I could imagine something like that running on some old branchline out in the middle of the woods!
  4. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    The tank I spray painted (can) flat black, then I assembled the car and added the wood etc. when all was done I painted on the rust on the bands and other places that rust may occur. After that had dried for a short period I gave it a wash with alc/ink and after a short period again and before it completely dried I brushed on some black chalk and followed with a rust colored chalk. The alc/ink wash holds it on fairly well if you do not handle it too much. If you do a coat of flat clear or hair spray will hold it. You may need to rechalk to get the effect you want. The wood was then lightly sanded to the effect I wanted.
    :rolleyes: :D
  5. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Awesome! :cool: Man you gotta get a layout going so you got someplace to put all this stuff!!!!!!!
  6. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    900
    Likes Received:
    0
    Really well done. I was myself drawn to the fact that you had texture in the rust. the car itself would make a GREAT addition to any layout. My only concern would be the "cheapy" truck and wheels,but maybe you changed them already?
  7. Blake

    Blake Member

    Joined:
    Jul 19, 2002
    Messages:
    454
    Likes Received:
    0

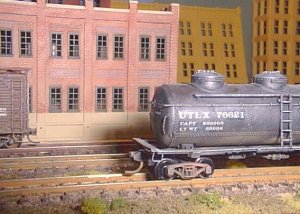

    I love cheap frieght cars! I had a few old Atlas 3 dome tanks and a Bachmann 3 dome tank. I cut off all the grabs and the walkways and replaced them with wire and styrene. Here is the Bachmann car.

    Attached Files:

  8. Blake

    Blake Member

    Joined:
    Jul 19, 2002
    Messages:
    454
    Likes Received:
    0

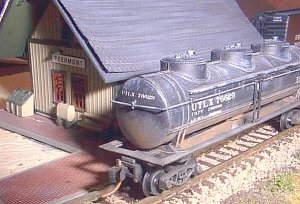

    Another view.

    Attached Files:

  9. sapacif

    sapacif Member

    Joined:
    Jun 3, 2003
    Messages:
    34
    Likes Received:
    0
    Blake: Very nice tank car! I did that, too, and decided it was too much work primarily because of the wire around the tank. The ladders were easy. How did you do the wire? It really looks nice.
  10. sapacif

    sapacif Member

    Joined:
    Jun 3, 2003
    Messages:
    34
    Likes Received:
    0
    Blake: Also, how about adding steps at the corners? The walkway is too thin to do this. Maybe add some styrene blocks and then put the steps in that? It might look strange because the styrene did not run the length of the car. Anyway, very nice kitbash.
  11. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Tanks for the great pics! :D Seriously, nice work you guys!
    Ralph
  12. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Yes Belg, I will be changing the wheel sets and the couplers also, but that will be at a latter time when the layout starts. :(

    Blake, that's a nice tanker also. I have a couple of those also and may tackle them later. Thanks for the tips. The WC & T has it's own standards and may not confirm to the other roads but it is not hazardous to your health. :D

    Thanks all for the comments;
    Tyson, I really am trying it is just one of those things. I hate building layouts!! :eek: ;) :p
  13. Blake

    Blake Member

    Joined:
    Jul 19, 2002
    Messages:
    454
    Likes Received:
    0
    I knew I forgot something!! I was wondering why everytime one of my plastic railroad employees would try to hop on that car, they would wind up with their face in the dirt!! I did put steps on the other ones though. When I made the walkways, I used .010" strip styrene. I laminated this to a strip of .020" styrene that was .020" narrower than the walkway. This way, you see the thin material and also have the strength of the unseen, thicker material. I mounted flat brass stock bent into steps to the thicker piece of styrene. As far as the wire grab, the one on the Bachmann car is fine as it is. On the old Atlas cars, I carefully scraped off the cast on ones. Where there was a mounting bracket, I slices the handrail on either side and then gouged out the center. I then drilled a #80 hole at these locations and installed a Gold Medal Models lift ring from their diesel loco set. I threaded the wire through the rings and bent them using the tank as a guide. Here is a pic of the handrail brackets.

    Attached Files:

  14. Blake

    Blake Member

    Joined:
    Jul 19, 2002
    Messages:
    454
    Likes Received:
    0
    And here is a car with steps (the plastic employees like these cars better).

    Attached Files:

  15. sapacif

    sapacif Member

    Joined:
    Jun 3, 2003
    Messages:
    34
    Likes Received:
    0
    Blake: I like it! Stirrups look good! Now, did you drill the holes from the bottom and stick the stirrups up that way? Walkways look very good. Did you build the whole walkway all around? Did you use any part of the original frame?
  16. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    New (duh) flat car and eoad

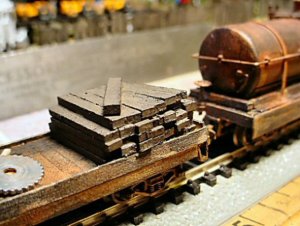

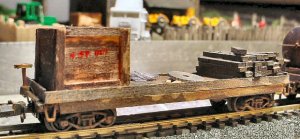

    Made another car to go with the tanker. The box on the rear and the ties on the other cover the weights I added. Comments please. Jim :rolleyes: ;) :D

    Attached Files:

  17. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    one more try

    Attached Files:

  18. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    last :p

    Attached Files:

  19. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Man, you guys are really getting my juices flowin' with this one!
    I have a whole bag of busted up cheapo tank cars that I bought at a swap meet, & I think you two are inspiring me to dig in there & see what I can come up with!:D :cool: :D

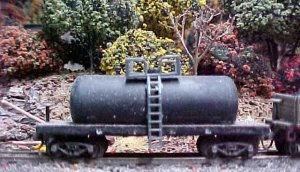

    Here's an attempt I made a little while back...I took the tank off of an Atlas modern "shorty" tanker, & put it on one of those Bachman old time flat cars...

    Attached Files:

  20. Blake

    Blake Member

    Joined:
    Jul 19, 2002
    Messages:
    454
    Likes Received:
    0

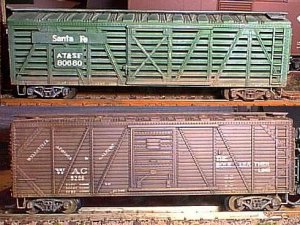

    There are plenty of N scale cars that are cheap and usually all they need are new steps, brakewheels and roofwalks. The photos show an old Roco boxcar and a Trix cattle car both with Microtrains parts added. Drybrushing also brings out the details. Above all, its fun!:D

    Attached Files:
