Ceresota Flour N-Scale

Discussion in 'Scratchin' & Bashin'' started by jmarksbery, Jun 8, 2004.

  1. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    :wave: Hi all again, I found this pic on the web and for some reason fell in love with it. It's simple features, the signs, the whole darn thing. So I thought I would try and catch the essence of it in N-Scale, I am not done with it yet, but what do you think so far.

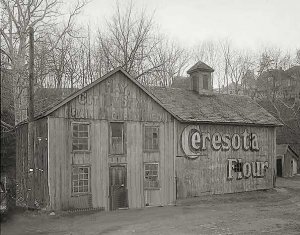

    The first pic is of the real thing and the second is my model I scratch built. DUH :oops:

    Attached Files:

  2. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0

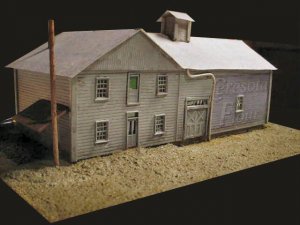

    :wave: And here is the model. :sleeping:

    Attached Files:

  3. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    :thumb: Very nice work J. :thumb:
  4. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    Can you tell us how you managed this work of art?
    What materials are you using?
  5. jkristia

    jkristia Member

    Joined:
    Aug 1, 2002
    Messages:
    433
    Likes Received:
    0
    Which one is the model, the top or the bottom picture :)

    Immediately when I saw the picture, and before I read our post, I thought "wow, what a perfect building to scratch build", and you did a fantastic job at that.

    I too would like to know how you did the sign on the wall.

    Great great building. :thumb:
  6. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Very nice. I second (third? forth?) the request for more detail on the construction!

    Andrew
  7. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    :wave: Thanks everyone for the kind words. To put it simply, I used v-groove styrene for the basic building (only four walls), a lesser width boarding for the peaks, and card stock with printed shingles for the roof (although the light faded in the picture on the right side) I did on the puter. The sign I made using typing paper as it is much thiner than regular paper. The color will vary on typing paper for the same reason that it is thin, so allow for this, mine turned out a little darker than I wanted but oh well. I used a grey primer with alcohol and india ink wash to wheather. I think the windows and doors are Grant line. The end walls and the back wall were done my way as the picture does not show in the prototype. There are only windows on the back wall, a loading area on the far end area and a door and window with a roof on the other end. More signs are on the back wall. It is a simple building but the looks just drew me to it. I have pictures of all four sides if any one would like to see them. I also made plans for it if anyone would like I can e-mail it to you. (has actual ft. dementions on it for any scale) I was going to make a tutorial of it, but don't have the patients for it once I start. Hehe.
    Thanks again, Jim :D
  8. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Jim,

    Great work! Thanks for the step-by-step. I know what you mean by the "no patience". I often get going on something, think "gee - this would be good to document", and then end up with few or no pictures 'cuz is just so much fun to work on the thing. To heck with the pictures :D

    But I for one would like to see all the pictures of your building, and maybe you can put the plans up at the Gauge Yahoo group (talk to jon-monon about that).

    Andrew
  9. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    That's a real keeper Jim. Great scratchbuilding
  10. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0

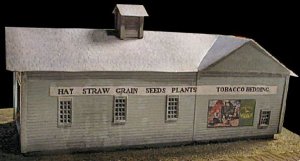

    :wave: OK, you guys wanted more pics and the plan. Well here they are. Enjoy
    Oh, I have 4 photos in all to post so be kewl. :p

    Attached Files:

  11. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Short end wall. :oops:

    Attached Files:

  12. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0

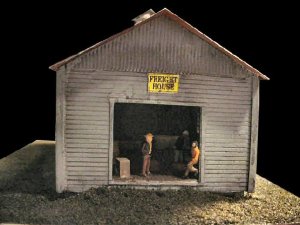

    :rolleyes: And the dock end wall

    Attached Files:

  13. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0

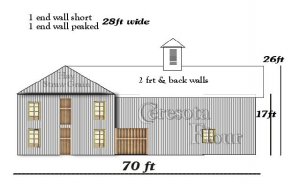

    :sleeping: And here are the plans I did on the computer and worked off of. The peaked end I used for the dock is the same size as the frt. & back peaked. Makes it easier to do. Hope this helps and enjoy. I am off to do something else. :eek: ;)

    Attached Files:

  14. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Very nice!!!! You nailed it! The mill has a lot of charm and character. Your model has the same.
    Ralph
  15. kettlestack

    kettlestack Member

    Joined:
    Jan 18, 2002
    Messages:
    898
    Likes Received:
    0
    You have taste Jim

    Man oh man Jim, that's a real gem. :thumb: :thumb: :thumb:

    Everything about it radiates the charm of a slower pace of life that we seem to have lost.
    I hope you don't mind sir, but I filed it all for my future reference and danke, danke, danke for the drawing too :wave: :D :D

    Heavens above Jim, I hope you havent been keeping other photos of timber buildings from us. :eek: If you have, get 'em posted! :D
    You made a darned good job of this structure, I just wish typwriters were still used these days in this backwood of Scotland! ;)

    :D Why did you leave the trees out of the model? hehehehe

    Errol
  16. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Errol, I don't use a typewriter I just use typewriter paper on my puters printer. Hope this clears things up. Thanks man, oh, and use what you want. Jim :)
  17. jkristia

    jkristia Member

    Joined:
    Aug 1, 2002
    Messages:
    433
    Likes Received:
    0
    another question about the sign.
    Which program and which font did you use to create the Cereta Flour sign?
    I tried to make one in PagePlus 9 using 'Times New Roman' font, but it doesn't look right, yours is much closer to the real thing
    Again great work, and thanks for sharing.

    See this is what I got, not even close.

    Attached Files:

  18. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    I am sorry Jesper, I don't remember which font I used. I have thousands and I just keep looking till I find one that looks right. :( Sorry, if I run across it again I will post it.
  19. Pitchwife

    Pitchwife Dreamer

    Joined:
    Apr 24, 2001
    Messages:
    1,796
    Likes Received:
    0
    Hi Jesper. I have a program called 3D Plus 3 that makes some really cool 3D signs and graphics that I plan on using when I get to that stage of construction.
  20. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Jesper, here is the font I used with a little work on it. :wave:

    Attached Files:
