Canada Malting Plant

Discussion in 'Robin At His Best' started by Matthyro, Aug 3, 2003.

  1. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    This old malting plant has been part of the Toronto waterfront since 1928 when the first group of silos were built. It expanded in 1944 with more silos then ceased operating in 1987.
    Val(spitfire) brought this to my attention with her post in Real Thing Canada

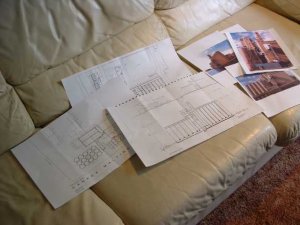

    Val very has been very kind to me and sent me a copy of the architects drawings so I could build this structure to exact scale.
    It is 344 feet wide and 210 feet high. In N gauge this comes to 28 inches wide ans 15 7/8 inches high. I can't build the depth to scale as I don't have enough room to build the whole structure but then that's modellers licence.
    A big thanks for all the help Val.

    Attached Files:

    • cm3.jpg
      File size:
      36.1 KB
      Views:
      544
  2. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

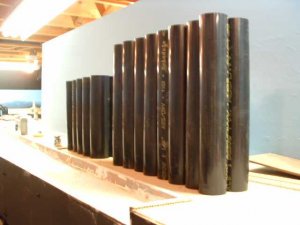

    There is more cost to this project than I usually experience. I got enough PVC pipe for $15.00 at Canadian Tire. The 1 1/2 inch internal diameter pipe is a perfect 26 feet in N scale. The 1 1/4 inch internal diameter pipe is a perfect 19 feet in N scale. I cut the pipe into the required lengths using my radial arm saw.
    Here is what they look like.

    Attached Files:

    • cm1.jpg
      File size:
      31 KB
      Views:
      518
  3. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

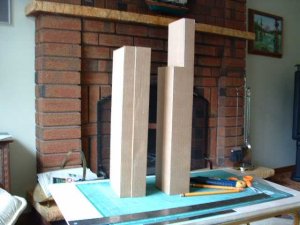

    The building sections will be made out of cardboard. What else EH!
    Here is the corrugated cardboard foundation. Cerealboard will be added with detail later

    Attached Files:

    • cm4.jpg
      File size:
      37.7 KB
      Views:
      562
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

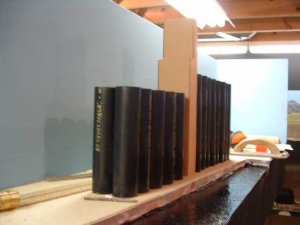

    This is to get a feel for what this will look like put together

    Attached Files:

    • cm2.jpg
      File size:
      28.7 KB
      Views:
      503
  5. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    WOW! This is fast work. Looking good so far.
  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

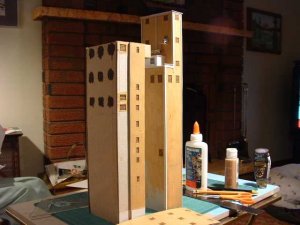

    Adding some cerealboard details to the carton base. I found that some of my measurements weren't right so had to do some bits over.

    Attached Files:

    • cm6.jpg
      File size:
      36.3 KB
      Views:
      438
    • cm6.jpg
      File size:
      36.3 KB
      Views:
      437
  7. mhdishere

    mhdishere Member

    Joined:
    Feb 27, 2003
    Messages:
    171
    Likes Received:
    0
    Oh no! Robin is building in (gasp!) PLASTIC!

    All kidding aside Robin, incredible, just absolutely awsome.
  8. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    I think I speak on behalf of the masses when I say, "We are moist with anticipation."

    PVC sure is a nice, inexpensive material to use for many things.
  9. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    I must admit, this is an intimidating project. I just hope I can get it all to come together. If I hadn't already posted the beginings here I may have backed off for a while. The real benefit of posting a step by step process is that it keeps my eye on the ball and I am therefore comitted to completing this structure so will keep at it. Your generous comments provide me with the juices to continue.
    Thanks everyone.
  10. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

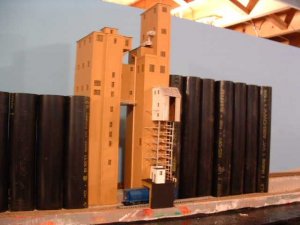

    progress to date. The buildings are almost complete.

    Attached Files:

    • cm8.jpg
      File size:
      32.6 KB
      Views:
      377
    • cm8.jpg
      File size:
      32.6 KB
      Views:
      422
  11. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

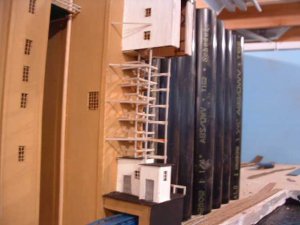

    This shows some of the detail of the frame that will hold the ship loading arm. The frame work still needs to be painted.

    Attached Files:

    • cm9.jpg
      File size:
      33.3 KB
      Views:
      377
    • cm9.jpg
      File size:
      33.3 KB
      Views:
      378
  12. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    Come on Robin. Keep working on it. You'r doing great

    E mail me when finished so I don't miss it.
  13. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Correction

    Earlier I referred to the plastic pipe as being PVC pipe. In fact it is ABS pipe. Sorry for the error.

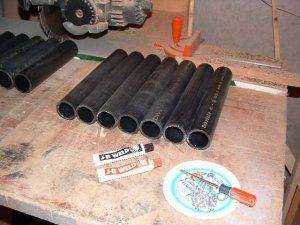

    In this photo I have glued sections of the pipe together using a two part cement. I am sure any epoxy glue will work.

    Attached Files:

  14. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0
    Well Robiin, you do live up to your reputation... what a great model ,look forward to its completion and to seeing it on your layout when next we visit. Its so nice to get plans and photo,s to work from.I will be buiding that feed store that Val posted such good pictues of in the future when I get around to building the town of Helengon
  15. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

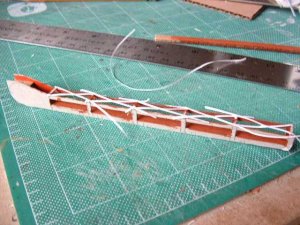

    Thanks Jimmy. I am now working on the ship loading arm. The prototype extends out over the water to reach the hold of a ship. It moves back into its housing when the job is done. This photo shows the beginings of the arm I am making. The cross beams are cut from paper and the ends still need to be trimmed off.

    Attached Files:

  16. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

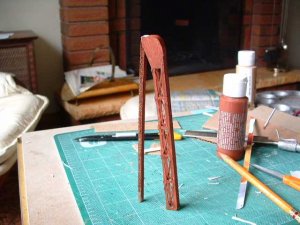

    Here the ship loading arm is almost ready to be installed. I want to make the arm work like the real thing and a couple of control arms still have to be made.

    Attached Files:

  17. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
  18. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    WOW! That's really shaping up nicely. Can't wait to see more!!!!
    Ralph
  19. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Holy Smokes!

    :eek: Ditto! :eek:
  20. davidstrains

    davidstrains Active Member

    Joined:
    Aug 29, 2002
    Messages:
    1,061
    Likes Received:
    0
    Robin,

    It just keeps getting better and better. :) :)
