Burj al Arab - 1:1000 scale

Discussion in 'Architecture Models' started by Louis R, Jan 8, 2009.

  1. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0
    The Burj Al Arab - a luxury hotel built on an artificial island in the Persian Gulf - has already become an iconic landmark of Dubai. Currently it stands for the world's tallest hotel and the world's tallest structure with a membrane facade. Our 1/1000 scale model depicts all the beauty of the building including the helipad and the hanging restaurant. Size when assembled: 12,8 x 5,5 x 5,1 inches / 32,5 x 14 x 13 cm.
    Precut & Scored.
    Difficulty Level: Medium (6/10)
    By: Paper Landmark

    Attached Files:

  2. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

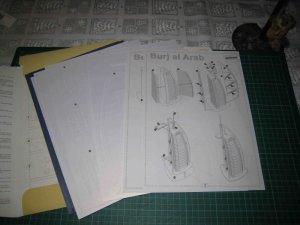

    Original packaging.

    Attached Files:

  3. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

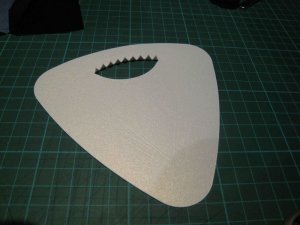

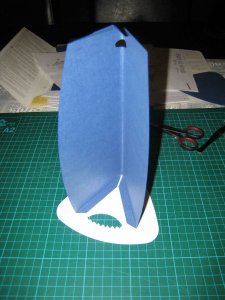

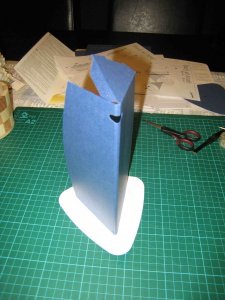

    The Base plate and main carcass.

    Attached Files:

  4. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

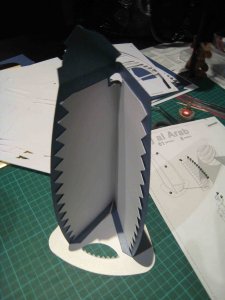

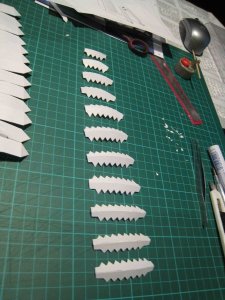

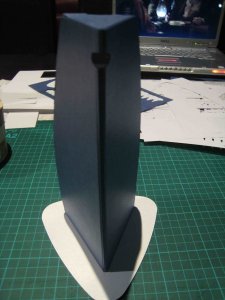

    Internal Stiffener

    Attached Files:

  5. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

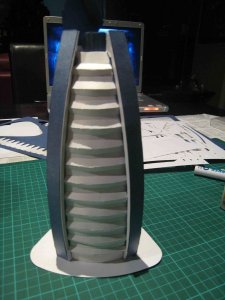

    Main Facade

    Attached Files:

  6. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

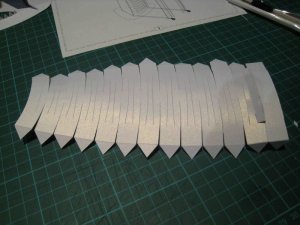

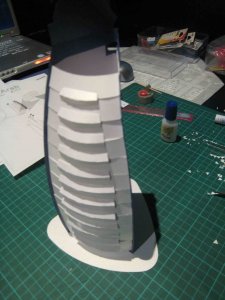

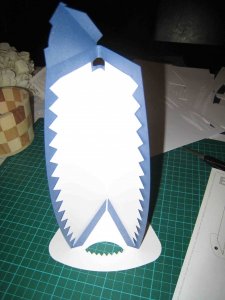

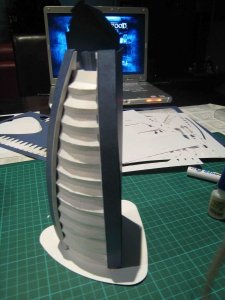

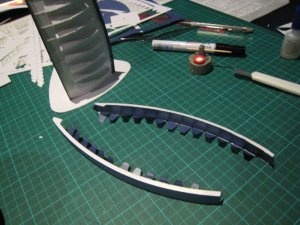

    Shaped membrane panels and their attachment to the main facade

    Attached Files:

  7. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0
    More images of model under construction

    Attached Files:

  8. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

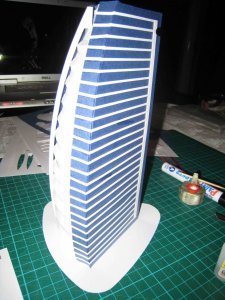

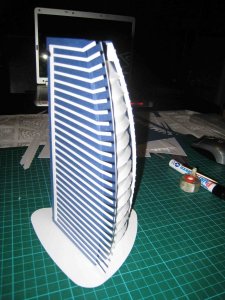

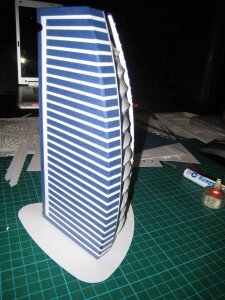

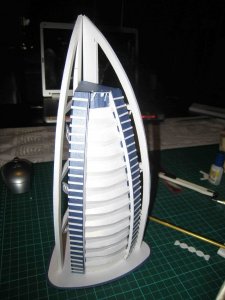

    Added window strips to the buildings's accomodation wings

    Attached Files:

  9. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

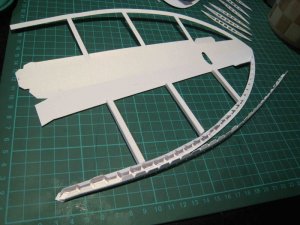

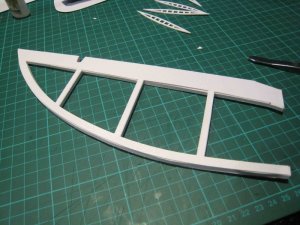

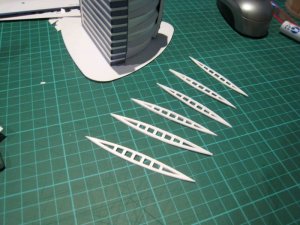

    Truss members

    The trussed arches which can extend out from the supports by up to 13 metres are supported vertically at the 18th and 26th floors by a series of 52mm diameter cross-braced macaloy bars. Girders at these floors transfer the load to the core structure. These bars are then pre-tensioned to ensure that the whole structure remains in tension.

    Attached Files:

  10. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

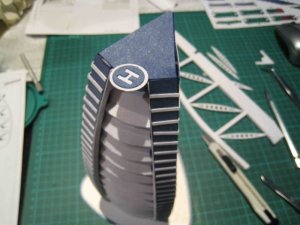

    Helipad at top of building

    Attached Files:

  11. chapuzas100

    chapuzas100 Member

    Joined:
    Mar 1, 2007
    Messages:
    193
    Likes Received:
    0
    A very interesting model.
  12. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

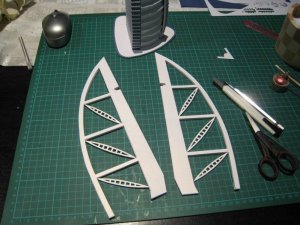

    Adding the two main trussed arches.

    Attached Files:

  13. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

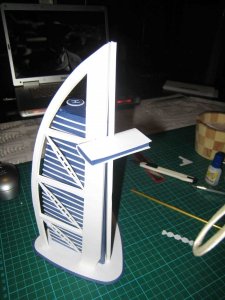

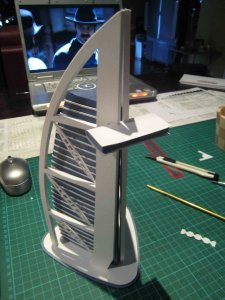

    Added the hanging restaurant.

    Attached Files:

  14. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

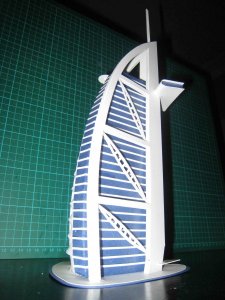

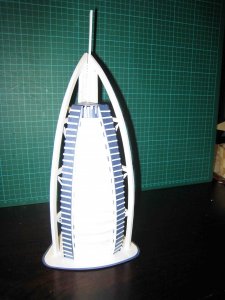

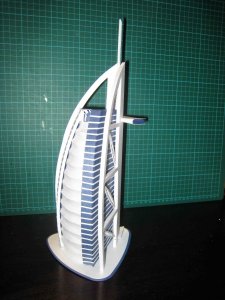

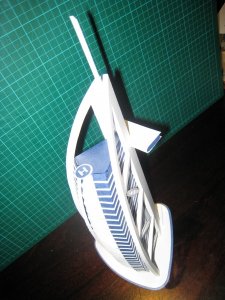

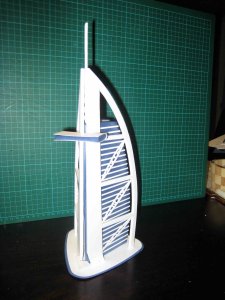

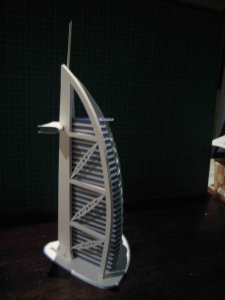

    The Burj-al Arab completed!
    A very nice and interesting architectural model of the world's first six-star hotel in Dubai

    Attached Files:

  15. Louis R

    Louis R Member

    Joined:
    Mar 31, 2004
    Messages:
    49
    Likes Received:
    0

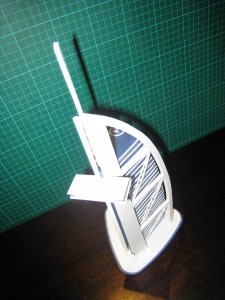

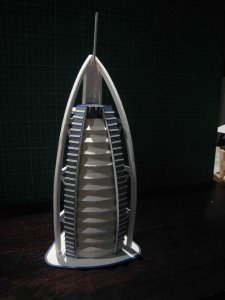

    More pics of Burj-al Arab completed!

    Attached Files:

  16. Stev0

    Stev0 Active Member

    Joined:
    Jan 30, 2006
    Messages:
    2,170
    Likes Received:
    0
    Incredible. Dubai is going to have some amazing subject matter for card modeling.
  17. Stev0

    Stev0 Active Member

    Joined:
    Jan 30, 2006
    Messages:
    2,170
    Likes Received:
    0
    Amazing.

    Dubai is/will have some amazing subject matter for card modeling.
  18. kk135

    kk135 Member

    Joined:
    Jul 19, 2004
    Messages:
    72
    Likes Received:
    0
    Thats a cool model of an interesting building!
    Tho I don't know if I could eat there (even if I could afford it) with it hanging
    our over nothing like that! YIKES!

    Great job tho!
  19. voyager76

    voyager76 New Member

    Joined:
    Dec 8, 2007
    Messages:
    9
    Likes Received:
    0
    Wow ! Very nice one.
  20. Nothing

    Nothing Longtime Member

    Joined:
    Sep 13, 2006
    Messages:
    1,992
    Likes Received:
    2
    good job on the build. it is a beautiful peice of archetexture, and one of my favorite buildings.
