Building UHU's Endurance- My First Build Thread

Discussion in 'Science Fiction & Fantasy' started by Cforrest900, Dec 24, 2014.

  1. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,416
    Likes Received:
    2,253
    Everything looks clean, crisp and clear!
    KEEP UP THE GREAT WORK!!!
  2. xpsg

    xpsg New Member

    Joined:
    Dec 26, 2014
    Messages:
    15
    Likes Received:
    8

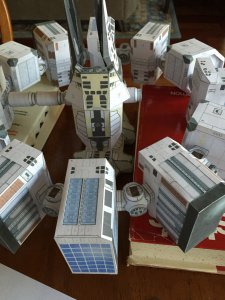

    I hate to be raining on your parade :( but I just noticed that you might have glued "luggage compartments" of the habitat modules wrongly (it's upside-down)

    Reference: http://uhu02.way-nifty.com/.shared/image.html?/photos/uncategorized/2014/12/03/31.jpg
  3. gilgamesch

    gilgamesch New Member

    Joined:
    Nov 10, 2014
    Messages:
    142
    Likes Received:
    210
    looking fantastic!
  4. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219
    I realized that after doing two, but decided to do the other two the same way, as nobody is really likely to notice unless they have eyes as clean as yours
    xpsg likes this.
  5. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219

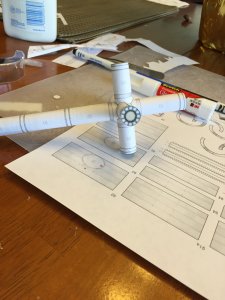

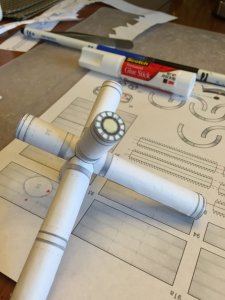

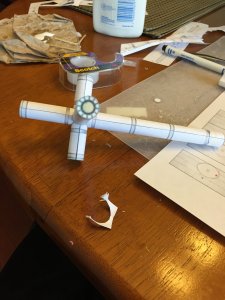

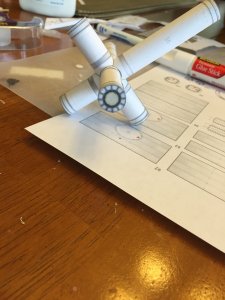

    Next bit of progress: work begins on the central docking hub:
    IMG_0373.JPG IMG_0372.JPG IMG_0371.JPG IMG_0374.JPG IMG_0375.JPG
  6. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219

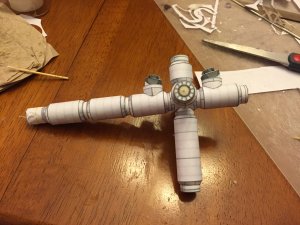

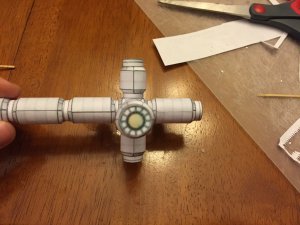

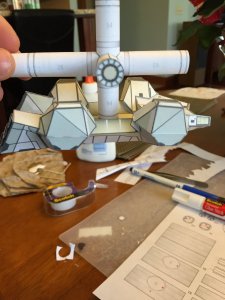

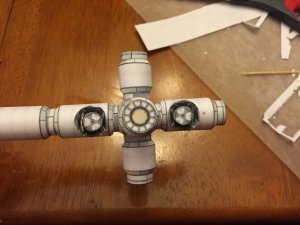

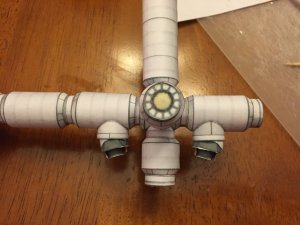

    Central docking hub completed. Up next, I need to attach it to the rest of the ship and complete the other Lander and Ranger.
    IMG_0384.JPG IMG_0383.JPG IMG_0382.JPG IMG_0381.JPG
  7. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219
    Work begins on the final stages of the model: the Lander and the Ranger. As these were the trickiest bits of the model for me, I'm gonna go SUPER detailed on my build pics/ descriptions so that others who choose to build this model in the future may use them as a ref.

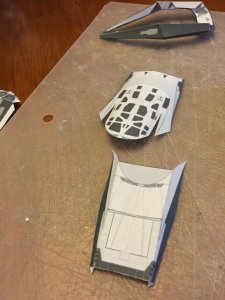

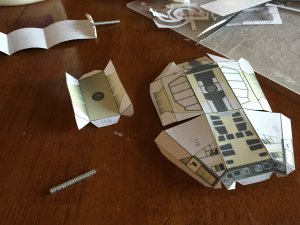

    To begin with, all parts are cut out and folded:
    IMG_0460.JPG IMG_0456.JPG

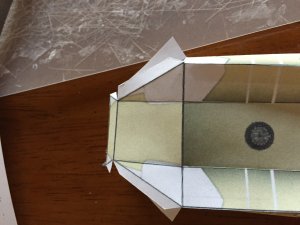

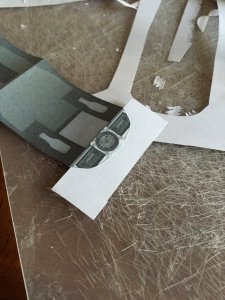

    I then layer the areas where the magnets will go with two extra layers of paper:
    IMG_0455.JPG IMG_0457.JPG
    For the ranger, I cut out tabs from the 3rd layer to ensure that they will not be visible in the finished product.

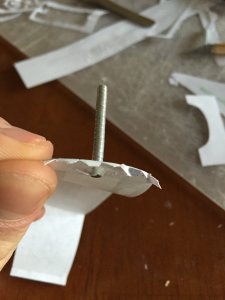

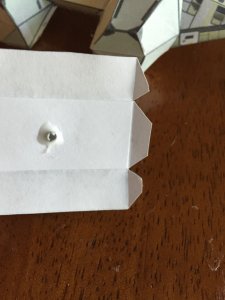

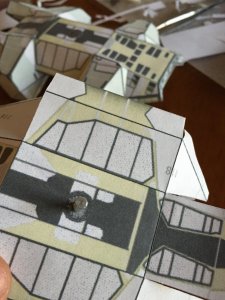

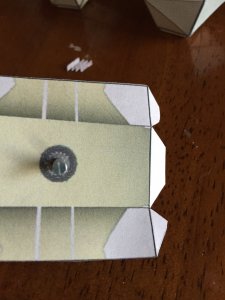

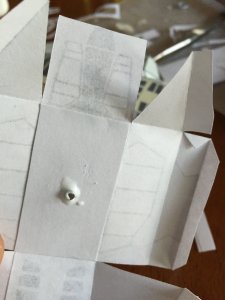

    Next, I glue the magnets to the approximate area:
    IMG_0461.JPG IMG_0463.JPG IMG_0458.JPG

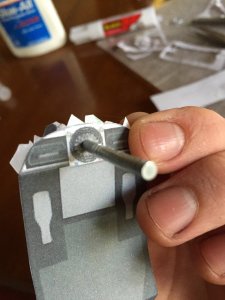

    As can be seen above, I use a few other magnets to then line up the glued one correctly:
    IMG_0464.JPG IMG_0458.JPG IMG_0462.JPG IMG_0459.JPG
    Next: lots and lots of waiting. But in the meantime, I'll begin work on the "wing" for the Ranger
  8. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,416
    Likes Received:
    2,253
    It is really coming together beautifully!
    I am glad to see that you took into consideration that the magnets would put extra strain on the paper and have compensated for it.
    Cforrest900 likes this.
  9. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,889
    Likes Received:
    3,532
    Me gusta MUUUUCHO!!!!! :)
    Cforrest900 likes this.
  10. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219

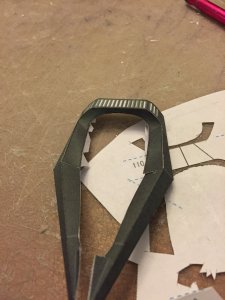

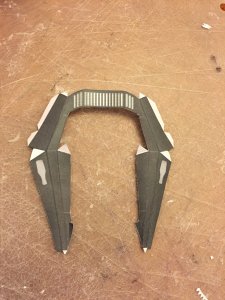

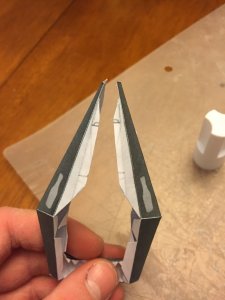

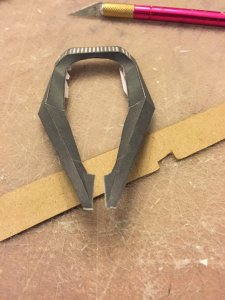

    Building the Ranger's wing:
    To begin with, I double up some of the areas of the wing. This is to prevent it from warping when glued to the main hull of the ship. I then cut out the shape with the tabs on the bottom layer, which will create something like a butt-joint.
    IMG_0465.JPG IMG_0466.JPG

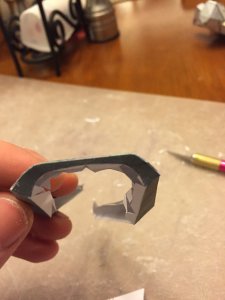

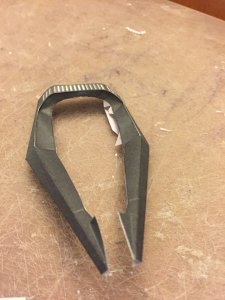

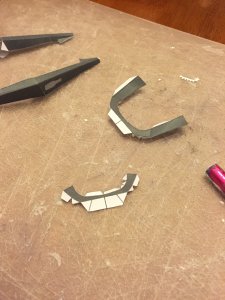

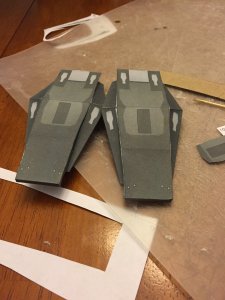

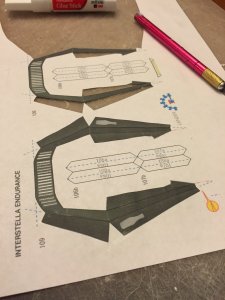

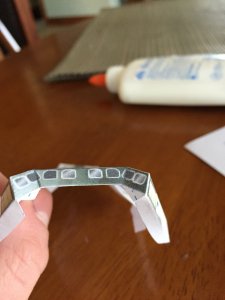

    Next, I cut out 1 set of the other 2 pieces to finish the wings. I cut tabs here, as these will become the bottom layer:
    The y are then glued into the wing:
    IMG_0518.JPG IMG_0519.JPG

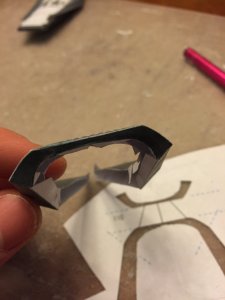

    I then cut out another set of the "U: shaped pieces with NO tabs sand glue them over the others:
    IMG_0520.JPG IMG_0521.JPG

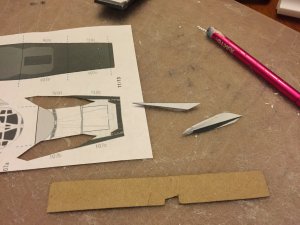

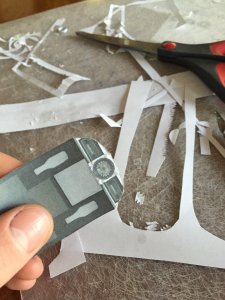

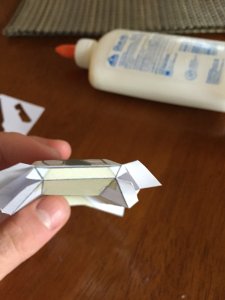

    I then take an extra copy of the Ranger hull and cut out the grey triangles for the wing placement from the front half of the hull. I make sure to cut them WITH tabs:
    They are then glued into the wings. Note that the front does not line up completely with the front of the wing:

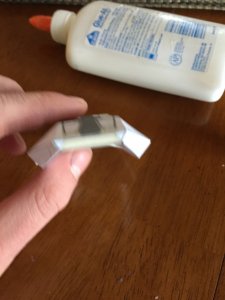

    Finally, the top edges are glued, completing the wing:
    Up next (tomorrow): completing the Ranger!
  11. xpsg

    xpsg New Member

    Joined:
    Dec 26, 2014
    Messages:
    15
    Likes Received:
    8
    Thanks for the updates! They will be helluva useful when I get to that stage!
  12. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,416
    Likes Received:
    2,253
    I know that UHU02's models can be (and sometimes are) quite challenging (which is one of the many reasons why I am so drawn to his work in the first place). So seeing what you are doing, I have to commend you on the meticulous care and effort that you are putting into building this model. Such efforts are (INDEED) paying off.
    Cforrest900 likes this.
  13. zathros

    zathros -----SENIOR---- Administrator

    Joined:
    Apr 6, 2013
    Messages:
    7,402
    Likes Received:
    3,326
    I am so impressed by how perfect you made this model. These huge pictures would show any defects, and the bigger the pic, the better the model looks! I see a Model of the Month, I guarantee, when finished, a "Model of the Month", to be soon renamed something a bit shorter! (well, not "Something a bit sorter", a shorter title......HehHehHeh) :)
    Revell-Fan likes this.
  14. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219
    :jawdrop::jawdrop::jawdrop::jawdrop::jawdrop::jawdrop::jawdrop::jawdrop::jawdrop::jawdrop::):):)
  15. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219

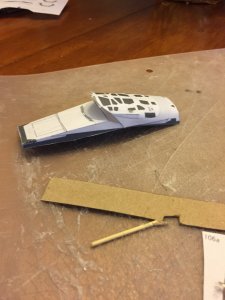

    The second Ranger is finished:

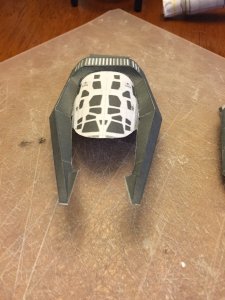

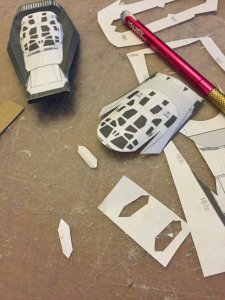

    To begin with, I attach the tabs to the bottom of the hull and cut out the top pieces. Nothing special is done here:
    IMG_0546.JPG IMG_0547.JPG
    Next, I cut out tabs from a scrap piece of paper to place in the rear half of the hull:
    IMG_0548.JPG IMG_0549.JPG
    I then attach the upper halves of the hull to the bottom, but do not yet seal the two halves together:

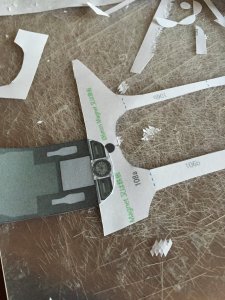

    Next, glue is applied to the tabs on the rear half of the wing and it is glued onto the Ranger:
    IMG_0551.JPG IMG_0552.JPG
    Finally, I seal the two halves together, completing the Ranger:
    Up next, I'll start work on the second Lander!

    Thanks to all for watching and for the kind words.

    Attached Files:

  16. gilgamesch

    gilgamesch New Member

    Joined:
    Nov 10, 2014
    Messages:
    142
    Likes Received:
    210
    Thx for this step by step build instructions - very helpful! :Bravo:
  17. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219

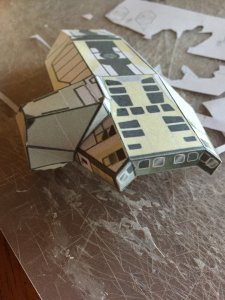

    Work continues with the assembly of the second lander's main hull.

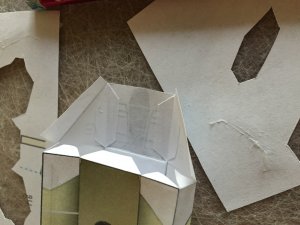

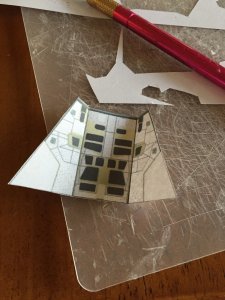

    To begin, I seal the front of the hull. I would strongly advise scoring these areas, as the folds here are rather complex:

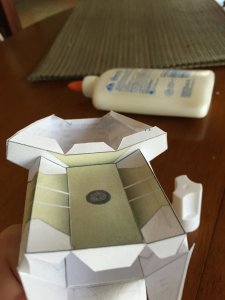

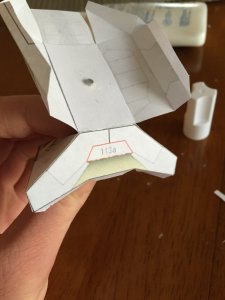

    Next, I cut out and install the divider/ support piece between the two sections of the hull. I would not recommend sealing the front of the hull yet, as that makes attaching the central piece of the bottom much trickier.
    IMG_0570.JPG IMG_0571.JPG

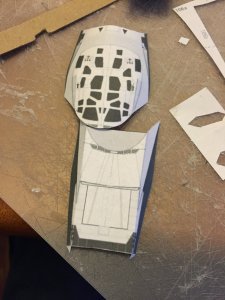

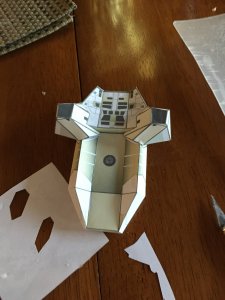

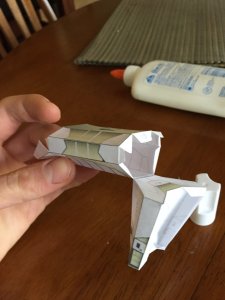

    I then attach the bottom of the central hull and connect it to the front:
    IMG_0572.JPG IMG_0573.JPG

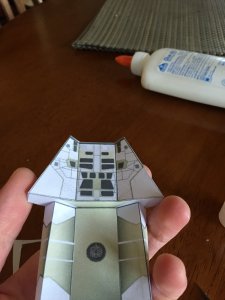

    Next, I cut out and install the bottom of the cockpit:
    IMG_0574.JPG IMG_0575.JPG
    Lastly (for this post, at least), I cut out and install tabs at the rear of the hull:
    Up next: finishing the hull's rear and finished pictures of the lander's main hull
    Rhaven Blaack and Revell-Fan like this.
  18. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219

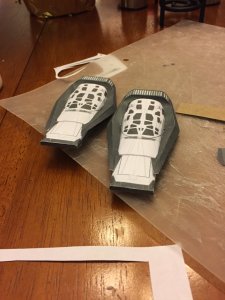

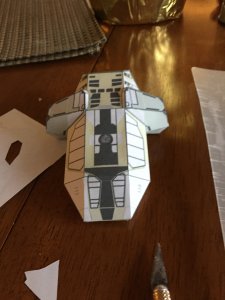

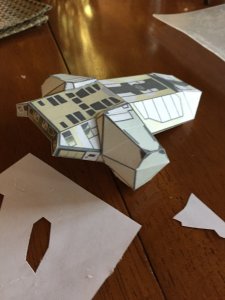

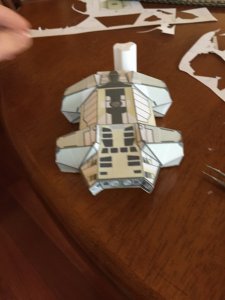

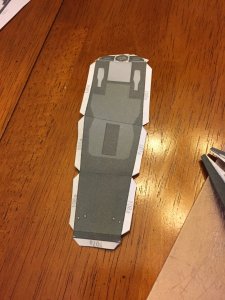

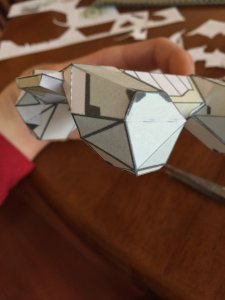

    Next, I cut out the final piece of the ship's main hull:
    I begin by attaching it to the rear of the central piece of the bottom:
    Next, I attached it to the top piece:

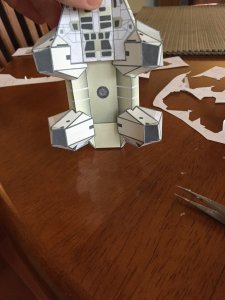

    Finally, the sides were closed:

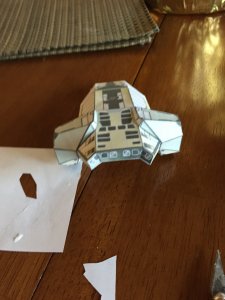

    Aaaaaand done:
    IMG_0581.JPG IMG_0582.JPG
    Rhaven Blaack and Revell-Fan like this.
  19. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219

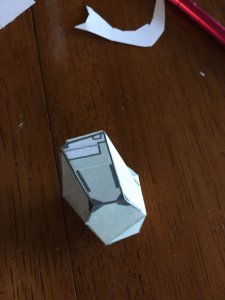

    More progress: The front pods (possibly secondary engines?) are done.

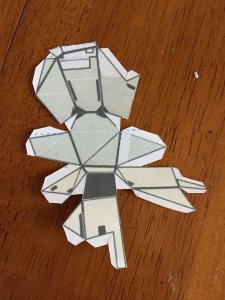

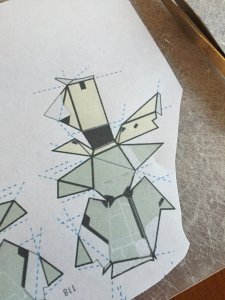

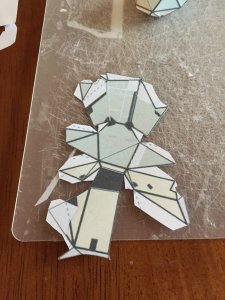

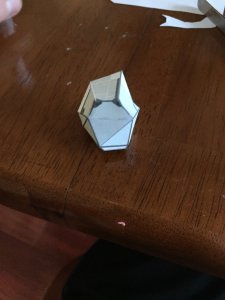

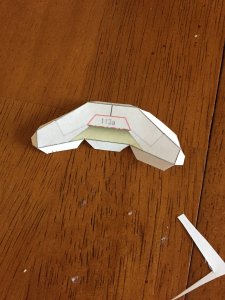

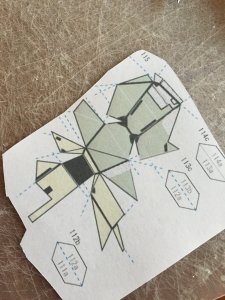

    I begin by cutting out the part with a LOT of tabs:
    IMG_0583.JPG IMG_0584.JPG
    Next, I fold on all of the lines except for some of the thin grey ones:

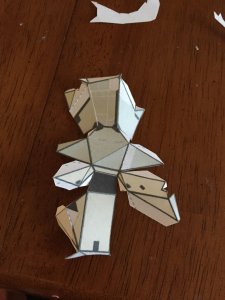

    The part is then assembled:
    Next, you'll need:

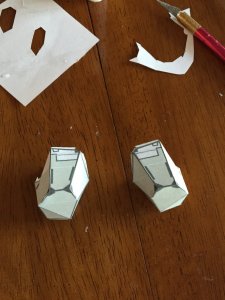

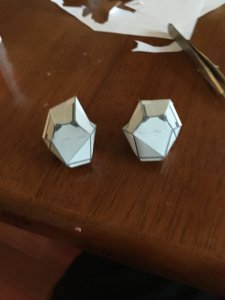

    A dragon's right big toenail, the blood of a virgin (fresh or store-bought), 1/19th of a unicorn's horn, the 43rd page of an overly-long, convoluted fantasy novel (preferably one with a pretentious name), and a goat hoof. Combine all of these ingredients and then drop the first engine pod in. When the smoke clears, you'll have two:

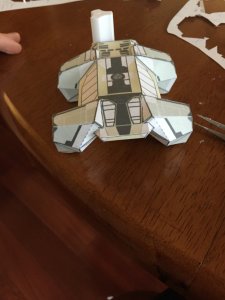

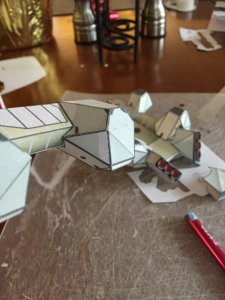

    Finally, the pods are attached to the front of the ship:
    IMG_0588.JPG IMG_0589.JPG IMG_0590.JPG IMG_0591.JPG IMG_0592.JPG
  20. Cforrest900

    Cforrest900 Member

    Joined:
    Jun 25, 2013
    Messages:
    377
    Likes Received:
    219
    Second to last bit of work on the ENTIRE PROJECT!

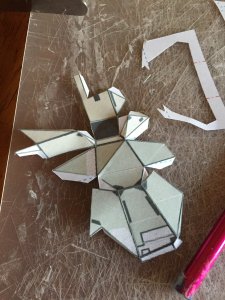

    First, the parts are cut out and folded:
    IMG_0593.JPG IMG_0606.JPG IMG_0607.JPG
    Next, I glue them together, then, by repeating the process from step three of the above post, I duplicate the already made engine:
    IMG_0608.JPG IMG_0609.JPG

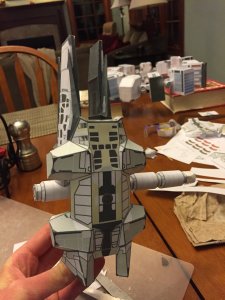

    The engines are then attached to the ship:
    IMG_0610.JPG IMG_0611.JPG IMG_0612.JPG IMG_0613.JPG IMG_0614.JPG
    Up next: building the thrusters
    gilgamesch and Rhaven Blaack like this.
