Building the Walthers N scale Blast Furnace

Discussion in 'N / Z Scale Model Trains' started by TruckLover, Dec 25, 2006.

  1. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    Thanks Herc, I like the color too, I think it looks A LOT better than the one on the box!! Andmine will have some rust and water marks running down the sides. :thumb:
  2. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0

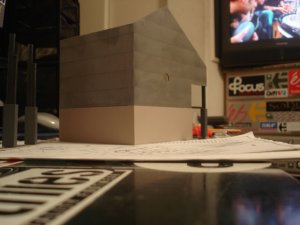

    Step 15

    Added 2 of the Main Furnace Walls. I painted them an Aluminum color and I will weather the heck out of em so that they look more like if has been there for a while like the rest of the furnace.

    That is Myth Busters on the TV in the backround, love that show

    Attached Files:

  3. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0

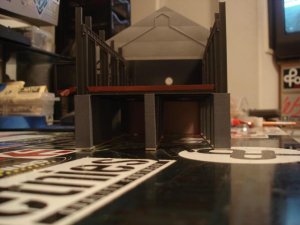

    Step 16

    Was to start the Cast House. This is one of the 3 support walls. Again, the brick encasements have been sprayed grey instead of that nasty yellow!

    Attached Files:

  4. COMBAT

    COMBAT Member

    Joined:
    Oct 29, 2006
    Messages:
    833
    Likes Received:
    0
    That monitor of yours need more stickers. sign1
  5. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    sign1 I know, I didn't feel like cutting them to fit, If you haven't figured it out, I am pretty lazysign1 I got all those stickers from a skate compotition last year!!
  6. CNCPGUY

    CNCPGUY New Member

    Joined:
    Dec 20, 2004
    Messages:
    22
    Likes Received:
    0
    Can't wait to see the finished project. I was going to do that for my layout but there is no way I would have done that good of a job. Keep up the good work!!! :thumb:
  7. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0

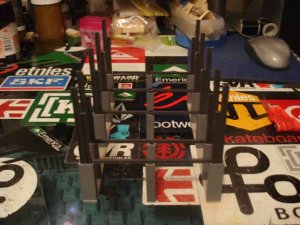

    Step 17

    Here is the finished Cast House. Next, the Upper Cast House Floor will be installed.

    Attached Files:

  8. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    Thanks :D

    This is the first time I have done this thurow of a step-by-step project. I might consider doing this with the rest of the steel mill buildings too (coke oven & quencher, rolling mill, and electric furnace) once I get them. :D :D
  9. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0

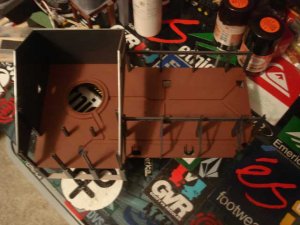

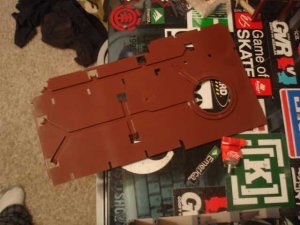

    Step 18

    Was to paint the Cast House 2nd level floor to the rust brown primer color. This was also the ugly yellow color that the brick encasements were molded in. This pic is of it still wet, it will dry the same color as the Furnace. You can see were the molten hot steel would run along the paths to waiting hot metal cars on the tracks below.

    Attached Files:

  10. COMBAT

    COMBAT Member

    Joined:
    Oct 29, 2006
    Messages:
    833
    Likes Received:
    0
    All I can say is :thumb: :thumb: :thumb:
  11. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0

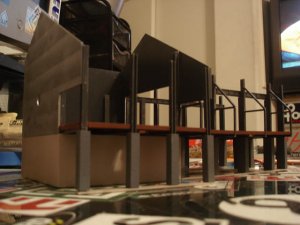

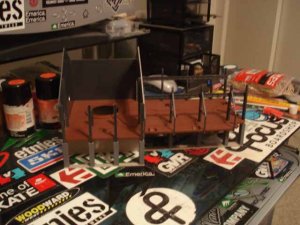

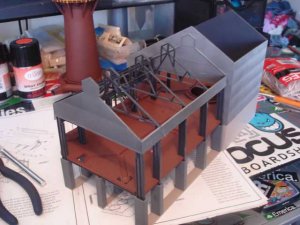

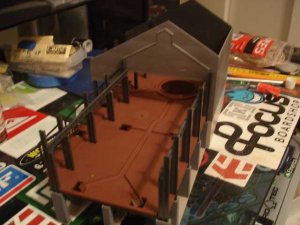

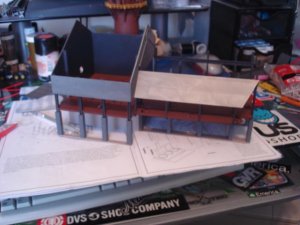

    Step 19

    Here are some pics of the Cast House Top Level Floor in it's final postion over the Cast House and Main Furnace Room. I glued the floor down and added another wall to the Main Furnace Room wall. I also added Slag Runner Roof Supports.

    In the next 2 or 3 steps, you will see the main building take shape with roofs and the rest of the walls being added on, that is for tomarrow though.

    Attached Files:

  12. COMBAT

    COMBAT Member

    Joined:
    Oct 29, 2006
    Messages:
    833
    Likes Received:
    0
    Looks great. I have a question. Once you put the roof and such on will you be able to see the walls and such? :oops:
  13. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    Thanks, Nope, you shouldn't be able to see the blank on the inside of the rooms. The furnace comes out the top of the roof over the Furnace room. We will have to see just how much you can still see inside later on when I get some more glue tomarro (I completly ran out) :eek: :curse:
  14. COMBAT

    COMBAT Member

    Joined:
    Oct 29, 2006
    Messages:
    833
    Likes Received:
    0
    Are you putting lights in this as you go?
  15. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    HHMMMM, Lights huh, that sounds like a cool idea, wish I had some to do that, that would look neat at night for night operations.
  16. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    Step 20

    Glued the Slag Runer Roof to the supports and the last part of the Furnace Room wall was added.

    Attached Files:

  17. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    Step 21

    Glued the 2nd level Cast House walls. I also added the 2nd level Cast House Roof Supports and the end Cast House wall.

    Attached Files:

  18. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0

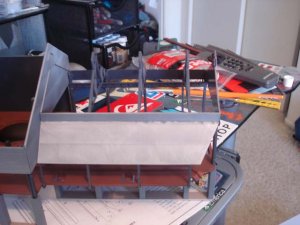

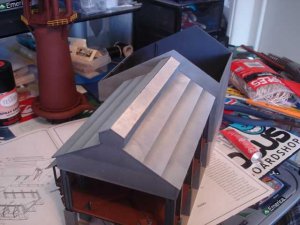

    Step 22

    Glued 2 of the Cast House roof pieces onto the Cast House Roof Trusses

    Attached Files:

  19. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0

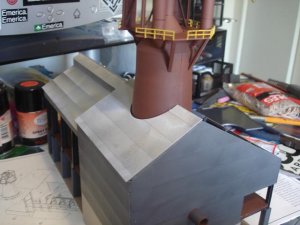

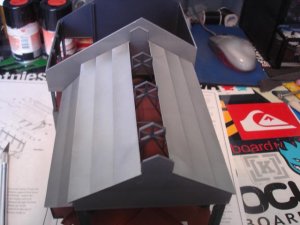

    Step 23

    Glued the remaining Cast House Roof sheets in place. The Cast House is now done. Next will be putting the Furnace on the foundation in the Main Furnace Room and the Furnace Room roof.

    Attached Files:

  20. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0

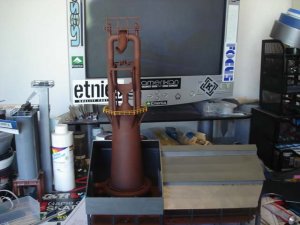

    Step 24

    Glued the Furnace in place on the foundation of the 2nd floor Furnace room. And also one fo the Furnace Room Roof sheets was glued in place.

    Attached Files:
