Building the 'new' Setagaya Japanese layout

Discussion in 'N / Z Scale Model Trains' started by redracer, Feb 10, 2003.

  1. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0
    Construction has commenced on the 'new' Setagaya - actually a rebuild of the frame, with a little more length and more features.

    Pictures will be posted here regularly, but you can read more information on it's web page ...

    http://setagaya.internet.directnic.com

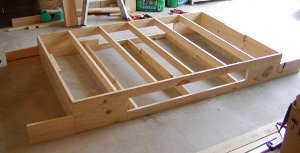

    Here is the completed main module frame (upside down) and looking at the back.

    Attached Files:

  2. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0

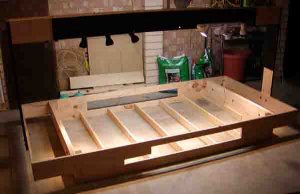

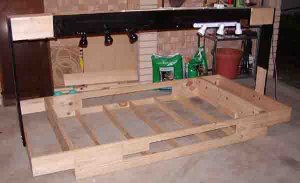

    Tonite the frame sections were finished and bolted together with hex bolts and T-nuts. Also the light box and supports have been assembled. Here you see the completed assembly, before painting, without the lights on ...

    Attached Files:

  3. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0
    ... and with the lights on.

    Attached Files:

  4. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0

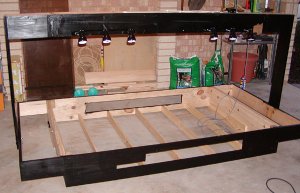

    The frame has now been completely assembled and painted :cool:

    Attached Files:

  5. Gavin Miller

    Gavin Miller Member

    Joined:
    Aug 4, 2002
    Messages:
    225
    Likes Received:
    0
    Doug,

    Can't wait to see subway trains running behind those windows in the frame.

    Gavin
  6. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0
    Are you making the trip over the Adelaide in June ? :D
  7. Gavin Miller

    Gavin Miller Member

    Joined:
    Aug 4, 2002
    Messages:
    225
    Likes Received:
    0
    Just starting a new business at the moment Doug, so doesn't look likely.

    See how busy I am in June. I am hoping to be "flat out" :)

    Gavin
  8. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0

    Attached Files:

  9. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0
    Here is the layout setup in it's new 'home' :cool:

    Attached Files:

  10. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0

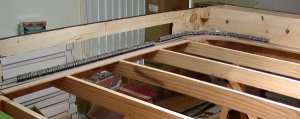

    The subway track has been placed in position - here is a shot looking at the 'front' of the layout ....

    Attached Files:

  11. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0

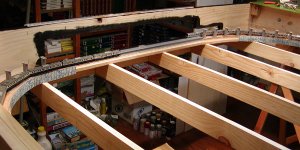

    ... and here is the 'back' ...

    Attached Files:

  12. Gavin Miller

    Gavin Miller Member

    Joined:
    Aug 4, 2002
    Messages:
    225
    Likes Received:
    0
    That looks like it's going to be a long escalator ride down from the surface Doug. Speaking of which, will you be modelling escalators / steps / elevators whatever?

    Looking great so far! Keep us in the picture.

    Gavin
  13. gerbs4me

    gerbs4me Member

    Joined:
    Nov 11, 2002
    Messages:
    61
    Likes Received:
    0
    looks awesome so far, kepp the pics coming:cool:
  14. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0
    Yes it is a long way - usually most Japanese stations are far underground, but quite often there is only stairs !!!

    Between the station and the 'surface' will be an underground shopping arcade (that is why there is a longer 'slit' in the front viewing window. The plaform will be the length of the full height opening, but on the LHS you will be able to see the train going into the underground tunnel, and for that reason the curves are very broad (541mm)).
    So in the higher, shorter opening will be the shopping arcade, using cutup buildings that some people may remember were on the front of the old layout. Luckily some new Tomix city office buildings that came out in the last couple of months, incuded elevators and escalators, so I have plenty to use in the subway, for the two levels. All this will have lighting of course so you can see the details.
  15. Gavin Miller

    Gavin Miller Member

    Joined:
    Aug 4, 2002
    Messages:
    225
    Likes Received:
    0
    That sounds like a great idea!

    A visible subway is a project I have always dreamed of doing myself, so I am watching with interest.

    Gavin
  16. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0

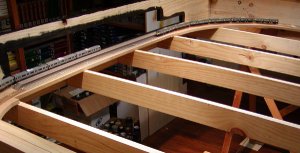

    Progress after this weekend includes nailing down the subway track, fitting protective edges to the track bases, and installing some fake roof support piers for the visible sections of the subway.

    Attached Files:

  17. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0

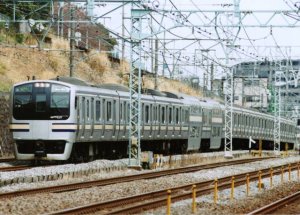

    Sorry there has been no input for a while. I got some new shelves, and had to re-organise the layout room to fit them in, but now there is more room to work all around the layout. I have also had to re-align the subway traack to fit the platform in, and work out where to put the gaps to activate the automatic station-stopper circuit I am using. I have decided to run 4 car Kato 221 (one of Gavin's favourites!!!)& 223 sets on the overhead suburban line. In the mean time, here is a photo of one of the trains I will be using in the subway ...

    Attached Files:

  18. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0

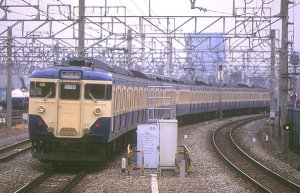

    ... and this is the other set I will be using in the subway. It is a 113 set, built in the 1960/70's. However it has been replaced on this particular line now by the set in the previous picture - the E217.

    Attached Files:

  19. Gavin Miller

    Gavin Miller Member

    Joined:
    Aug 4, 2002
    Messages:
    225
    Likes Received:
    0
    Shite. Y'gotta love all that catenary above the 113 set!!

    Do the real E217s with double deck cars run through the subway (like Sydney's double deckers?)

    Gavin
  20. redracer

    redracer Member

    Joined:
    Jan 11, 2003
    Messages:
    122
    Likes Received:
    0
    Didn't know you understood Japanese :)

    The DD E217 cars are 'Green' cars, which means First Class. you have to pay extra to ride in them. You can see the same type,@but single dec‚‹, in the 113 sets, but with the longer windows.

    Yes they do run in the subway, right through Tokyo to Narita Airport.
