Building my own x-wing

Discussion in 'Science Fiction & Fantasy' started by dnalor, Apr 18, 2012.

  1. Zathros

    Zathros Guest

    :eek:When I saw that picture of those engines, I realized that I did not have the scale of this model properly realized in my mind, das ist unglaublich!:thumb:
  2. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,660
    Likes Received:
    1,080
    Sprakeloos !!!

    ....... :wink:
  3. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    924
    Likes Received:
    183
    Yes..

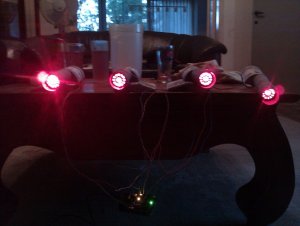

    4 engines running smooth...

    maybe the flicker is a little to small..
    i think that i have to rewrite the sketch of the arduino so that 2 ports are reserved for the flicker..and two flicker leds for each port.

    Now i have 1 port with 4 steady leds and 1 port with 4 flicker leds.

    But all in all i like it :)
    ahh.., in real life it looks better..more clearly

    http://www.youtube.com/watch?v=RIrza-myc24

    i included a picture with two light diffusers..homemade with the hotglue gun.

    Attached Files:

  4. Zathros

    Zathros Guest

    If you came up with a diffuser shape you really like, I offer as a suggestion using a two part "steel epoxy" to make a mold, using whatever tools at hand to shape it before it hardens, it will give you a great negative for your glue gun. You will be able to pop the melted glue diffuser right out. I would lubricate the mold with petroleum jelly.

    Also, you might want to take an LED and mount it into an electric drill, and experiment with different shapes by lightly shaping it with extra super fine sand paper. Doing the tape would diffuse the light, while leaving the sides alone would send that light that way. I have seen people mount them in Lathes and milling machines to get the effect they wish. Just a passing thought. It looks great! :)
  5. zombieofthepast

    zombieofthepast O.D.S.T.

    Joined:
    May 10, 2012
    Messages:
    32
    Likes Received:
    0
    This is amazing. That is all.
  6. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    924
    Likes Received:
    183
    @ Zathros..the diffusers need to be differt..
    your idea of making a mold is perfect for something that needs to be the same.
    But my diffusers need to be different..
    They had to look a little like flames...and flames are different for every engine.
  7. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    924
    Likes Received:
    183

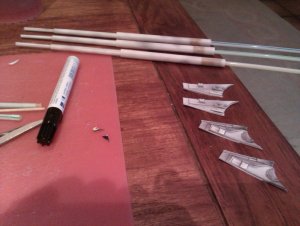

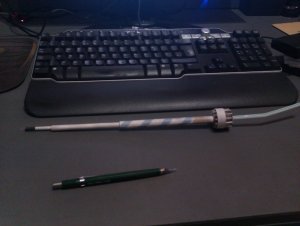

    I have started with building the guns..
    And until now it goes rather good.

    I'm still looking for a good support rod...
    the straw was great...perfect size.. light.....but not long enough..
    so now i have to dive into my fantasy of what i can find at work..

    and use for my guns :)

    Attached Files:

  8. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,660
    Likes Received:
    1,080
    Wish I had time to do my models at work ..... :(
  9. Zathros

    Zathros Guest

    I understand what you are saying. In the real construction of jet engines, they must look the same, or there is a problem. My brother in law designs jet engines, and has taught me much. However, recreating a "Star Wars" special effect does not necessarily have anything to do with reality! No matter what you choose, I know the end result will be fantastic! . :)
  10. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    924
    Likes Received:
    183
    @fokawe..i don't build everything at work...
    at this moment my work is the LED soldering part..
    And at home i build the guns..
    (at work i have a brown desk..at home a grey one)

    @ Zathros...Does your brother has also a real jet engine in the garage?..
    When i put my engines at youtube i saw homemade jet engines...and they are WAY cool...they look simple...would love to have one to play with
  11. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    924
    Likes Received:
    183

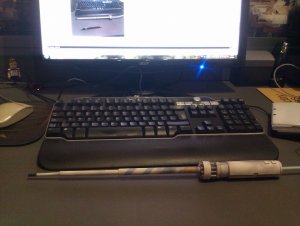

    And again a step further with gun 1

    Attached Files:

  12. zombieofthepast

    zombieofthepast O.D.S.T.

    Joined:
    May 10, 2012
    Messages:
    32
    Likes Received:
    0
    Looks great. I like how you have the picture from a previous post on your monitor... :mrgreen:
  13. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    924
    Likes Received:
    183
    today all LEDS for the R2 unit are ready..
    i only need to install them into the R2.

    i'm waiting for the LEDS i ordered for the cockpit so that i can install finally it.

    The cockpit and R2 need to be installed in 1 time.. because i will use my serial solution for the leds...i know it's not the most perfect way...but it works.

    The only bad thing...i will can not reprogram the R2...alone...it's always with the cockpit.

    hum....that is something for my next project. :)
  14. Zathros

    Zathros Guest

    That gun looks excellent. When something is modeled that big and looks that good, you have really accomplished something! :)
  15. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    924
    Likes Received:
    183
    :) thanks but you shoulden't look to close..then you see my building errors..:)
    But they look very nice..

    i started on the other 3..
    Normally i build 1 by 1...
    Now i try to build them in 1 time.
    Maybe that goes faster, in my mind.

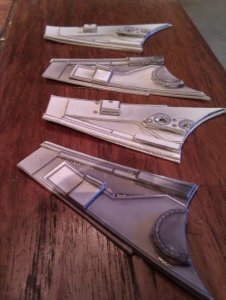

    the second picture is from some details which are to be placed under the engine intakes.

    Attached Files:

  16. vbsargent

    vbsargent Member

    Joined:
    Apr 17, 2008
    Messages:
    185
    Likes Received:
    3
    The guns look really good. I like the layering on the engine details. Was that in the design or your addition?
  17. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    924
    Likes Received:
    183
    that layering is my addition..
    i printed that piece 3 times
    used 1 as the first layer..
    and the other 2 i cut up to get this effect.

    i used this with succes on the millenium falcon..
  18. DanBKing

    DanBKing Dan the Man

    Joined:
    Feb 29, 2012
    Messages:
    1,660
    Likes Received:
    1,080
    And with great success on this model too :thumb:
  19. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,601
    Likes Received:
    2,555
    The detail that you are putting into this model is AMAZING!!!
    This looks like it will turn out to be a GREAT model.
  20. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    924
    Likes Received:
    183
    i only hope that the folding mechanism can hold up the large wings...
    the wings look very heavy....
    thank god that the engines are close to the fuselage.
