Building my own x-wing

Discussion in 'Science Fiction & Fantasy' started by dnalor, Apr 18, 2012.

  1. Zathros

    Zathros Guest

    It's freakin' awesome! :)
  2. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183

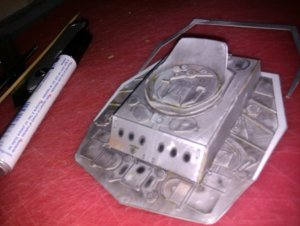

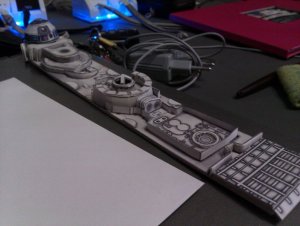

    Finnaly the droid plate is ready..
    Damn that small wall in the back is difficult..

    Also started is the back of the engine

    Attached Files:

  3. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183

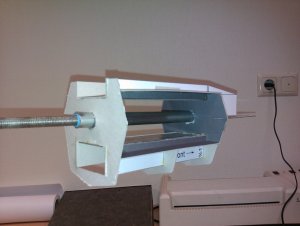

    Damn i forgot the holes for the wings..so that they can open..

    Now i have cut them ...and made the holes a little bigger so that i also have an mounting point in the back...

    Now the pieces i need for attaching the wings to the hull.

    Attached Files:

  4. Zathros

    Zathros Guest

    This really is coming out superb. I am anxious to see it come together. It looks great so far! :)
  5. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,526
    Likes Received:
    2,460
    This is coming together beautifully.

    You are doing a GREAT job on it.
  6. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209
    Wow, this is very cool! Do you know what scale that is?
  7. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183
    No not at this moment...
    but the R2 looks like the same scale as an 3 3/4 inch action figure
  8. imcold

    imcold Member

    Joined:
    Feb 3, 2008
    Messages:
    122
    Likes Received:
    1
    I guess it's about 1/16 when going from A4 to A1. Massive! Also nice work on the cockpit and the droidplate, you're progressing quite quickly :)
  9. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183
    1/16...that's a nice size :)

    Yes the build goes at a nice speed, but it is difficult..
    Not from everything is a howto..

    At this moment i'm trying to fold the wings..
    But the folding line is round, not sharp enough.
    I'm thinking about cutting the wing up, and glue it in place for sharper lines.

    I hope to complete the fuselage this week..
    I have new glue so Now i can start :) finally.
  10. imcold

    imcold Member

    Joined:
    Feb 3, 2008
    Messages:
    122
    Likes Received:
    1
    Try to fold it around a sharp edge, I usually use some rulers to get a nice fold. If you need some help with instructions, PM me, I'll see what I can do.
  11. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183
    hum...the sharp edge part isn't that easy for this size..
    so i start first with the easy parts..hum there are none :)

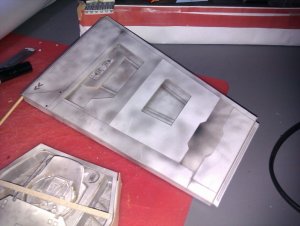

    Just ready with glueing 2 parts of the underside to the chassis..
    front-chassis glued to the back chassis..
    AND DAMN that's difficult.......really

    I had cut of the folding lines so i figured out were to fold..
    And i almost got it right....almost.


    ah the 3 part is glued only on 1 side...that is why it sits like this. it has to dry first.

    Attached Files:

  12. Zathros

    Zathros Guest

    This will be a model to behold! i love big paper models! :)
  13. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183
    do you want to do led lights?..
    you should try arduino.. looks interesting.
    I want to do led lights with this.

    But first the most dificult parts and then look for lights.
  14. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209
    Looking very good!
  15. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183
    yesterday tackeld my wing problem.
    my problem was that when i bend the wings in to shape..
    The folding wasn't sharp..
    I tried it also with a sharp piece of wood to get a nice fold, but that didn't work.

    Now my solution is: to cut the carton a little and bend at the almost cutline.
    For me it works like a charm.

    Now, i have to look for a filler to make the wings more stiff.

    but i'm proud of it :)

    Attached Files:

  16. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209
    Do you score your parts before cutting and folding?
  17. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183
    how do you mean score?
    first i glue the prints on some thicker cartboard..
    then cut them out.
    after i cut the foldinglines a little so that they bendt easier.
  18. dnalor

    dnalor Active Member

    Joined:
    Oct 28, 2011
    Messages:
    928
    Likes Received:
    183

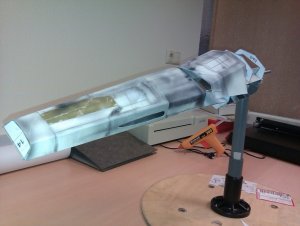

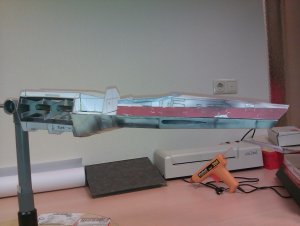

    ok hull part 3 is installed.:)
