building CSS Charleston

Discussion in 'Ship & Watercraft Models' started by paperboy, Jun 27, 2008.

  1. paperboy

    paperboy Member

    Joined:
    Feb 16, 2005
    Messages:
    96
    Likes Received:
    0
    Hi All

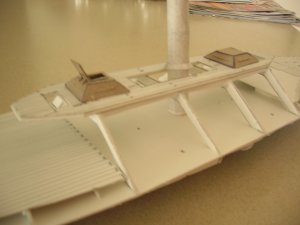

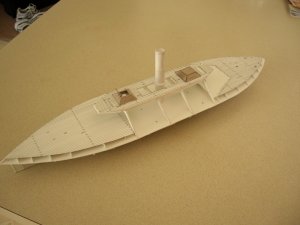

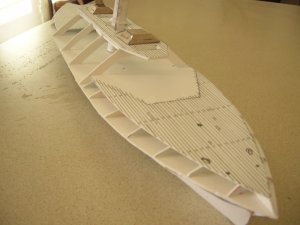

    Just thought that I would post a few pics of the latest model that I've been building of the CSS Charleston. I've had some question in my mind as to the shape of the bow and sincw there aren't too many/any plans or pics/drawings that clearly show the bow I've gone with the best guess that i like. The plan that I used is the one in P.C. Cokers book named "Charlestons Maritime Heritage". It shows the accepted plan of the Charleston as well as the plan for the torpedo boom at the bow.

    Vernon

    Attached Files:

  2. Gregory Shoda

    Gregory Shoda Member

    Joined:
    Apr 18, 2004
    Messages:
    235
    Likes Received:
    0
    Good start! I bet the shorings for the casemate may approximated those in the original ironclad.
  3. paperboy

    paperboy Member

    Joined:
    Feb 16, 2005
    Messages:
    96
    Likes Received:
    0
    Hi Gregg

    They maybe to deep across the top frame but with the casemate ends and sides test fitted on it looks pretty good. I want to make the grating in the manner that it was made for the HMS Victory so the frame will be slightly visible. I'd love to build a model of one of these ships with all the frames in the hull and casemate or with the casemate half open to show the interior in the manner of the Cottage Ind. Palmetto State.


    Vernon
  4. paperboy

    paperboy Member

    Joined:
    Feb 16, 2005
    Messages:
    96
    Likes Received:
    0

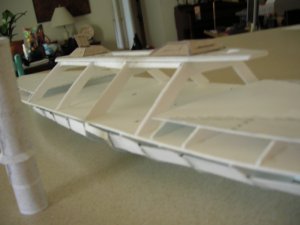

    This is a closeup of the casemate. I'm rebuilding this now and have upsized it to 1/100.
    Vernon

    Attached Files:

  5. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,693
    Likes Received:
    3,531
    This was an old thread, I am assuming you have started a new model by upscaling the previous one? If so, very cool! I love the way this looks and look forward to your finishing of her. Great subject matter. You could have started a new thread, but continuing it here is perfectly fine, as you are the Original Poster. :)
