BSG medEvac Raptor

Discussion in 'Science Fiction & Fantasy' started by Rhaven Blaack, Aug 30, 2012.

  1. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254
    I have started the BSG MedEvac Raptor from Revell-fan.
    You can find this model (as well as the rest of the Raptors) in the download section.

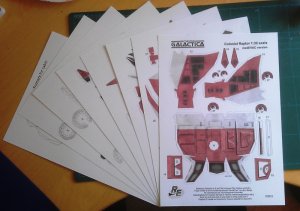

    The kit has 8 sheets of part and 10 sheets of instructions..

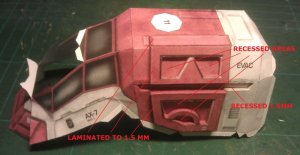

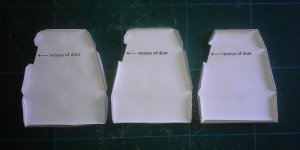

    The center (horizontal) section of the main hatch is recessed 1.5mm.

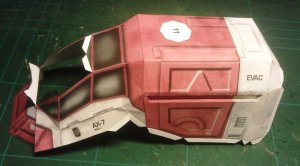

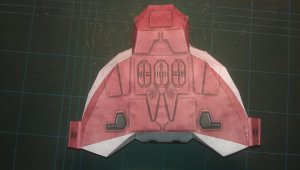

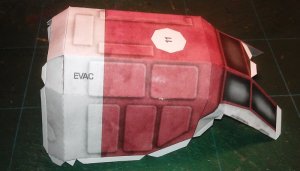

    The detailed main hatch is attached.

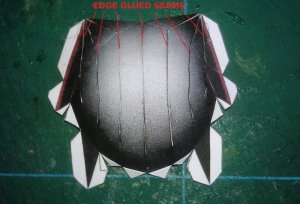

    The petals of the wind screen dome are edge glued for a smoother finish (I know that I should have painted the edges first, but I did not think of it at the time).
  2. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254

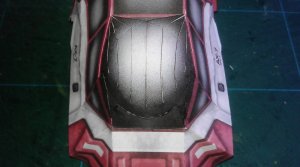

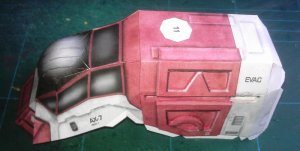

    Dome wind screen in in place.



    I added strips of paper behind the seams of the dome to add strength to the dome.
  3. Zathros

    Zathros Guest

    I was hoping you were going to raise the panels and you did them exactly how I would have. They look great! :)
  4. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254
    Actually, there are only a few raised panels in the standard kit.
    I am building this straight as the kit is first. Once I get a feel for it, then I will rebuild it with more detail. This model (like most of Revell-fan's models) has room for added detail (which I will capitalize on).

    I will (eventually) make all four variants of the Raptor (fully detailed of course).

    Please stay tuned to your local Colonial Broadcasting channel for more updates.
  5. lehcyfer

    lehcyfer Member

    Joined:
    Mar 19, 2008
    Messages:
    305
    Likes Received:
    6
    Great job with the dome shaping :)
  6. Zathros

    Zathros Guest

    Was there ever talk of an interior for this. I know of Silveroxide's one off beauty. :)
  7. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    761
    Likes Received:
    204
    Nice! I'll be watching this with interest.
  8. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254
    Thank you for the kind words of encouragement.

    Zathros: Yes, Revell-fan and I are talking about an interior (that will be an add-on kit) but, there are a few other projects that Revell-fan needs to clear off his work bench first.
  9. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,891
    Likes Received:
    3,537
    Big Z: Yep, it is true. Cockpit interior AND Assault Raptor are on our list. But we have to make something BIG first..! :twisted:
  10. Revell-Fan

    Revell-Fan Co-Administrator Administrator

    Joined:
    Aug 1, 2009
    Messages:
    5,891
    Likes Received:
    3,537
    Your build looks absolutely fantastic, RB!

    And thank you very much for spotting a little mistake on parts 12 & 13.

    Both parts feature glue tabs on the edges where they are supposed to meet. Just cut off the flaps on the neighbouring edges and assemble the parts as shown in the instructions. Well, it is always better to have more flaps than you need than to have flaps missing..! :mrgreen:
  11. Zathros

    Zathros Guest

    That sounds awesome! I always though that ship would be an awesome craft to fly, and had incredible punch for a ship of it's size. :)
  12. scifimodelfan

    scifimodelfan Member

    Joined:
    May 10, 2011
    Messages:
    105
    Likes Received:
    4
    Absolutely beautiful can't wait to see it finished.
  13. silveroxide

    silveroxide Well-Known Member

    Joined:
    Aug 23, 2007
    Messages:
    2,150
    Likes Received:
    487
    I built this model a while back. I did not have too much info on the interior at the time, but since the BSG stuff went to auction, a wealth of reference photos became available. good luck on the future attempt of super detailing. The canopy bump was a stumbling block but I got something close enough. There is some info out there on how to make canopys for planes, especially for the Super Tucano. That procedure can be of some help in building a molded canopy for it. I am still tied up with my house project and my Daughter has asked me to help with her house as well. Daddy cannot say no to his baby. I am retired fully and still working over eight hours a day without pay. I am getting to old for this but the grand-kids, dogs and two houses keep me busy. Enjoy and see you around the forums.
  14. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254
    Thank you everyone for the kind words and encouragement.

    Welcome back Silveroxide. It is good to see you back here.
    I am looking forward to seeing more of your work.
  15. Zathros

    Zathros Guest

    Rhaven, it's coming out awesome!


    @Silveroxide, good to have you back! :)
  16. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254
    Update

    Here is an update of my progress.

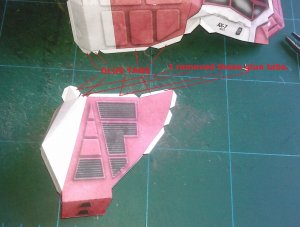

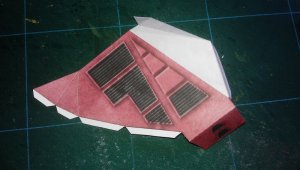

    As Revell-fan had stated earlier, there are extra glue tabs on both parts 12 & 13 (top part of the wing) as well as where these parts meet the cabin.
    THIS IS THE SAME WITH ALL OF THE RAPTORS!

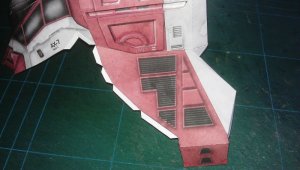

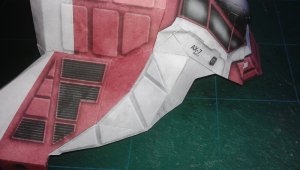

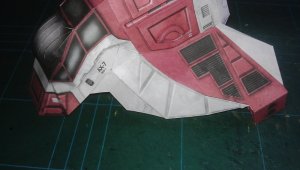

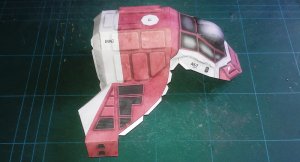

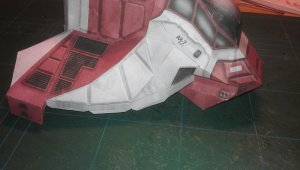

    I removed the tabs that were on the wing and attached it to the cabin.

    Of course did the same with the other side.



  17. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254
    More photos

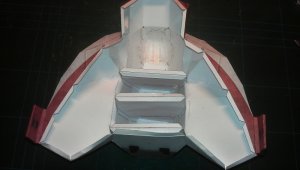

    internal formers

    Internal formers in place

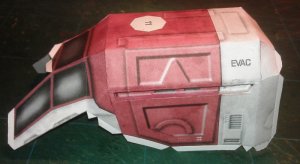

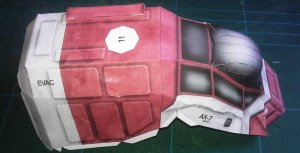

    Cabin finished (with the exception of the greebles, which will come next).
  18. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254

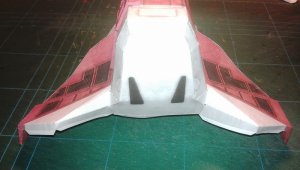

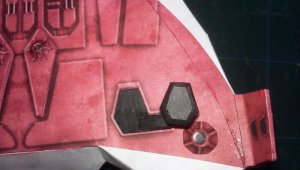

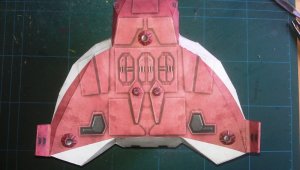

    Here are some of the greebles on the main body.

    RCT attached.

    Front nose gear attached.

    Left landing foot.

    Right landing foot

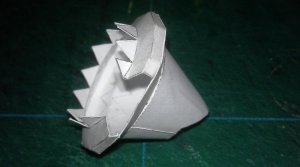

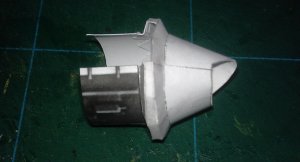

    I am starting to make one of the main thrusters.

  19. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator

    Joined:
    Jun 12, 2009
    Messages:
    7,417
    Likes Received:
    2,254

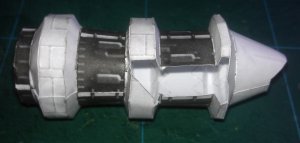

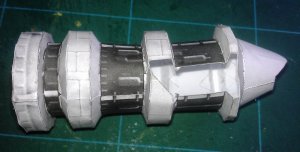

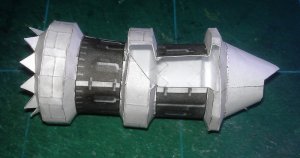

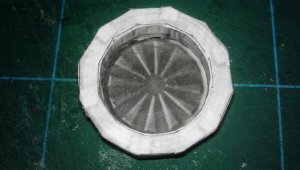

    More of the main thruster

    Here is the rest of the main thruster build.






  20. micahrogers

    micahrogers Active Member

    Joined:
    Jul 12, 2012
    Messages:
    1,036
    Likes Received:
    272
    Looks great so far... :thumb:
    I have the plain raptor downloaded and I think it will be my next project.
    I will use this thread as an assembly guide.
