Brown B 1 Racer by Dragos

Discussion in 'Aircraft & Aviation' started by Dragos, Jun 19, 2011.

  1. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0

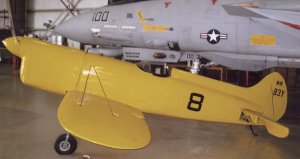

    My first civilian airplane: the Brown B-1 Racer

    Attached Files:

  2. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0

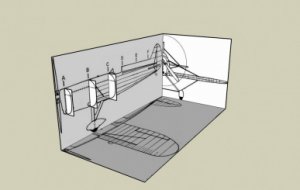

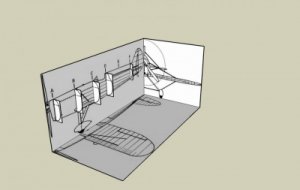

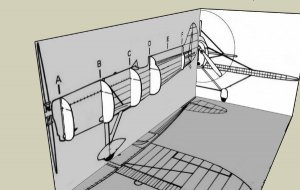

    I've made the first segment

    Attached Files:

    • B3.jpg
      File size:
      45 KB
      Views:
      12
    • B4.jpg
      File size:
      44.6 KB
      Views:
      7
  3. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0

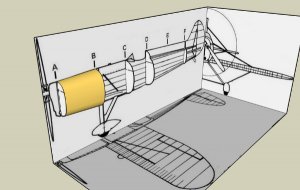

    A little progress

    Attached Files:

    • B5.jpg
      File size:
      21.4 KB
      Views:
      7
  4. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0

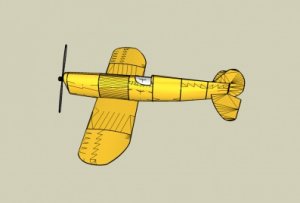

    Almost ready

    Attached Files:

    • B6.jpg
      File size:
      20.4 KB
      Views:
      15
    • B7.jpg
      File size:
      20.4 KB
      Views:
      10
    • B8.jpg
      File size:
      20.7 KB
      Views:
      9
  5. Zathros

    Zathros Guest

    That is a really pretty airplane. I would have loved to have flown that. You have a winner there!
  6. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0
    I hope that geometry fans or not will like a Apollonian cone , as the one seen in the Agora movie.
    Check the download section.

    Attached Files:

  7. Zathros

    Zathros Guest

    That movie sounds really good, I wonder why missed it. You would think it would be on TV by now? Thanks for the cone. As a former machinist and tool and dye maker, and blah blah blah, I love this kind of stuff too!


    I humbly ask, what is your final intention with this beautiful plane you are making? It is quite a pleasure to behold?

    Also, as a Rhino user myself, I am most impressed by your ability to have grasped and turned you thoughts into reality! Very inspirational!
  8. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0
    The model will be free and it's designed in Sketchup not Rhino, altrough some times I use Rhino.
  9. Zathros

    Zathros Guest

    Then I'm even more impressed!! I'd like to invest time in Sketchup but it's hard enough with Rhino, getting older doesn't help either. This is a great gift to the modeling community!
  10. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0
    I believe that Sketchup it is easyier to use but Rhino is much more precise.
  11. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0

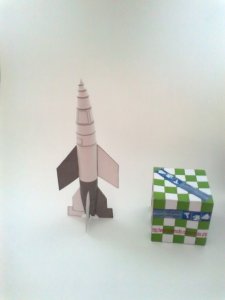

    No progress with the Brown , but mean while I've made a rocket, the A4b.

    Attached Files:

    • A4b.jpg
      File size:
      48.1 KB
      Views:
      7
  12. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0

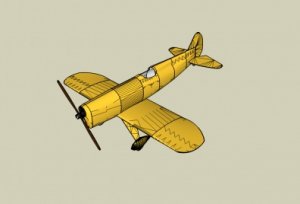

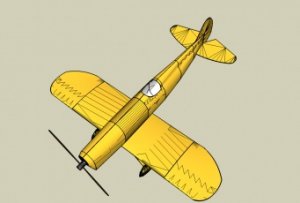

    After a long period of absence , the model is almost ready.

    Attached Files:

  13. Zathros

    Zathros Guest

    Oh WOW!! This is such a beautiful plane! I look forward to it's release. :)
  14. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0

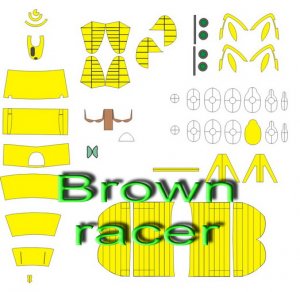

    A modeler from Machete din carton managed to finnish the model. Now is available in the download area.
  15. Zathros

    Zathros Guest

    I just approved your plane, THANK YOU!!:thumb:, all ready to DOWNLOAD:

    http://www.zealot.com/forum/downloads.php?do=file&id=1352"














    :mrgreen:
  16. Zathros

    Zathros Guest

  17. brandlm

    brandlm New Member

    Joined:
    Feb 23, 2008
    Messages:
    3
    Likes Received:
    0
    Has anyone tried to do lofting and skinning like Dragos did for this model in Blender?
  18. Dragos

    Dragos Active Member

    Joined:
    Jun 8, 2006
    Messages:
    914
    Likes Received:
    0
    I didn't use Blender, that's Sketchup Google.
  19. Zathros

    Zathros Guest

    Dragos did such a nice job on this model, I'm not sure what would be gained, but hey, what ever turns you on! :)
  20. brandlm

    brandlm New Member

    Joined:
    Feb 23, 2008
    Messages:
    3
    Likes Received:
    0
    Sorry, Dragos - I meant I was wondering if I could use the same technique in Blender. I use Linux, and Sketchup hasn't been released for it yet (although I may be able to use it under Wine). I've been playing with Blender on and off for years.
