Bridge suggestion needed

Discussion in 'Scratchin' & Bashin'' started by screwysquirrel, Sep 7, 2003.

  1. Joepomp

    Joepomp Member

    Joined:
    Dec 29, 2002
    Messages:
    146
    Likes Received:
    0
    Side # 2

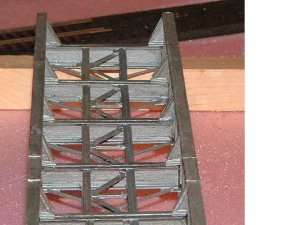

    Here is side #2 this is a 70' through plate girder bridge.
    I usde Modle RR Bridges & Trestles as a referance. I drew the parts in Auto Cad to full scale then printed then at 1/87 for HO.
    I am starting on the flooring next.
  2. Joepomp

    Joepomp Member

    Joined:
    Dec 29, 2002
    Messages:
    146
    Likes Received:
    0
    Missing pic?

    :mad:
    Ill try to attach the PIc again!:eek: :mad: :eek: :confused:

    Attached Files:

  3. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Nice job Joe.
    I like your bridge and the method used to build it.
  4. cidchase

    cidchase Active Member

    Joined:
    May 15, 2002
    Messages:
    1,640
    Likes Received:
    0
    Hi ss,
    I believe that Ray has the right idea for making a "curved bridge"
    You must use a straight section wide enough to support the curved track. If using multiple curved sections joined at an angle, my understanding is that you must support each joint with a pier, bent, or buttress. See Gary Pfeil's pix for example. Otherwise the curvature and weight cause a twisting force or moment to be applied to the abutment attachments. This contributes to a loss of structural integrity, possibly resulting in the well-known LUDIR syndrome.*:mad:

    Of course, if you don't expect a visit from the Proto Police, just build it however u think looks good (and holds up your heaviest loco)!! :D :D

    *locomotive upside down in ravine
  5. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    No coincidence that it rhymes with "oh dear"?! That's another entry for the "Gaugespeak" dictionary I think!

    Andrew
  6. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    Well, my curved bridge is just 1 'segment' long with both ends already supported, the 'bridge' needs to be for show only.
  7. Joepomp

    Joepomp Member

    Joined:
    Dec 29, 2002
    Messages:
    146
    Likes Received:
    0
    The bridge with new camera

    Santa came early. Here is a better picture of the bridge I built from carboard and Plastruct angles.
    :wave:
  8. Joepomp

    Joepomp Member

    Joined:
    Dec 29, 2002
    Messages:
    146
    Likes Received:
    0
    Again!

    Ill try again.:oops:

    Attached Files:

  9. Chris333

    Chris333 Member

    Joined:
    Jul 29, 2003
    Messages:
    54
    Likes Received:
    0

    Attached Files:

  10. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0
    Proto Practice

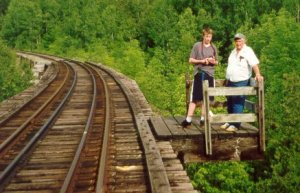

    Here is how the CP handled the problem Thats my Grandson and I on the curve

    Attached Files:

  11. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0

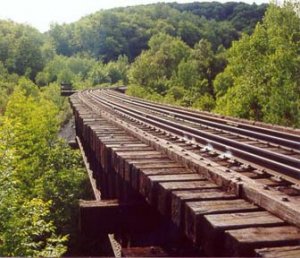

    Another shot

    Attached Files:

  12. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0
    From below

    Attached Files:
