Bridge pics wanted...Please :-)

Discussion in 'Scratchin' & Bashin'' started by aartwmich, Feb 4, 2003.

  1. aartwmich

    aartwmich Member

    Joined:
    Nov 30, 2002
    Messages:
    409
    Likes Received:
    0
    Hiya folks,

    If anyone has any bridge pics from thier layouts that they could easily find and post in this thread, I would greatly appreciate it. I'm going blind scrolling thru threads after searching the forum for 'bridge'...lol


    Any kind of bridge will do, any kind at all. Maybe this thread could become the 'bridge library' for future searchers.

    Thanks in advance to all who participate! :)
  2. kettlestack

    kettlestack Member

    Joined:
    Jan 18, 2002
    Messages:
    898
    Likes Received:
    0

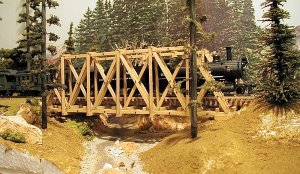

    Here's my (HO) scratchbuilt Warren Truss bridge.

    Errol

    Attached Files:

  3. scoobyloven

    scoobyloven Member

    Joined:
    Jan 13, 2002
    Messages:
    317
    Likes Received:
    0

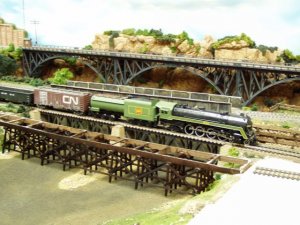

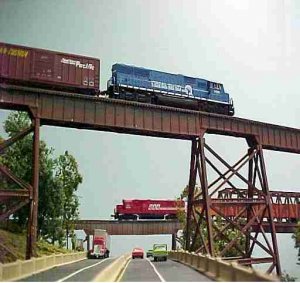

    here is a shot of two of my bridges the span a total of 30 inches

    Attached Files:

  4. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Here's my scratchbuilt trestle bridge.

    [​IMG]

    Shamus[​IMG]
    [​IMG]
  5. rockislandmike

    rockislandmike Active Member

    Joined:
    Nov 6, 2001
    Messages:
    1,290
    Likes Received:
    0
    Scoob, I still think that's one of my fave shots ever on The Gauge.......

    I had a closer one of the Shane & Bailey, but it got lost in the most recent website revision . . . . .

    [​IMG]
  6. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0

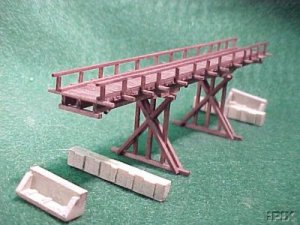

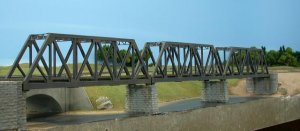

    Here's another HO bridge.
    Marty

    Attached Files:

  7. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

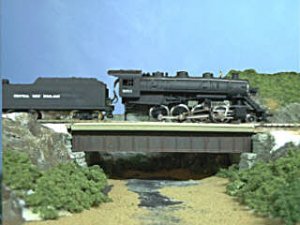

    This is a picture of the only bridge on my layout(so far), its a plate girder with a ballasted deck.
    Micro-Engineering makes it, if thats any help.

    Attached Files:

  8. alex_mrrkb

    alex_mrrkb Member

    Joined:
    Nov 13, 2002
    Messages:
    89
    Likes Received:
    0

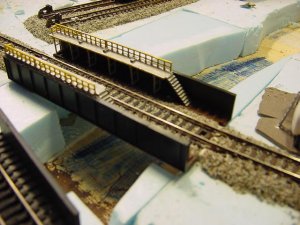

    And here's an N scale plate girder made by Atlas, kitbashed to become a "diesel service" bridge :)
  9. alex_mrrkb

    alex_mrrkb Member

    Joined:
    Nov 13, 2002
    Messages:
    89
    Likes Received:
    0
    Sorry, forgot to attach the file :)

    Attached Files:

  10. YakkoWarner

    YakkoWarner Member

    Joined:
    Mar 11, 2001
    Messages:
    311
    Likes Received:
    0

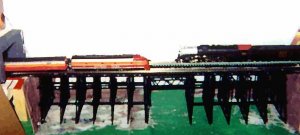

    Here's one:

    Attached Files:

  11. aartwmich

    aartwmich Member

    Joined:
    Nov 30, 2002
    Messages:
    409
    Likes Received:
    0
    :eek: :eek: WOW :eek: :eek:

    Thank you, thank you everyone!! What a great response so far, I think we may just have a 'bridge library' WELL underway here!

    My brains running full speed with ideas now! Thanks again and come on the rest of you..."put up your bridge pics!!"
  12. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,221
    Likes Received:
    0
    aartwmich,

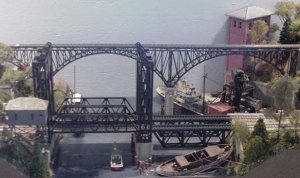

    Here is a pair of vertical lift bridges, a pair of deck truss bridges, and a steel arch bridge.

    Attached Files:

  13. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    Here is my trestle. Not very good photo because of cheap camara.

    Attached Files:

  14. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

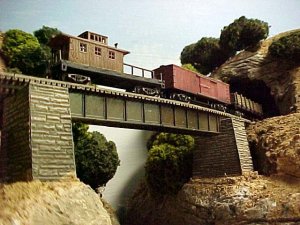

    Here's Another One (N Scale)

    I cut the plate girders off of one of those little Atlas bridges, glued them to a piece of flex-track, added gaurdf timbers & stringers made from strip styrene, & made the masonary piers from sheet styrene, covered with H&R stone sheet. I also glued an HO( box girder between the plate girders to give it a "bottom", for those "prying eyes"...:D

    Attached Files:

  15. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    Those are some great pics! Wonderful work everybody!!! I'd love to see along tain pass through those three bridge Marty! Terrific work, you scratchbuilders!!

    Pete, would you be willing to take a few more shots of the vertical lift bridges from different angles? Did you kitbash this structure?
    Ralph
  16. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,221
    Likes Received:
    0
    Ralph,
    Each vertical lift is:
    1- Atlas through truss bridge.
    4- Atlas HO pier girders
    8- Atlas N pier girders
    8- Grandt line 43" cable sheaves ( for the lift)
    2- Virnex industries pumps ( lift motors)
    2- pieces balsa block ( counterweights)
    several lengths of Plastruc "I" beam
    some scrap styrene sheet
    about 8' of 00 ("two ought") deknatel surgical silk ( lift cables )
    about a pound and a half of inventive imagination, and a whole lot of gleeful hacking with a razor saw!
    Pete
  17. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    Thanks for the parts list Pete! I might make one for a road that goes off the layout over a river...Actually I'll only be modeling one half of it since its close to the layout edge. Thanks for the inspiration!
    Ralph
  18. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0

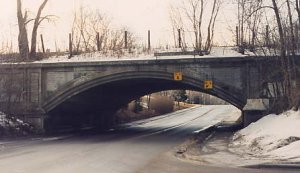

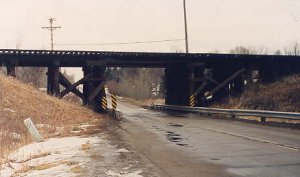

    Here's a couple of prototype bridges:

    Attached Files:

  19. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    and another...

    Attached Files:

  20. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Try these.

    Attached Files:
