Bridge pics for Trucklover

Discussion in 'Getting Started' started by Gary S., Sep 19, 2007.

  1. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0

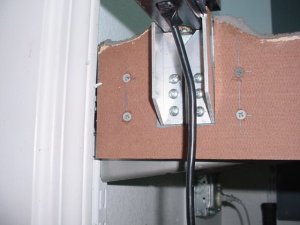

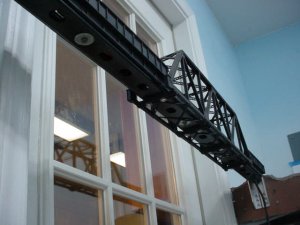

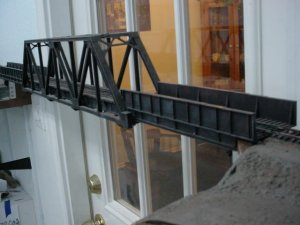

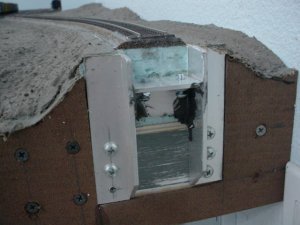

    Here are some shots of the removable bridge. I'll build some abutments to cover the aluminum support brackets.

    Attached Files:

  2. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0

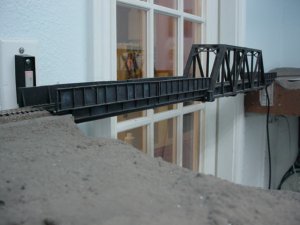

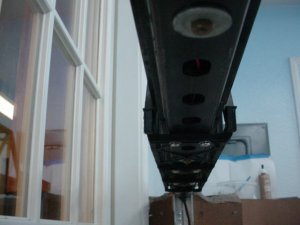

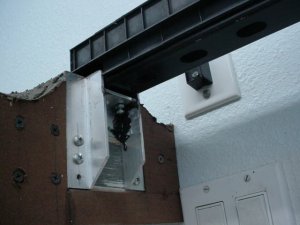

    some more

    Attached Files:

  3. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    WOW thanks Gary!!! Awesome pics.

    That looks fairly easy to build and it also looks great!! Mine will span about a 5' gap.

    Thanks again Gary, Ill for sure be coming back to you and this thread if and when I do my bridge for my layout :mrgreen: :mrgreen: :thumb:
  4. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    7,260
    Likes Received:
    0
    Having buily 2 in G - That's great!!!! I like the idea of someone seeing a train go by from the other side of the door too.. :D :D
  5. nolatron

    nolatron Member

    Joined:
    Nov 17, 2004
    Messages:
    750
    Likes Received:
    0
    Looks awesome. If I decide to continue with my "wrap around" plans for the layout, I'll need to build something similar to span a double door entry :)

    My only problem is the doors swing into the office.:razz:
  6. jbaakko

    jbaakko Active Member

    Joined:
    Jun 25, 2006
    Messages:
    1,151
    Likes Received:
    0
    Now that is COOL! I might have to try that.
  7. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    One note: My layout is of the shelf type, with the shelves just sitting on the shelf brackets. There is a 90 degree corner to the left of the bridge, and it has about 1/4" of play - meaning that I can push the shelf back when putting the bridge in place, then I can wedge it up against the bridge when I'm running. This makes taking the bridge out quite easy too, but it is stable when I'm running trains.

    The shelf that I move is 27 feet long, so the 1/4" is very little movement when compared to the radius.
