Branchline Rotary Plow Part 1

Discussion in 'Scratchin' & Bashin'' started by MasonJar, Mar 24, 2005.

  1. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0
    I was inspired by the work of Bob Boudreau (Fundy Northern) and a drawing of an 1880s UP rotary plow to scratch/bash this version for my own layout.

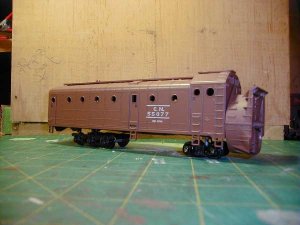

    Here we see the original Athearn CN rotary plow - as Bob said - far too big for the needs of a little branch line. All we will keep is the rotating blades/housing, and the underframe.

    Attached Files:

  2. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0

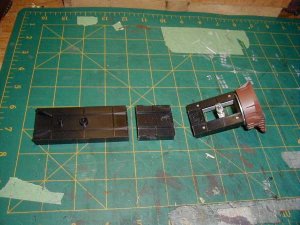

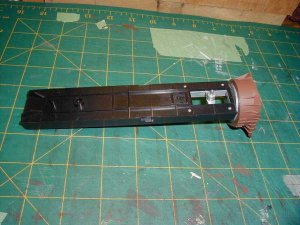

    The next step is to shorten the underframe - I cut off about 10 feet. The cuts are between any "essential" parts to minimize the amount of rework required. In the third photo, you can see the sprue parts used to strengthen the joint.

    Attached Files:

  3. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0

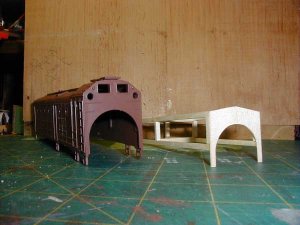

    I then turned back to the body... I used the front of the exisiting body to create a front for my wood body. I decided on a peaked roof, and used 1/8 scribed siding to cover the basswood frame.

    Attached Files:

  4. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0

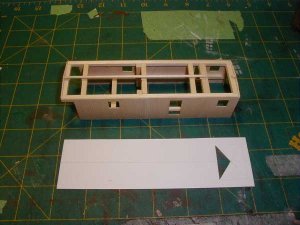

    Here you see the body sheathed in scribed siding, and the roof with a cutout for a cupola partly completed.

    Attached Files:

  5. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0

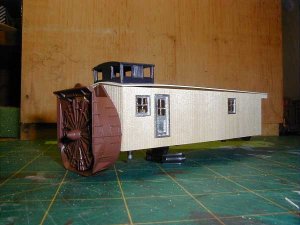

    This photo shows all the major parts test fitted and ready for final assembly and paint.

    The cupola is a spare part from a boxcab diesel track cleaner. The roof is styrene, and the white metal doors and windows are from a Jordan wood caboose.

    Next up... roofing, assembly, and paint!

    Attached Files:

  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    That's a neat bash job Andrew. I have been watching this thread and am enjoying the "how to"
  7. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    Excellent work Andrew.

    Hmm, when I get a little farther along with my layout, this is definately going to be on my "To Do" list.

    Thanks.
  8. Glen Haasdyk

    Glen Haasdyk Active Member

    Joined:
    Feb 3, 2004
    Messages:
    1,314
    Likes Received:
    0
    Great Job andrew, looks like my sub will be needing one!
