BN #2076 gets a new primemover

Discussion in 'N / Z Scale Model Trains' started by Ray Marinaccio, Aug 23, 2003.

  1. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    BN #2076 (a Model Power RSD-12) is in the shop for a primemover (motor) upgrade.
    I came across this unfinished project at the bottom of a box of junk.

    Attached Files:

  2. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

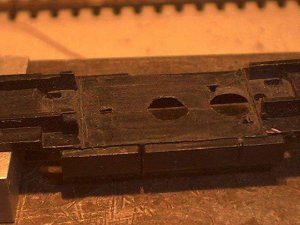

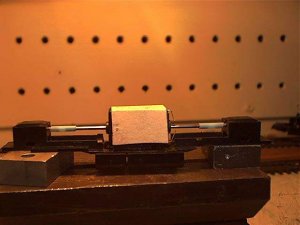

    After repairing the motor I removed enough of the frame to accommidate the motor, plus .030" for the mount.

    Attached Files:

  3. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

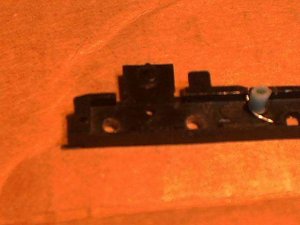

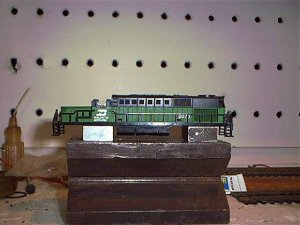

    Silicone gasket sealer was applied to the motor and frame and held in alignment with small peices of a Q-tip on the shafts. A peice of cardstock was used as a shim and the body installed to insure proper positioning of the motor. It was then set aside to dry overnight.

    Attached Files:

  4. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    The next day I removed the body, cut the Q-tips and removed the worm assemblies.

    Attached Files:

  5. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

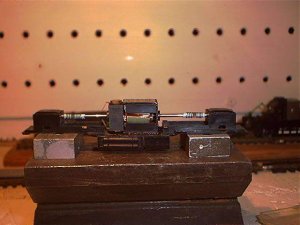

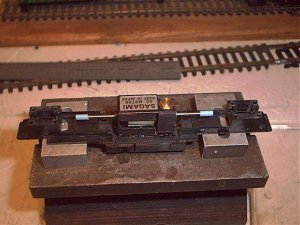

    I then fabricated flexible couplings from an old spring and a Q-tip. The springs were cut to size and the ends bent inward. The peices of Q-tip have a small hole drilled for the ends of the springs to seat in.
    Lube the worm bearings and install the worm assemblies and couplings.
    The chassis is now ready for a set of trucks.

    Attached Files:

  6. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

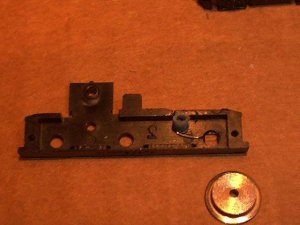

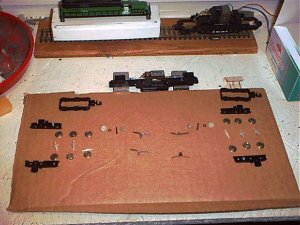

    I borrowed a set of trucks from my Rock Island Unit and dissassembled them for cleaning.

    Attached Files:

  7. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    The inboard axle bearings are oval shaped so that the weight is transfered to the geared axles. The spring applies LIGHT downward preasure to improve electrical pickup.

    Attached Files:

  8. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    The total axle to bearing clearence was .012" , Which seamed a little to sloppy to me. Sleeves were installed to bring this down to .004" total clearence.

    Attached Files:

  9. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    The traction tires were replaced, resized and trued on the lathe.
    The trucks were then lubed and reassembled.
    Note that the wheels with the tires are on the center axle.

    Attached Files:

  10. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    I placed the trucks on a peice of track snd pushed them back and forth with the 0-5-0 to seat the bearings.
    Lube the worm and reduction gear and install the trucks.

    Attached Files:

  11. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

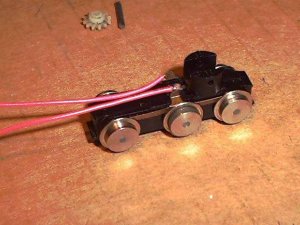

    Wire the motor (I also installed diodes for directional lighting). Then install the weights.

    The bottom weight had to be glued in (due to the removal of it's mount during the milling of the frame).

    Attached Files:

  12. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

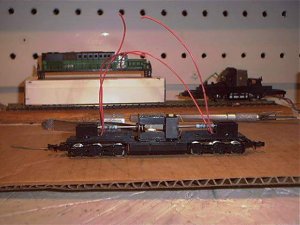

    I installed th body and took it out for a test run.
    It was a little tight at first but loosened up after a few minutes of running.
    I'm pretty impressed with it concidering it doesn't have flywheels and has the stock weights

    Attached Files:

  13. garyn

    garyn Member

    Joined:
    Jul 24, 2003
    Messages:
    37
    Likes Received:
    0
    Good job Ray

    Another option for shaft coupling is the flexible fuel hose for R/C gas models. I used that for a couple remotor jobs.
  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks for this interesting "how to" Ray . Nicely done.
  15. SD90

    SD90 Active Member

    Joined:
    May 23, 2003
    Messages:
    1,161
    Likes Received:
    0
    There sure is lots of small parts that go into a locomotive!
  16. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,221
    Likes Received:
    0
    Ray,
    Nice rebuild ! I'll bet that loco runs much better now!
    Pete
  17. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Yes, SD90, lots of little tiny parts to chase all over the floor, for a while there I thought I would be better of working on the floor.
    Thanks Pete. It is quite an improvment over the RI unit I partsed out. It runs better every time I run it. Those bearings must be breaking in.
    I had it MUed with my son's L/L GP38-2 with no problems.
    Now all I need is a cab roof and hornsand the parts to rebuild the RI unit. I'd like to find a hi hood version to rebuild and paint for the PC. May need to bash one.
