  1. JT Fox

    JT Fox Member

    Joined:
    Jan 28, 2008
    Messages:
    172
    Likes Received:
    0
    Thanks Jaybats.

    Time to go away and practice some more.

    Cheers JTF
  2. JT Fox

    JT Fox Member

    Joined:
    Jan 28, 2008
    Messages:
    172
    Likes Received:
    0
    Jaybats, I was wondering what is the best scale to work in?

    I've been working on a background "img" of a plane at a scale of 1/48. When I load it up the program runs a bit sluggish and I've still got some more views to add. The tail alone is almost the same size as the mesh.

    Would I be better off working several background images and loading them when I needed them or re-scale the image to 1/72 or smaller and then re-scale the 3d object back up at the end?

    Cheers JTF
  3. Jaybats

    Jaybats Member

    Joined:
    Mar 26, 2006
    Messages:
    216
    Likes Received:
    1
    JTF: Actually I don't think it would matter what scale your background images are in, what makes the program sluggish is the size of graphic file in relation to your computer's memory & processor speed. If you just run it thru your graphics program to proportionally shrink either/or both size and resolution down as much as possible without losing too much detail you should be fine (safest bet is an image of less than 100KB size). Also, you don't need to pay attention to the scale of the model while within Meta. You can take care of that when you run the model thru pepakura, by printing it out to be assembled at the desired scale. Your model can be printed out in any scale you wish.
  4. JT Fox

    JT Fox Member

    Joined:
    Jan 28, 2008
    Messages:
    172
    Likes Received:
    0
    I've re-scaled the drawing to 1/72. I have top, bottom, front, left side, right side and cross section in one jpeg. File size 1.39MB. I have an old PC but all seems to run OK on the above numbers.

    I'll cut up my old 1/48 scale version into exterior parts when it come to getting detail like air vents etc. When they're built in meta I'll scale them down and add them to the 1/72 scale body.

    This should meet the desire for detail without the need to design a 1/1 model in paper.sign1

    Cheers JTF
  5. yaniv

    yaniv Active Member

    Joined:
    Nov 6, 2004
    Messages:
    1,087
    Likes Received:
    0
    i just start to read this and i am now on page 2
    thank u for shering with us your knowleg and time

    i tray to work on rhino more than 2 years
    the work on this program is hard and the progres is realy slow
    looks like u found a perfect way for the new modelars to make ther own models

    thanks again :)
  6. yaniv

    yaniv Active Member

    Joined:
    Nov 6, 2004
    Messages:
    1,087
    Likes Received:
    0
    oky

    for now i finsh section 2 (the first pod) but i have somthing i like to ask

    way my pod looks square and if i look on the fromt side its looks like octagon and not like in your pic rounded
  7. Jaybats

    Jaybats Member

    Joined:
    Mar 26, 2006
    Messages:
    216
    Likes Received:
    1
    i think you missed a step, where you change the number of sides from "8" to "14"
  8. yaniv

    yaniv Active Member

    Joined:
    Nov 6, 2004
    Messages:
    1,087
    Likes Received:
    0

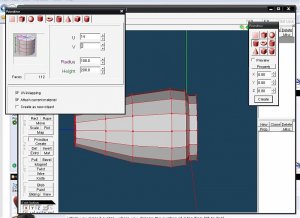

    this what i have made ...

    Attached Files:

    • 1.jpg
      File size:
      127.5 KB
      Views:
      19
  9. Jaybats

    Jaybats Member

    Joined:
    Mar 26, 2006
    Messages:
    216
    Likes Received:
    1
    looks okay to me!

    maybe you are just referring to the option of clicking on "View", then clicking "Smooth shading" which changes the slightly shading from the light source and makes it more natural-looking. personally i switch between smooth shading checked and unchecked (and with the lines off) to see how the model would look when assembled in card. Smooth shading "on" helps with inspecting the textures, while smooth shading "off" helps clarify the fold lines.
  10. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    A Fabulous Series!

    Jaybats:

    I am following this with great interest!

    Jim
  11. yaniv

    yaniv Active Member

    Joined:
    Nov 6, 2004
    Messages:
    1,087
    Likes Received:
    0
    thank u jay :) its fix my problem :")

    today we kip work on it i am on stage 3 :)
  12. yaniv

    yaniv Active Member

    Joined:
    Nov 6, 2004
    Messages:
    1,087
    Likes Received:
    0
    hi

    well i start work on part 3 but i have some thing i need to ask
    1.how i put the first box directly taching the pod?
    2.how i can make thye front box and the sides box in the some age directly
    ?

    thanks :)
  13. Jaybats

    Jaybats Member

    Joined:
    Mar 26, 2006
    Messages:
    216
    Likes Received:
    1
    depress the Move button after you create the box and before clicking on anything else

    one very long and thin rectangle with many sections in front, then move each section around the pod
  14. eric_son

    eric_son Member

    Joined:
    Oct 20, 2005
    Messages:
    253
    Likes Received:
    0
    Hi Jaybat,
    Thanks for the great tutorial!
    I'm itching to try the stuff I've learned.

    Cheers!

    Eric
  15. Billy Leliveld

    Billy Leliveld Member

    Joined:
    Feb 26, 2006
    Messages:
    786
    Likes Received:
    1
    Just what I always wanted...Is Santa family, btw? :mrgreen::thumb:
    Cheers, BIllyaussie
  16. yaniv

    yaniv Active Member

    Joined:
    Nov 6, 2004
    Messages:
    1,087
    Likes Received:
    0
    billy its time for u to make some X plan :)
  17. Billy Leliveld

    Billy Leliveld Member

    Joined:
    Feb 26, 2006
    Messages:
    786
    Likes Received:
    1
    I'm learning, I'm learning!!!sign1
    (still have to finish my "old-school" X-2 that is suffering from a severe designers-block hamrhamrhamr)
    Cheers, Billy
    aussie
  18. yaniv

    yaniv Active Member

    Joined:
    Nov 6, 2004
    Messages:
    1,087
    Likes Received:
    0
    need some help :)?
  19. Nothing

    Nothing Longtime Member

    Joined:
    Sep 13, 2006
    Messages:
    1,992
    Likes Received:
    2
    jay

    im comfortable modeling in lightwave so going to a new platform can be confusing and diorientating. after 5 min of browsing this tut and tinkering in met it is all becoming very clear! look forward to the rest especially the uv mapping part. cant wait till its in pdf. thank you very much for doing this!
  20. eric_son

    eric_son Member

    Joined:
    Oct 20, 2005
    Messages:
    253
    Likes Received:
    0
    Hi Jay,

    I just bought a Pepakura password, and have just activated my copy of Pepakura. Am now playing with MetaLE.

    Thanks again for the tutorial.

    Eric
