Hello Friends,

Every two years take place in germany the "Spacedays", a pure SF exhibition. Small, but fine.
http://www.paperaviation.de/Spacedays 2008.pdf


The visitors can receive always a free printed cardmodel and I support the exhibition with the construction of the model. We had already the Star Trek Workbee and the Puddle Jumper from Stargate Atlantis. Now we visit the Battlestar Galaxy. We decided us for the colonial shuttle from the original series (TOS).


Attachments

  • Shuttle-Screenshot.jpg
    27.6 KB · Views: 40

Martin Saenger

New Member

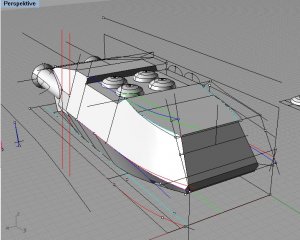

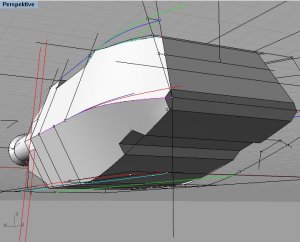

Greatest problem (like always) the lack of any kind of detailed plans. But I found a lot of pictures from a good resin model. The pictures were the basis for the shape of the shuttle.

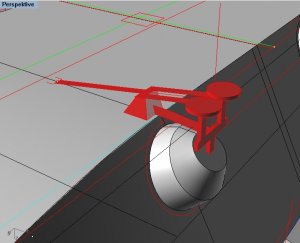

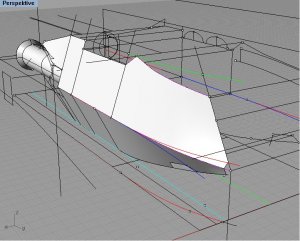

The 3D model developed again in Rhino.


Attachments

  • Entwurf1.jpg
    98.5 KB · Views: 25
  • Entwurf2.jpg
    63.4 KB · Views: 16

Martin Saenger

New Member

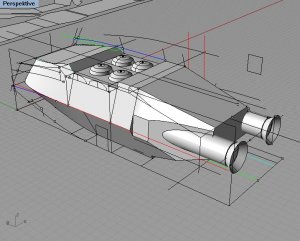

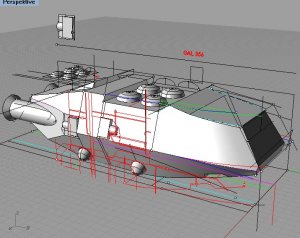

The model is in scale 1:120 and will have a length of approx. 23 cm.


Attachments

  • Entwurf3.jpg
    121.7 KB · Views: 10
  • Entwurf4.jpg
    127.2 KB · Views: 11

Martin Saenger

New Member

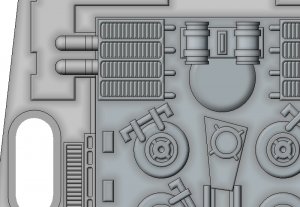

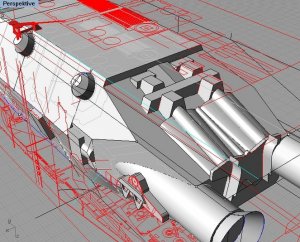

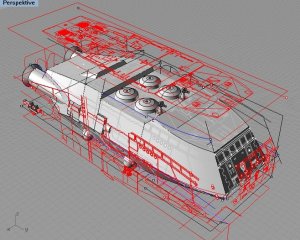

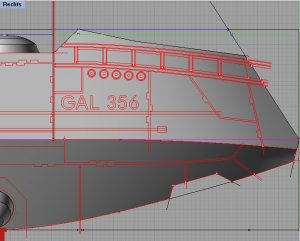

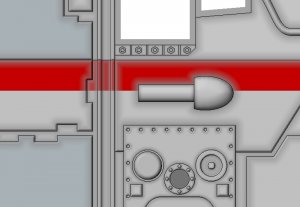

The quantity of surface details was overwhelming and a lot of work.


Attachments

  • Entwurf6.jpg
    122.5 KB · Views: 13
  • Entwurf8.jpg
    186.2 KB · Views: 12
  • Entwurf-13.jpg
    196.3 KB · Views: 10
  • Entwurf-12.jpg
    195.3 KB · Views: 14

Martin Saenger

New Member

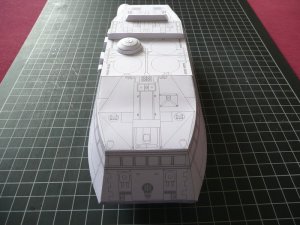

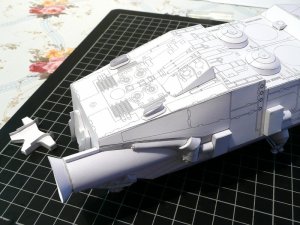

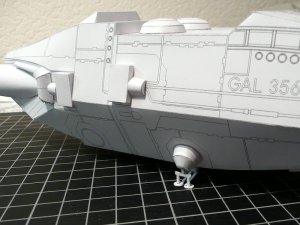

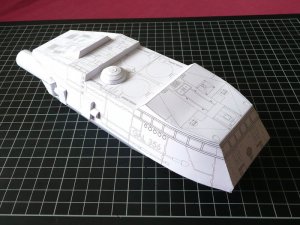

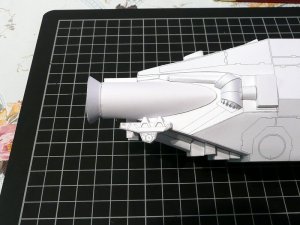

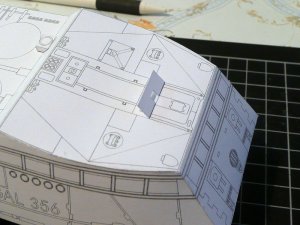

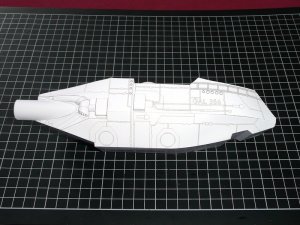

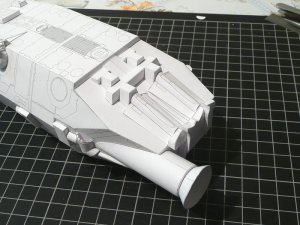

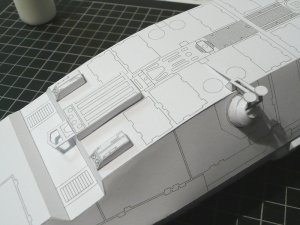

Some pictures of my unfinished test build.


Attachments

  • P1000182.jpg
    176.7 KB · Views: 16
  • P1000187.jpg
    182 KB · Views: 13
  • P1000201.jpg
    178 KB · Views: 9
  • P1000242.jpg
    175.2 KB · Views: 13

Martin Saenger

New Member
...


Attachments

  • P1000244.jpg
    163.4 KB · Views: 13
  • P1000249.jpg
    161.3 KB · Views: 12
  • P1000251.jpg
    185.4 KB · Views: 13
  • P1000263.jpg
    158.8 KB · Views: 12
  • P1000257.jpg
    182.7 KB · Views: 13

Martin Saenger

New Member

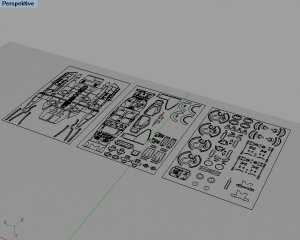

Contrary to the predecessors it is a very much detailed model. This times I have 3 x DIN A4 sides place for the model.

A Preview to the cover.


Attachments

  • Entwurf-11.jpg
    103.5 KB · Views: 15
  • Titelbild.jpg
    153.3 KB · Views: 17

Martin Saenger

New Member
A few examples of the paint job.

After the exhibition the model will be available free on my website.


Attachments

  • Farbe2.jpg
    121.7 KB · Views: 26
  • Textur1.jpg
    87.8 KB · Views: 16
  • Textur2.jpg
    167 KB · Views: 18

theo

Member
Hello Martin, I was following the progress on the shuttle and the Falcon from Rabe on Kartonbau.de.
Not that I'm a StarWars fan ore what ever, just like the Falcon (7000 pices and still not finished) and how he is building it!

Glad to see you here, can't wait to see it finished!:thumb:
