Barge to rail

Discussion in 'Scratchin' & Bashin'' started by Ralph, Jun 29, 2003.

  1. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    I've been working on an industry that transfers bulk commodities such as coal, sand, or aggregates from river barges to hoppers on a track along the shore. This structure is based on a kit I've seen in many model RR photographs. I think its originally a rock crusher. For my purposes it stores commodities until freight cars on a track behind it are ready to load.
    Ralph

    Attached Files:

  2. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0

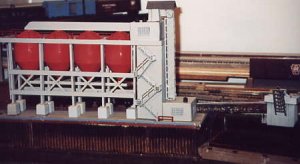

    Here's another shot. I made the cilos from metal chain link fence post caps. The rest is strip wood and assorted doo dads from my scrap box.

    Attached Files:

  3. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    Whoops!

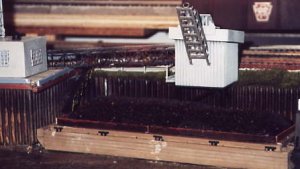

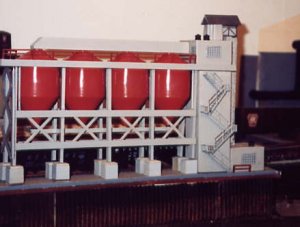

    That first picture is wrong. Here's what it was supposed to be.

    Attached Files:

  4. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0

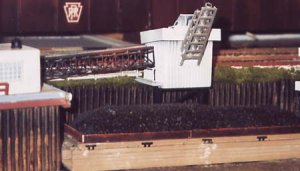

    I "imagineered" an unloader that is connected to the cilos via conveyors.

    Attached Files:

  5. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    The coal in the barge is a removeable "eoad". Its aquarium sand glued to a piece of florist foam carved to shape.
    Ralph

    Attached Files:

  6. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0
    Nice structure and an interesting industry for a layout
    nice work
  7. Lackawanna Jim

    Lackawanna Jim Member

    Joined:
    Nov 27, 2002
    Messages:
    55
    Likes Received:
    0
    Nice work, Ralph! I like your use of the fencepost caps. Great job... I'm a big fan of rail-marine ops...

    Jim :cool: :cool: :cool:
  8. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0
    Ralph:
    I like the look of it too.
    Suggestion for an alternate eoad: have one with some piles in it. I have some that were made from the "egg crate" type foam packing that computer boards (used to) come in. You get some that doesn't have too high bumps and cut along the side of the bumps to the dimensions of your barge (or hopper/gondola/...). Then add the aquarium sand.
  9. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    Great idea David! Thanks!
    Ralph
  10. Blake

    Blake Member

    Joined:
    Jul 19, 2002
    Messages:
    454
    Likes Received:
    0
    Very cool. The very thought reminds me of sitting atop of an old Erie Lackawanna covered hopper in the the middle of what was once the Lehigh Valley's Greenville NJ yards watching them unload gons of scrap metal into cargo ships bound for Japan back in the mid 80's. If you want some more ideas about that kind of operation, do a search on Cleveland rail operations on Lake Erie. They had tons of that sort of thing.
  11. UP_STEVE

    UP_STEVE Member

    Joined:
    Jun 21, 2003
    Messages:
    45
    Likes Received:
    0
    that looks great ralph! :D good work.
  12. Woodie

    Woodie Active Member

    Joined:
    Mar 23, 2001
    Messages:
    2,228
    Likes Received:
    0
    Ralph,

    What a novel thought for the tops of fence posts. :cool:

    I'll keep that one in mind, I think. :)
