Anticlimbers

Discussion in 'FAQs' started by rockislandmike, Feb 21, 2003.

  1. rockislandmike

    rockislandmike Active Member

    Joined:
    Nov 6, 2001
    Messages:
    1,288
    Likes Received:
    0
    Was reading an article about the Rock Island GP38-2's, and it mentioned anticlimbers and referred to how you could see the difference in the pics (cause some had them and some hadn't).

    I of course was dumbfounded. What the heck is an anticlimber, and what does it look like and where is it located ?????
  2. Hunkiedoo

    Hunkiedoo Member

    Joined:
    Dec 1, 2002
    Messages:
    34
    Likes Received:
    0
    Anticlimbers are a series of parallel horizontal steel ribs cast with or welded to the end of the carbody floor (actually rigidly fixed to the car frame. They are usually located just above the coupler & are quite easily seen on early streetcats & interurbans. [Interurban! you can answer better than I!]

    Their purpose was to lock into the anticlimbers of an opposing car, also so equipped, during a collision, so one car does not ride up onto the floor of the other & telescope through the car. A legitimate preoccupation in the days of wooden car bodies.
  3. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0

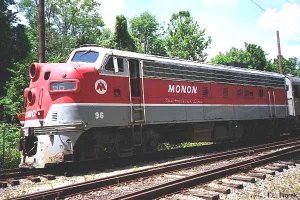

    Also the wagontop locomotives (like this EMD F-7) had anticlimbers on their noses. On this pic sunlight and shadows model clearly the ribs on the 'bumper' above the coupler, just like Hunkiedoo explained.

    Ron

    Attached Files:

  4. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    641
    Likes Received:
    0
    On the pic of the GP38-2's look for what appears to be extentions of the walkway in front of the nose. If it is a large anticlimber it will extend about 3-4 feet forward and if it is a small one, it should look like a small angeled peice extending only about 1 foot.
    They are supposed to keep one locomotive from climbing up onto another if they are involved in a head-on collision.

    Terry
  5. BDC

    BDC Member

    Joined:
    Sep 23, 2001
    Messages:
    338
    Likes Received:
    0

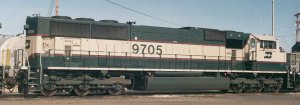

    Here's an illustration of what Terry talked about. This anticlimber is painted white (rear of the loco above the coupler) as part of BN's scheme, and is an example of a large anticlimber. Can't find a picture of a smaller one right now.

    Attached Files:
