animated accessory plans
- Thread starter vdegrazia
- Start date
Don't know of any off-hand, but you might try a search of www.walthers.com to see what might be available.
Andrew
Andrew
alexander
Member
IHC do them
http://www.ihc-hobby.com/cgi-bin/bsc.cgi?sn=S064409704G9P33808SU3971Q45438
http://www.ihc-hobby.com/cgi-bin/bsc.cgi?sn=90C8J4486C713308346T08579090DA
I've never personally seen them, but you might like to try it
http://www.ihc-hobby.com/cgi-bin/bsc.cgi?sn=S064409704G9P33808SU3971Q45438
http://www.ihc-hobby.com/cgi-bin/bsc.cgi?sn=90C8J4486C713308346T08579090DA
I've never personally seen them, but you might like to try it
Use your ingenuity
I am making an animated scene. I am making my own drive mechanism. I bought a motor that is already geared to 40 rpm. I made gears with a hole saw, use a bolt for an axle and lamp chain to connect the power. I cut a saw cut around the wooden wheel and used a diamond ball bit in my Dremel to carve the sockets for the chain. There has to be an idler arm to keep the chain from going slack on the out feed side of the drive wheel.
Not that hard to make. I can take power off the end drive wheel in a variety of ways.
TC :thumb:
I am making an animated scene. I am making my own drive mechanism. I bought a motor that is already geared to 40 rpm. I made gears with a hole saw, use a bolt for an axle and lamp chain to connect the power. I cut a saw cut around the wooden wheel and used a diamond ball bit in my Dremel to carve the sockets for the chain. There has to be an idler arm to keep the chain from going slack on the out feed side of the drive wheel.
Not that hard to make. I can take power off the end drive wheel in a variety of ways.
TC :thumb:
Attachments
We have an animated carnival on our club layout but I've never seen it operate. The member who built it is deceased and his wife donated it to the club. Anybody want to spend the winter in Montana and see if they can make it operational? It's only 9 degrees here tonight.
There is a place here called Princess Auto. They sell mostly farm equipment and accessories as well as trailer parts and welders and other tools and stuff. There is a big section where they sell off surplus items such as used motors of all sorts and other miscellaneous cra ...... er ....stuff.
You should look for a store that sells surplus stuff. Another good motor is one used to turn rotisseries on barbecues. You can get some battery operated ones cheap and might also find one at a second hand shop or yard sale.
By the way. I tried rubber bands with unsatisfactory results. The elastic would stretch and this would cause the final drive wheel to stall when the load caused by the mechanism increased (as in, changed directions from a pull to a push) I would think that there would be less stretch in an O ring so this problem would not arise.
Are you using idler wheels to keep tension on your belts? I have found that using an idler wheel is the best way to keep just the right tension on the drive belt/chain. I am not using bearings in my wheels, but if there is a lot of belt tension I would think a bearing would be necessary for reliable operation. I am using 1 1/2" and 2" bolts so that my wheels turn on the smooth shaft of the bolt instead of on the threads. (sort of a bearing, well, less friction anyway.)
With the chain I am using it is a good thing my motor turns so slow. I don't think it would work well for a high rpm motor. Your O ring belts would be perfect for higher speed orporation. You wold have to build a simple transmission. You can reduce speed quite rapidly going from the smallest pulley on the motor to a much larger pulley with a small pulley glued to the side that would then run a large pulley and so on until you get the rpm you need. (I suppose you already know that)

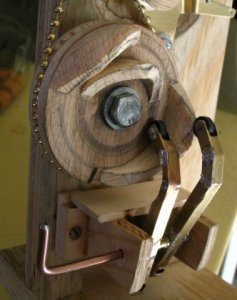

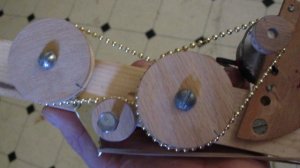

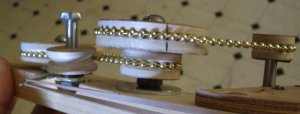

Anyway, I'm including a pic of the idler wheels on my current mechanism. Also a pic of a cam wheel that will operate stuff in my scene. The cam wheel turns clockwise. There are leavers on the end of the brass arms that you can't see in this pic. To see the thing in action in a short video, go to:
http://s82.photobucket.com/albums/j268/TrainClown/VODEOSTUFF/?action=view¤t=MVI_6645.flv
TC
You should look for a store that sells surplus stuff. Another good motor is one used to turn rotisseries on barbecues. You can get some battery operated ones cheap and might also find one at a second hand shop or yard sale.
By the way. I tried rubber bands with unsatisfactory results. The elastic would stretch and this would cause the final drive wheel to stall when the load caused by the mechanism increased (as in, changed directions from a pull to a push) I would think that there would be less stretch in an O ring so this problem would not arise.
Are you using idler wheels to keep tension on your belts? I have found that using an idler wheel is the best way to keep just the right tension on the drive belt/chain. I am not using bearings in my wheels, but if there is a lot of belt tension I would think a bearing would be necessary for reliable operation. I am using 1 1/2" and 2" bolts so that my wheels turn on the smooth shaft of the bolt instead of on the threads. (sort of a bearing, well, less friction anyway.)
With the chain I am using it is a good thing my motor turns so slow. I don't think it would work well for a high rpm motor. Your O ring belts would be perfect for higher speed orporation. You wold have to build a simple transmission. You can reduce speed quite rapidly going from the smallest pulley on the motor to a much larger pulley with a small pulley glued to the side that would then run a large pulley and so on until you get the rpm you need. (I suppose you already know that)
Anyway, I'm including a pic of the idler wheels on my current mechanism. Also a pic of a cam wheel that will operate stuff in my scene. The cam wheel turns clockwise. There are leavers on the end of the brass arms that you can't see in this pic. To see the thing in action in a short video, go to:
http://s82.photobucket.com/albums/j268/TrainClown/VODEOSTUFF/?action=view¤t=MVI_6645.flv
TC
Attachments
The motors used in shopping mall Christmas displays turn less than 10 rpm. I don't know who makes them, but a check with a mall office might turn up a source.
